Kyocera FS-1350DN Service Manual

2H4
2-1-15
2-1-9 Duplex/conveying section
The duplex/conveying section consists of conveying path which sends the paper sent from the paper exit section to the
paper feed/conveying section when duplex printing.

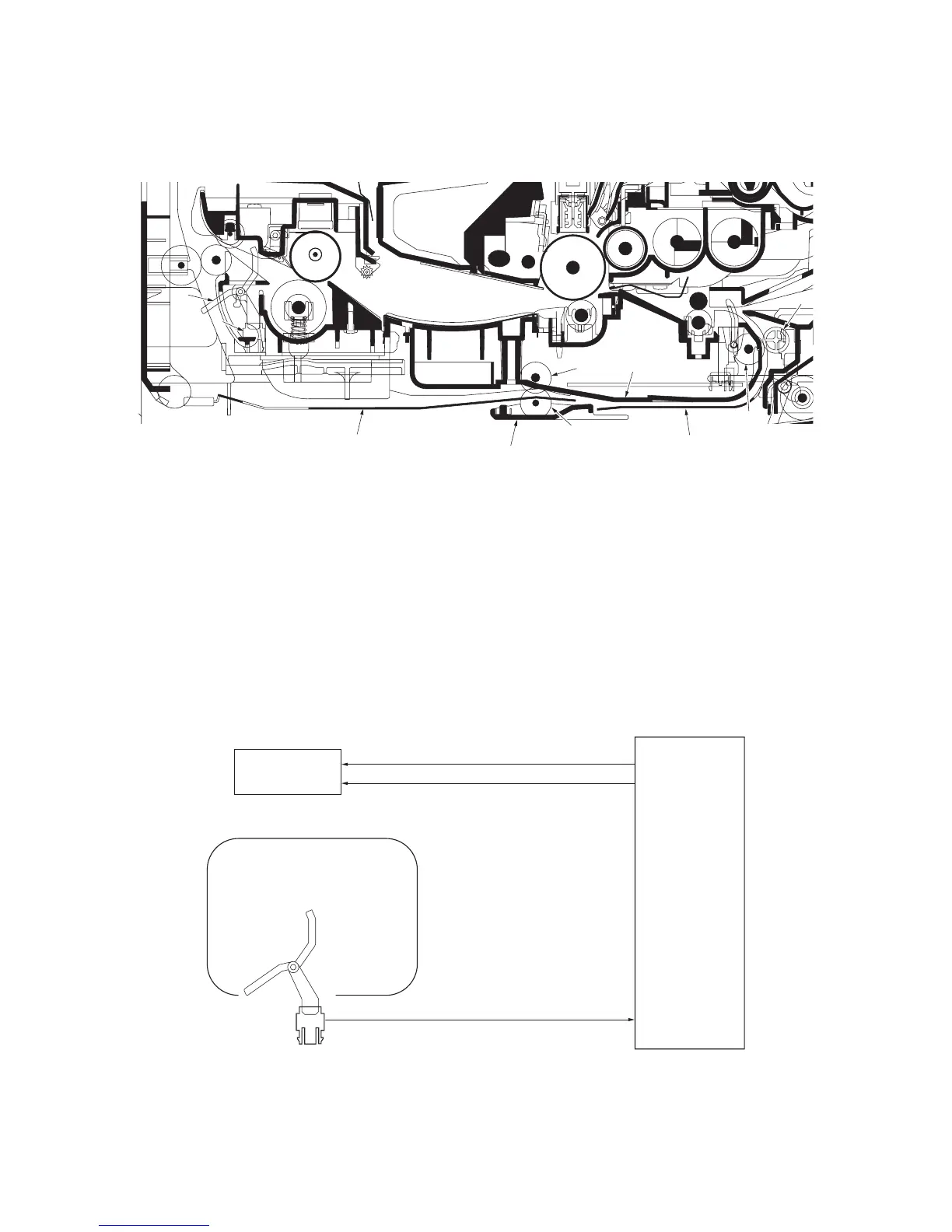

Figure 2-1-22 Duplex/conveying section
Figure 2-1-23 Duplex/paper conveying section block diagram
1
9
10
2
3
5
6
7
8
4
(1) DU cover B
(2) DU holder
(3) Middle pulley B
(4) DU roller
(5) DU cover A
(6) Lower base cover
(7) Feed roller
(8) Feed pulley
(9) Exit sensor
(10) Actuator (exit sensor)
EXITN
DUDR1
DUDR2
Fuser unit
Exit sensor
Duplex solenoid
Control PWB
YC333-3
YC343-1
YC343-3

Kyocera FS-1350DN Specifications

General

Color	No
Duplex printing	Yes
Print technology	Laser
Maximum resolution	1200 x 1200 DPI
Time to first page (black, normal)	6 s
Print speed (black, normal quality, A4/US Letter)	30 ppm
Processor model	PowerPC–440F5
Maximum internal memory	1152 MB
Sound power level (standby)	30 dB
Sound pressure level (printing)	54 dB
Power supply type	AC 220 - 240 V, 50/60 Hz
Capacity cartridge	7200 sheets
Standard media sizes	(105 x 148 - 216 x 297 mm)
Power consumption (active)	484 W
Compliance industry standards	TUV/GS, CE
Number of print cartridges	1
Total input capacity	250 sheets
Maximum input capacity	800 sheets
Maximum print size	216 x 356 mm
Non-ISO print media sizes	Folio (media size), Letter (media size)
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A4
Power consumption (standby)	12 W
Power consumption (PowerSave)	7.1 W
Display	LCD

Weight and Dimensions

Dimensions (WxDxH)	375 x 393 x 267 mm
