Kyocera FS-1350DN Service Manual

2H4
2-1-9
2-1-5 Transfer/separation section
The transfer/separation section consists of the transfer roller, discharger brush and paper chute guide. A high voltage gen-
erated by the high voltage PWB is applied to the transfer roller for transfer charging. Paper after transfer is separated from
the drum.

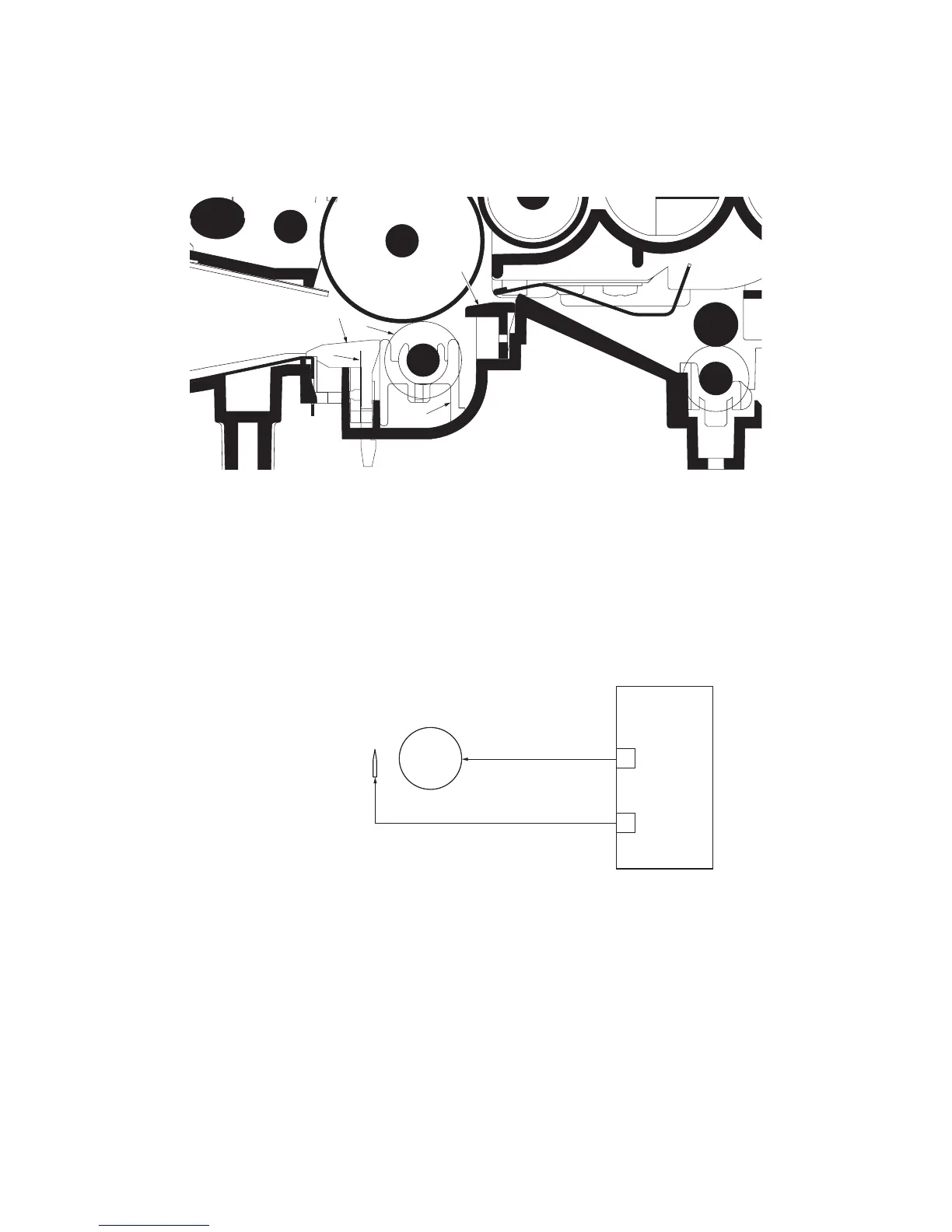

Figure 2-1-14 Transfer/separation section
Figure 2-1-15 Transfer/separation section block diagram
1
4
2
3
5
(1) Transfer roller
(2) Transfer bushes
(3) Discharger brush
(4) DC brush holder
(5) Paper chute guide
Transfer
roller
High voltage
PWB
Transfer bias
Discharger
brush
T
S
Separation bias

Kyocera FS-1350DN Specifications

General

Color	No
Duplex printing	Yes
Print technology	Laser
Maximum resolution	1200 x 1200 DPI
Time to first page (black, normal)	6 s
Print speed (black, normal quality, A4/US Letter)	30 ppm
Processor model	PowerPC–440F5
Maximum internal memory	1152 MB
Sound power level (standby)	30 dB
Sound pressure level (printing)	54 dB
Power supply type	AC 220 - 240 V, 50/60 Hz
Capacity cartridge	7200 sheets
Standard media sizes	(105 x 148 - 216 x 297 mm)
Power consumption (active)	484 W
Compliance industry standards	TUV/GS, CE
Number of print cartridges	1
Total input capacity	250 sheets
Maximum input capacity	800 sheets
Maximum print size	216 x 356 mm
Non-ISO print media sizes	Folio (media size), Letter (media size)
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A4
Power consumption (standby)	12 W
Power consumption (PowerSave)	7.1 W
Display	LCD

Weight and Dimensions

Dimensions (WxDxH)	375 x 393 x 267 mm
