Kyocera FS-1350DN Service Manual

2H4
1-2-5
1-2-4 Installing the memory card (optional)
<Procedure>
1. Turn off printer power switch.
Caution: Do not insert or remove memory
card while printer power is on.
Doing so may cause damage to the printer
and the memory card.
2. Open the rear cover.
3. Remove two screws and then remove the
optional interface slot cover.

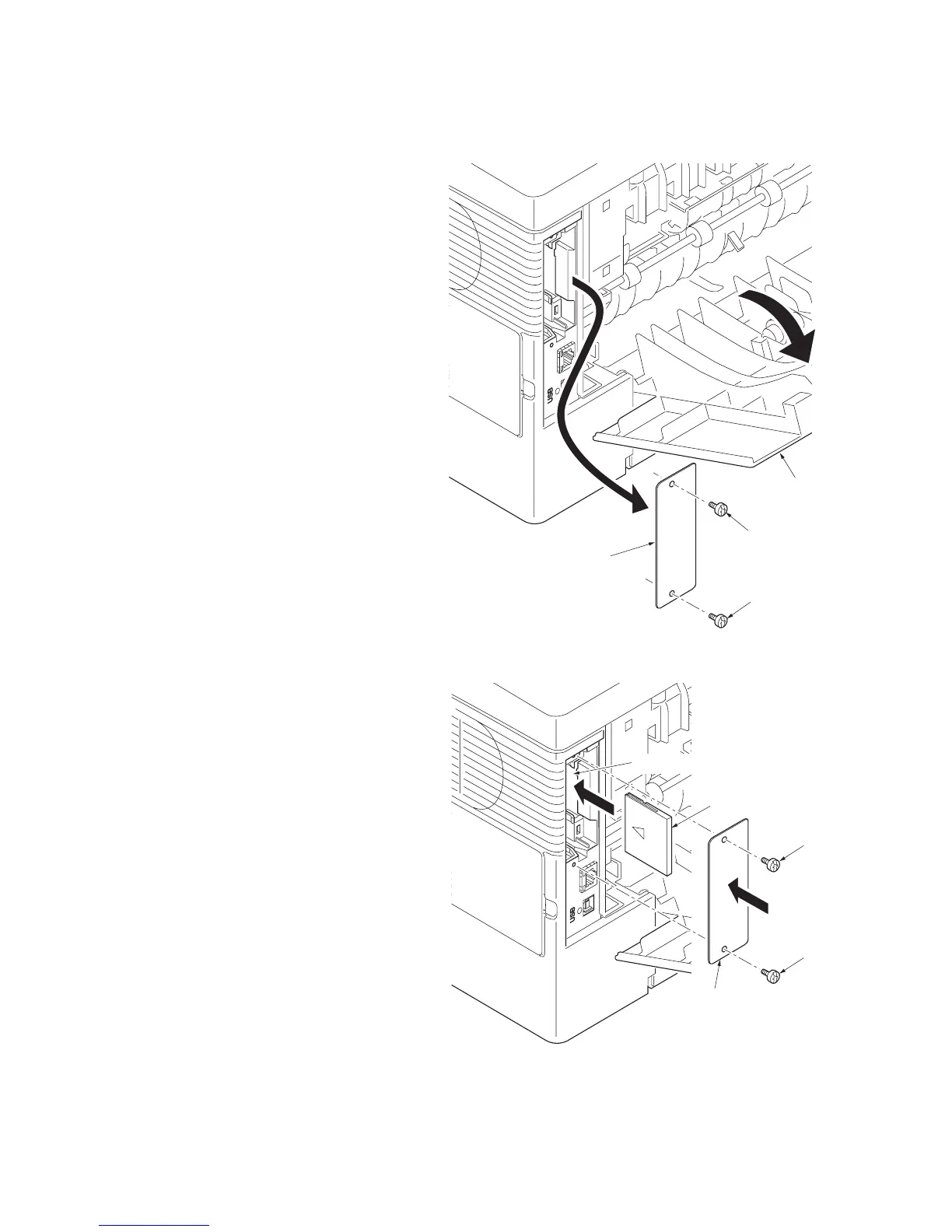

Figure 1-2-6
4. Insert the memory card into the memory
card slot. Push it in all the way.
5. Secure the optional interface slot cover by
using two screws.
6. Close the rear cover.
7. Format the memory card before use.
Figure 1-2-7
Optional interface
slot cover
Screw
Screw
Rear cove
r
Optional interface
slot cover
Screw
Screw
Memory card slot
Memory card

Kyocera FS-1350DN Specifications

General

Color	No
Duplex printing	Yes
Print technology	Laser
Maximum resolution	1200 x 1200 DPI
Time to first page (black, normal)	6 s
Print speed (black, normal quality, A4/US Letter)	30 ppm
Processor model	PowerPC–440F5
Maximum internal memory	1152 MB
Sound power level (standby)	30 dB
Sound pressure level (printing)	54 dB
Power supply type	AC 220 - 240 V, 50/60 Hz
Capacity cartridge	7200 sheets
Standard media sizes	(105 x 148 - 216 x 297 mm)
Power consumption (active)	484 W
Compliance industry standards	TUV/GS, CE
Number of print cartridges	1
Total input capacity	250 sheets
Maximum input capacity	800 sheets
Maximum print size	216 x 356 mm
Non-ISO print media sizes	Folio (media size), Letter (media size)
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A4
Power consumption (standby)	12 W
Power consumption (PowerSave)	7.1 W
Display	LCD

Weight and Dimensions

Dimensions (WxDxH)	375 x 393 x 267 mm
