Laser 5091 Code Reader User’s Guide
28
Laser 5091 Code Reader User’s Guide
29

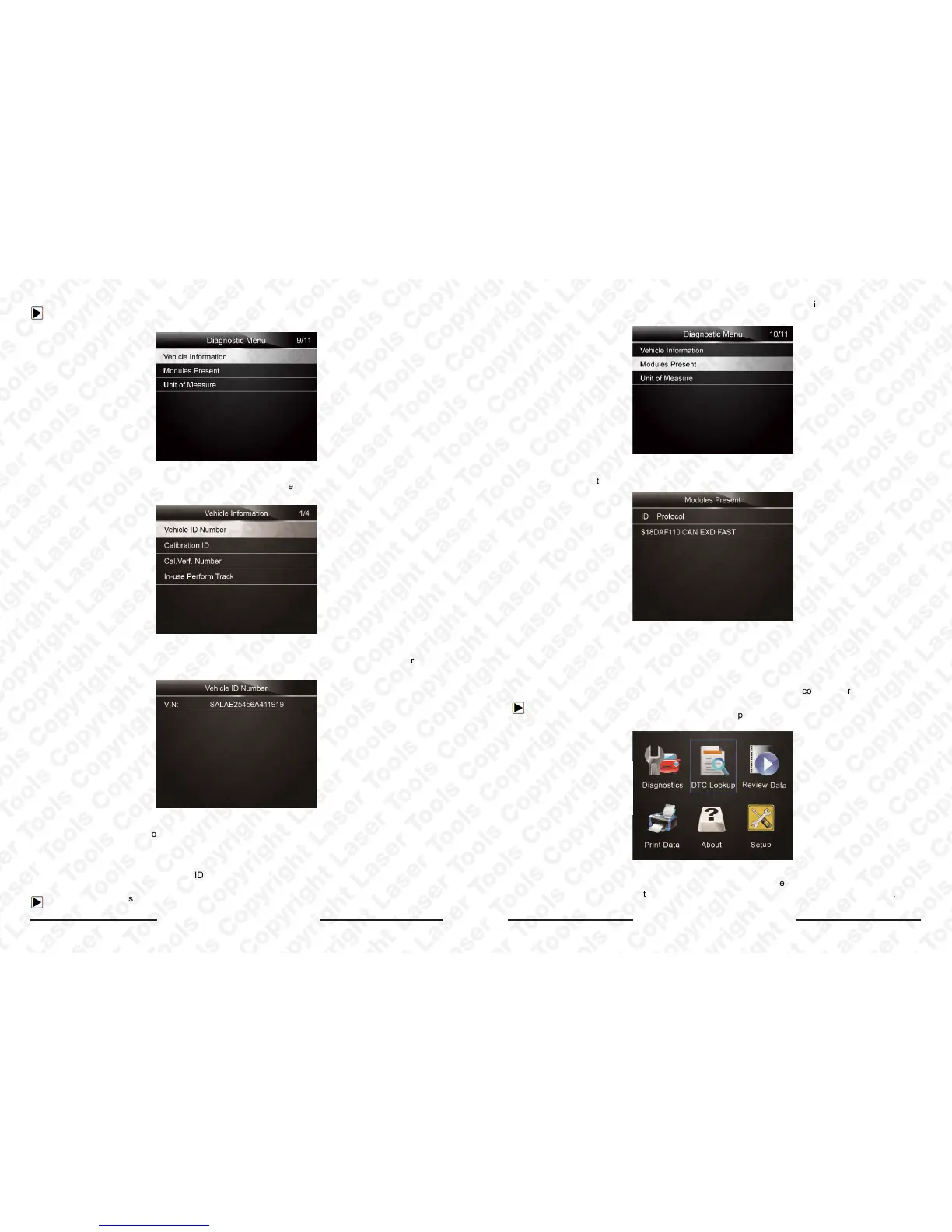

To request vehicle information:
1. Use the UP/DOWN key to highlight Vehicle Info. from Diagnostic Menu and press the ENTER
key.
Figure 4-45 Sample Diagnostic Menu Screen
2. Follow on-screen instruction and send the command to read vehicle information. A screen with
a list of available options displays.
Figure 4-46 Sample Vehicle Info Screen
3. Use the UP/DOWN key to highlight an available option and press the ENTER key. A screen
with details of the selected option displays.
Figure 4-
47 Sampl
e Calibration ID Screen
4. Press the BACK key to exit and return.
4.10 Modules Present
The code reader identifies module IDs and communication protocols for OBD2 modules in the
vehicle.
To view module IDs and communication types:
1. Use the UP/DOWN key to highlight Modules Present from Diagnostic Menu and press the
ENTER key.
Figure 4-48 Sample Diagnostic Menu Screen
2. A screen with the module IDs and protocols displays.
Figure 4-49 Sample Module Present Screen
3. Press the BACK key to exit and return.
5. DTC Lookup
DTC Lookup menus allows to request DTC definitions stored in the code reader.
To Look up DTCs:
1. Use the LEFT/RIGHT key to highlight DTC Lookup from Home Screen and press the ENTER
key.
Figure 5-1 Sample Home Scree
n
2. Use the LEFT/RIGHT key to select the desired character, then press the UP/DOWN key to
change the digit you want to enter a valid code number. Press the ENTER key to confirm.
