Laser 5091 Code Reader User’s Guide
44
Laser 5091 Code Reader User’s Guide
45

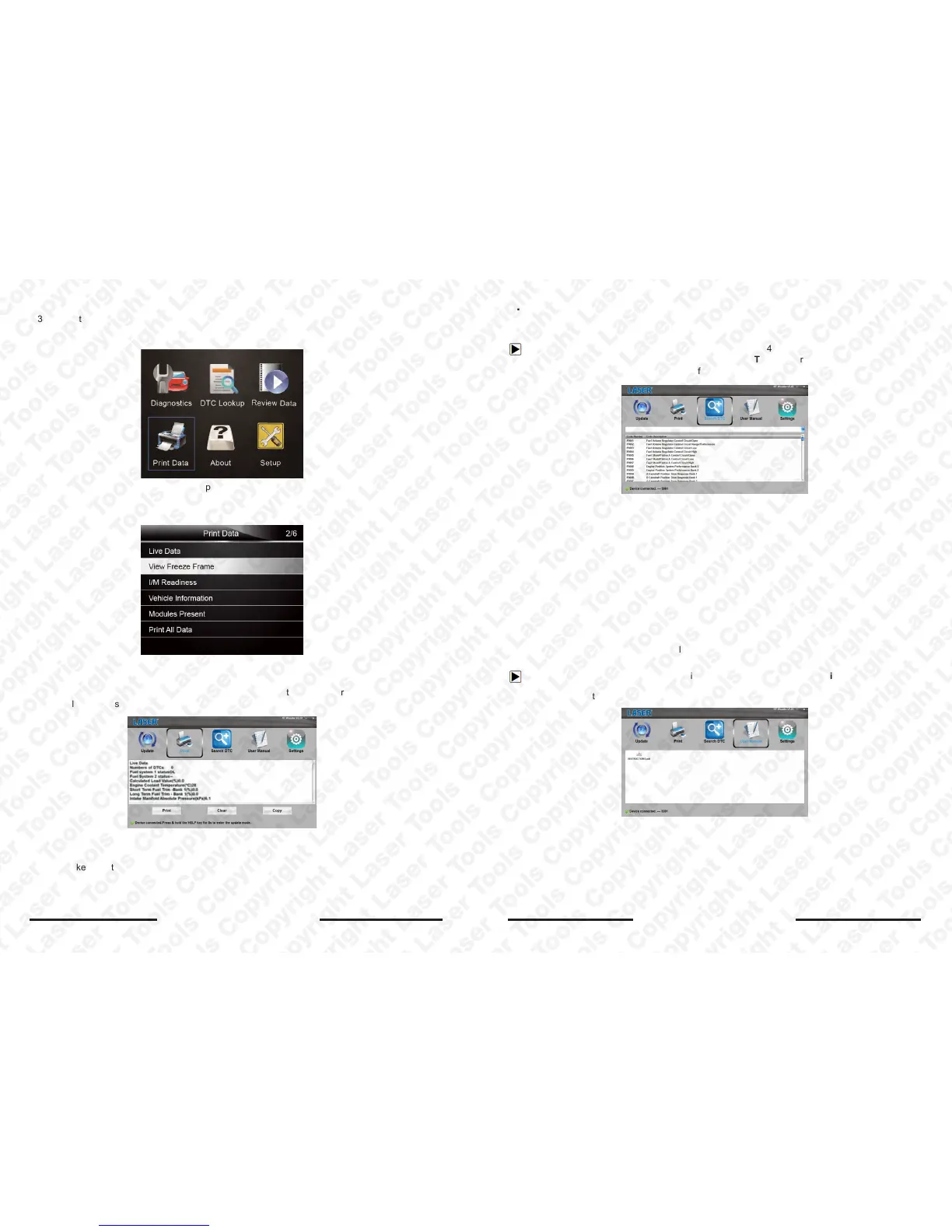

Figure 9-4 Sample Printing Activation Function
3. Connect 5091 to computer with the USB cable supplied to power it on.
4. Use the LEFT/RIGHT key to select Print Data from home screen of the 5091 and press the
ENTER key to confirm.
Figure 9-5 Sample Home Screen Function
5. Use the UP/DOWN key to select desired data to print. If all recorded data to be printed, use the
UP/DOWN key to select Print All Data.
Figure 9-6 Sample Print Data Menu Screen
6. Press the EN
TER key to load data to the edit box of update tool NT Wonder. Click the Clear
key to delete the data and Use Copy key to save the data to the clipboard on the computer. It
also allows the users to edit the text by moving the cursor to the edit box.
Figure 9-7 Sample Printing Data Screen.
7. With the printer correctly connected, use the Print key to print the testing data. Press the
BACK key to return to home screen.
9.3 Searching DTC
Searching DTC option opens a screen that allows you to look up the DTC.
To search DTC:
1. Download and launch NT Wonder as instructed on page 44 of 9.1 Updating the Code Reader.
2. Start the printing application by clicking the Search DTC Button from the menu.
3. Input the valid code number and the definition of the code will be highlighted on the screen.
Figure 9-8 Sample Search DTC Screen
9.4 User Manual
User Manual option opens a screen that allows you to read the manual in PDF format.
To read the manual:
1. Download and launch NT Wonder as instructed on page 44 of 9.1 Updating the Code Reader.
2. Activate the application by clicking the User Manual Button from the menu.
3. Double click to open the manual you want to check.
Figure 9-9 Sample User Manual Screen
