Leica Rugby 620 User Manual

Rugby 620, Description of the System
15

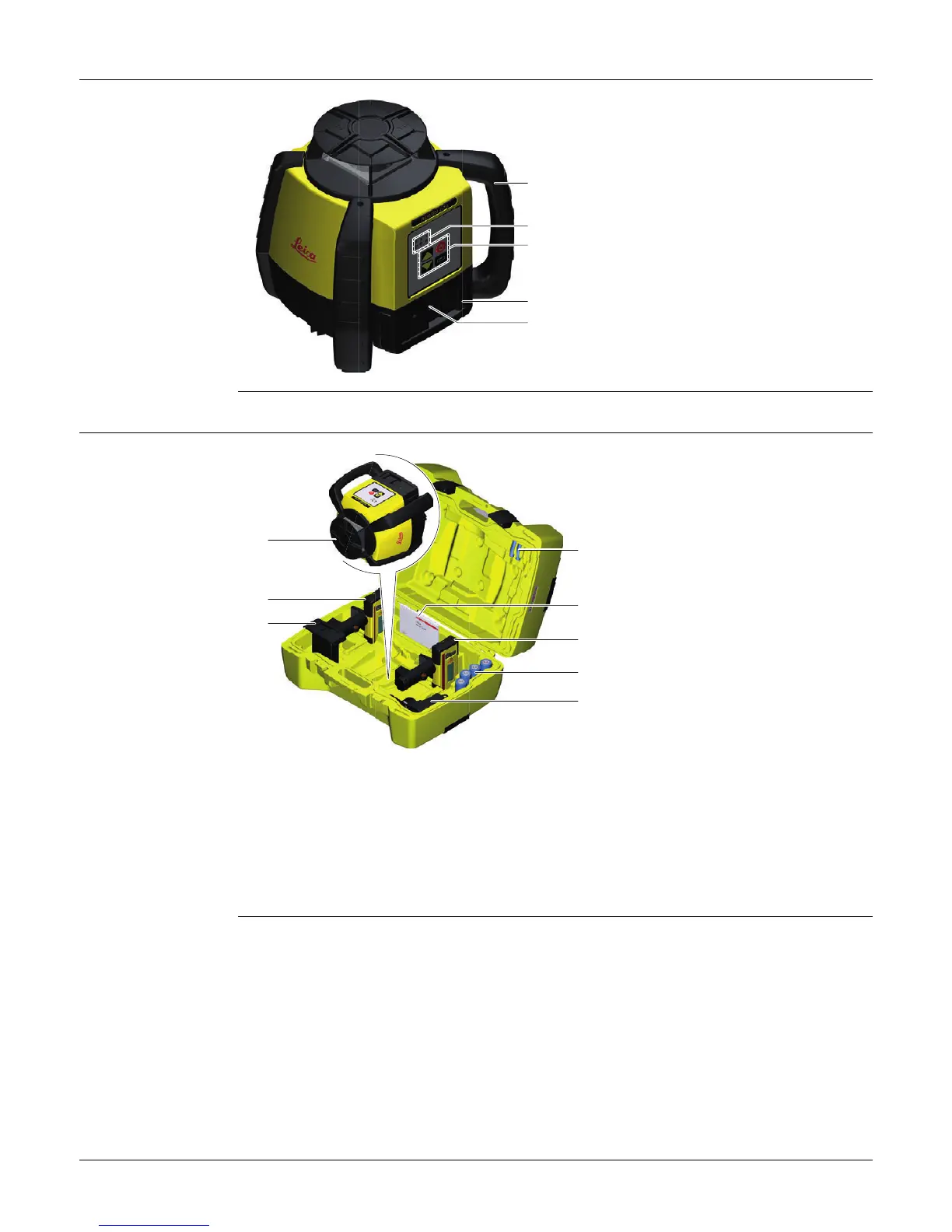

2.2 Rugby Laser Components
Rugby laser
components
2.3 Case Components
Case components
a) Carry Handle
b) LED Indicators
c) Buttons
d) Battery compartment
e) Charge jack (for Li-Ion battery pack)
005783_001
a
b
c
d
e
a) Rugby laser
b) Rod eye receiver mounted on the bracket
c) Li-Ion battery pack or Alkaline battery pack
d) 2x AA-cell battery
e) User Manual/CD
f) Second receiver (can be purchased separately)
g) 4 x D-cell battery (for alkaline versions only)
h) Charger (for Li-Ion versions only)
005784_001
a
b
c
d
e
f
g
h

Leica Rugby 620 Specifications

General

Self-leveling range	± 5°
IP rating	IP67
Working range with receiver	800 m (2, 600 ft) diameter
Rotation speed	600 rpm
Laser type	635 nm
Power source	alkaline batteries
Battery life	60 hours
Operating temperature	-20°C to +50°C
Self-leveling accuracy	± 1.5 mm at 30 m (± 1/16 in at 100 ft)
