Rugby 620, Operation
19
3.5 Manual Mode
Description of the
Manual Mode
After start-up the Manual Mode can be activated. In Manual Mode the self-levelling will
be deactivated. The following options are available:
• Change the X-axis to Manual Mode
• Change the Y-axis to Manual Mode
• Change to Full Manual Mode

After turning the Rugby off and on again, the Rugby is in Automatic Mode.
Changing the X-axis
to Manual Mode
After startup, press the Automatic/Manual Mode Button once to change the X-axis to
Manual Mode.

The X-axis and Y-axis are marked on the top of the Rugby.
Changing the Y-axis
to Manual Mode
Press the Automatic/Manual Mode button again to change the Y-axis to Manual Mode.

The X-axis and Y-axis are marked on the top of the Rugby.
• The X-axis does not self-level and a slope can be entered in this axis using the Up
and Down Arrow buttons on the Rugby.
• The X-axis LED is red.
• The Y-axis continues to self-level and the Y-axis
LED flashes green until level.

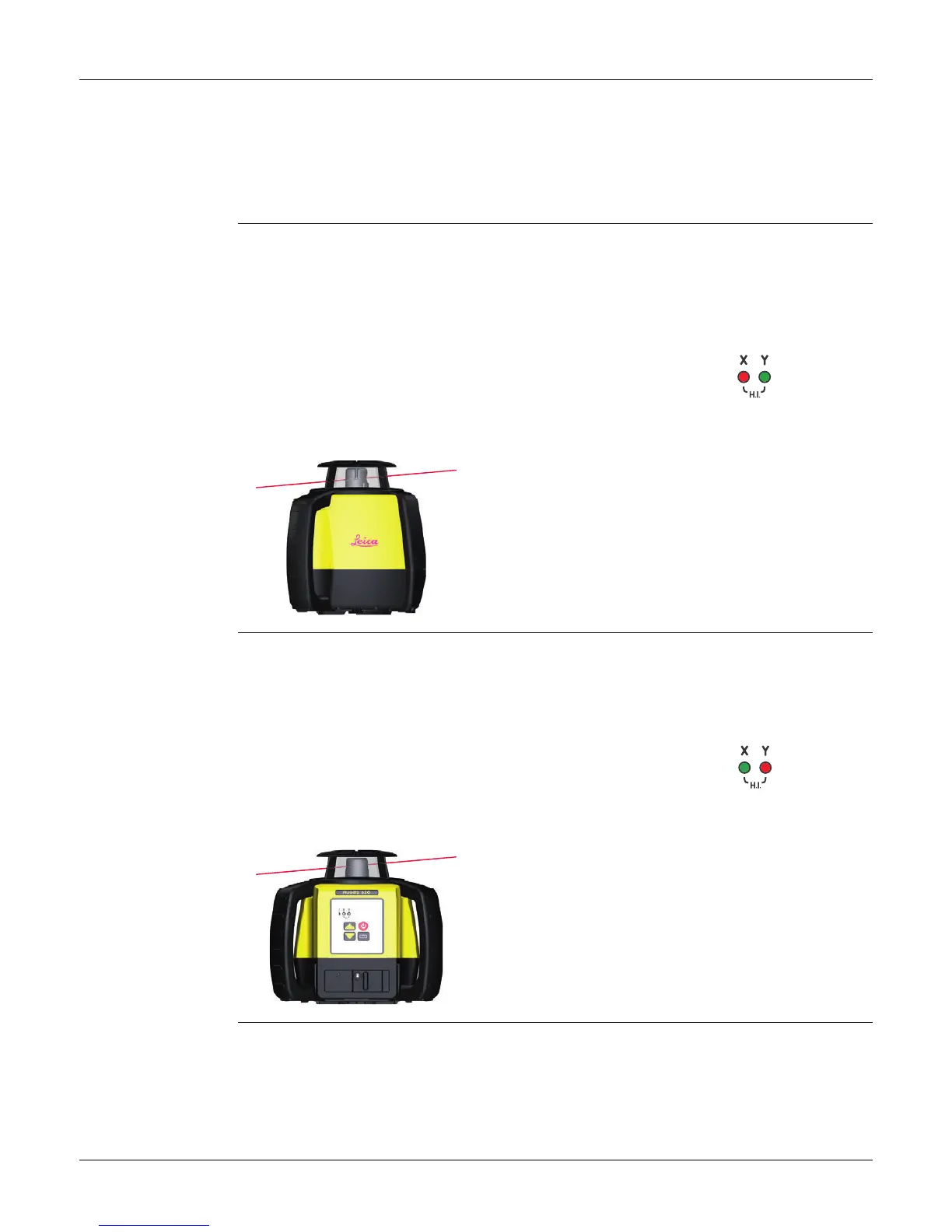

When the X-axis is in Manual Mode, the X-axis can be sloped upwards or downwards
as illustrated.
005788_001
• The Y-axis does not self-level and a slope can be entered in this axis using the Up
and Down Arrow buttons on the Rugby.
• The Y-axis LED is red.
• The X-axis continues to self-level and the X-axis
LED flashes green until level.
When the Y-axis is in Manual Mode, the Y-axis can be sloped upwards or downwards
as illustrated.
005789_001

Leica Rugby 620 Specifications

General

Self-leveling range	± 5°
IP rating	IP67
Working range with receiver	800 m (2, 600 ft) diameter
Rotation speed	600 rpm
Laser type	635 nm
Power source	alkaline batteries
Battery life	60 hours
Operating temperature	-20°C to +50°C
Self-leveling accuracy	± 1.5 mm at 30 m (± 1/16 in at 100 ft)
