IOM / ROOFTOP BALTIC Series - 0704-E Page 15
ABC D
B Box 1000 (1) 1500 (2) 1500 1000
C Box 1200 (1) 1500 (2) 1500 1000
D Box 1400 (1) 1500 (2) 1500 1000
E Box 1800 (1) 1500 (2) 1500 1100
(1) Add 1 meter if the units are equipped with gas burner
(2) Double this distance if the units are equipped with extraction
TRANSPORT - HANDLING
MINIMUM CLEARANCE AROUND THE UNIT

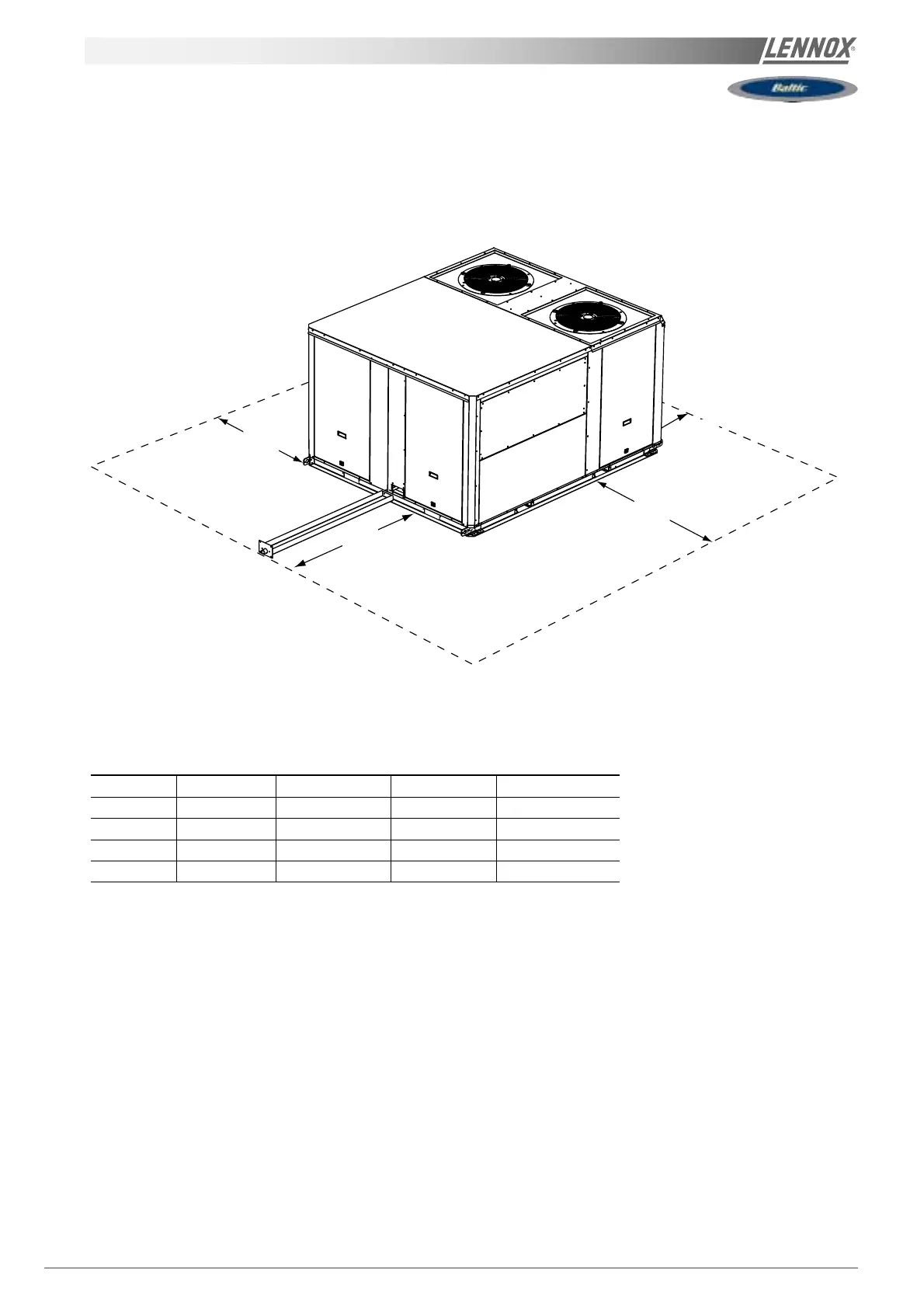

Figure 4 shows the required clearances and service access around the unit.
NOTE : Ensure the fresh air inlet does not face prevailing wind direction.
A
D
B
C
