IOM / ROOFTOP BALTIC Series - 0704-E Page 29
A
J I
CF
G
H
E
D
B
D
D
2D
2D
1D
Down Supply Air
2D
Return Air
8
Main Power Entry 030-035-040-045-050
BCK = Cooling only unit
BHK = Heat pump unit
BGK = Cooling only unit with gas fired heating
BDK = Heat pump unit with gas fired heating

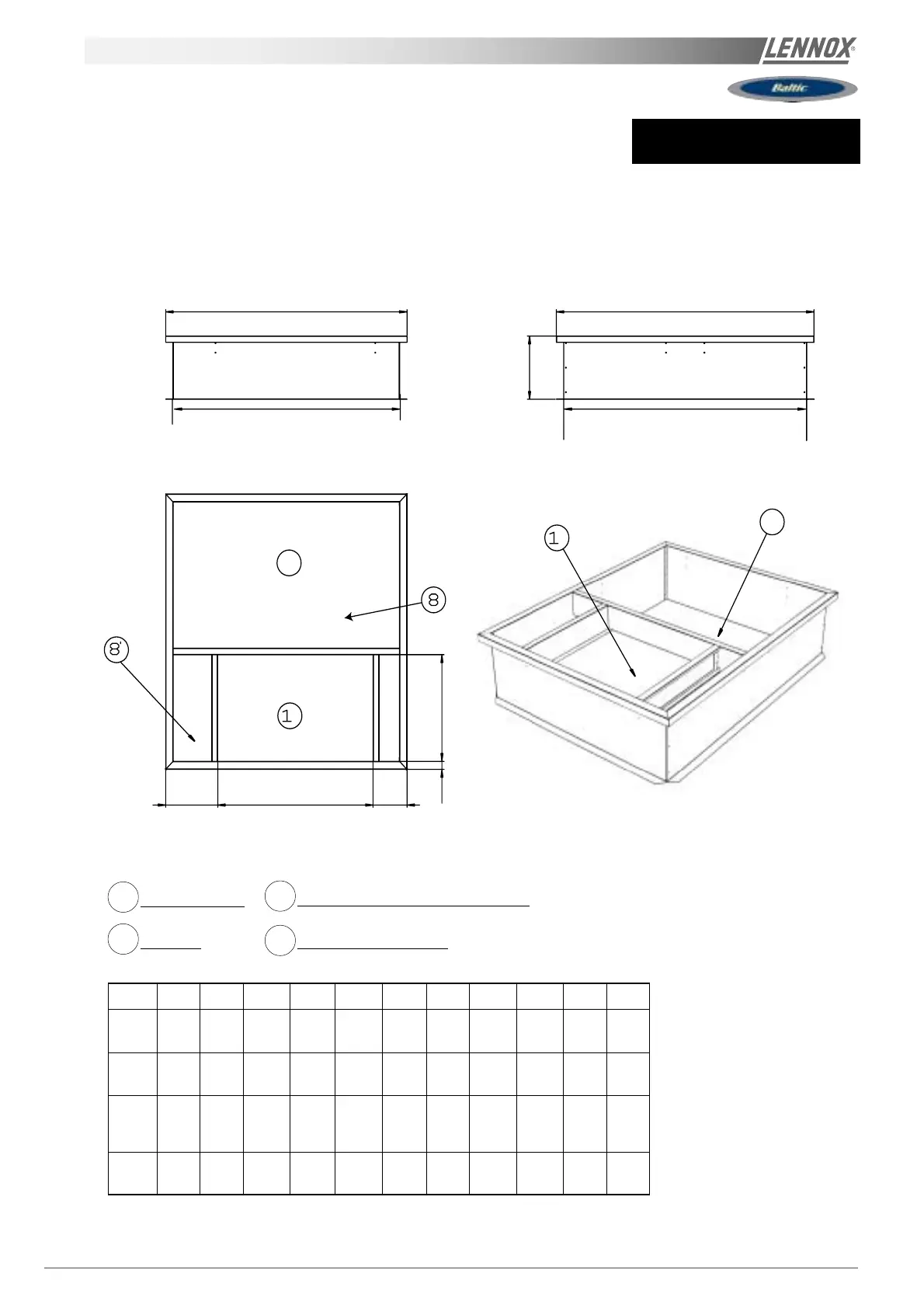

Non-adjustable ROOFCURB
(*) Non adjustable, non assembled roofcurb.
8'
Main Power Entry 020-025
Roof opening I x J
Type Taille A B C D E F G H I J
All 020
1183 1893 691 400 246 246 515 50 1783 1083
025
All 030
1380 1740 790 400 351 240 675 50 1640 1280
035
All 040
045 1630 1740 1050 400 352 229 675 50 1640 1530
050
All 060
2080 2090 1400 400 425 255 720 156 1990 1980
070
All units
To Next Page
