Economiser
Free cooling can be provided through the use of fresh air
where appropriate rather than cooling excessive amounts of
return air.
The economiser is factory fitted and tested prior to shipment.
It includes two dampers operating from a 24V actuator
Rain hood
It also includes a factory fitted rain hood . Hoods is folded
during transportation to limit risks of damage and must be
unfolded on site as shown below on figure 9 :
Extraction
Installed with economiser assembly, the gravity exhaust
dampers relieve the pressure when outside air is introduced
into the system.
When large amount of fresh air is introduced into the system
power exhaust fans can be used to equalise the pressures.
The extraction fan runs when return air dampers are being
closed and supply air blower is in operation. The extraction
fan runs when outdoor air dampers are at least 50% open
(adjustable value) It is overload protected.
NOTE :
When horizontal flow configuration is required, the
multidirectional roofcurb will be installed
ECONOMISER AND EXTRACTION
0-25% fresh air manual (Fig. 10)
It is enough to loosen the
mobile grid's screws and to
make it slip.
0% : screw into limit stop
on the right
25% : screw into limit stop
on the left
1 Supply fan
2 Economiser damper
3 Exhaust damper or
Exhaust damper + exhaust fan
Fresh air
Return air
Supply air
Exhaust air
4 Multidirectional roofcurb
5 Heat recovery module
6 Exhaust Roofcurb
Fig. 10
1
2
5
6
1
4
2
3

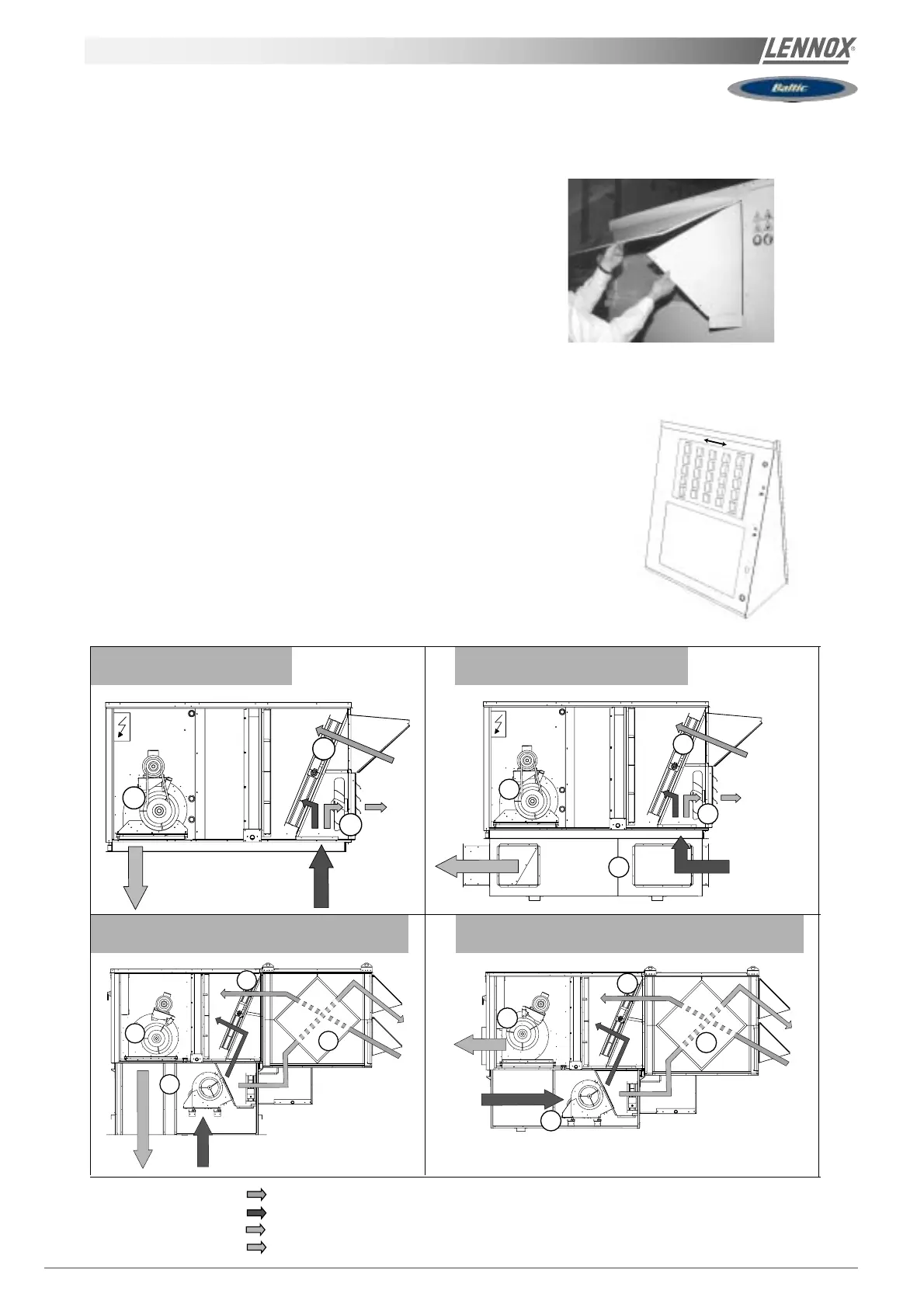

MULTIDIRECTIONAL ROOFCURB
PRINCIPLE SKETCH
ENERGY RECOVERY MODULE + EXHAUST ROOFCURB
PRINCIPLE SKETCH (horizontal flow)
BALTIC PRINCIPLE SKETCH
(vertical flow)
1
2
5
6
ENERGY RECOVERY MODULE + EXHAUST ROOFCURB
PRINCIPLE SKETCH (vertical flow)
1
2
3
Fig. 9
