Lennox CLIMATIC 50 Installation Operating & Maintenance Manual

10
CLIMATIC™50 – IOM – Rooftops/ Aircoolair
CL50
-
ROOFTOPS
-
IOM
-
Wireless
-
0708
-
E
10

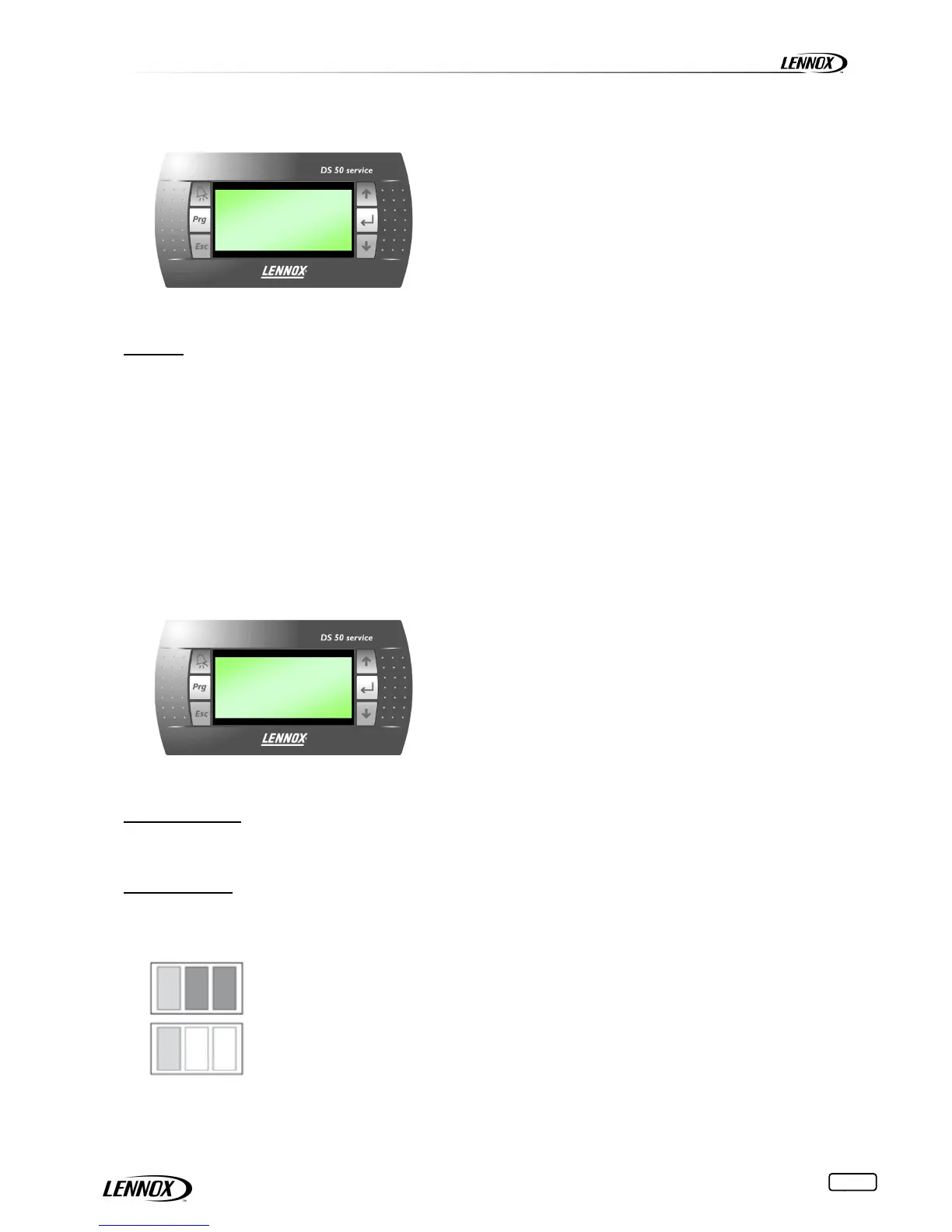

The access point indicates that the connection has been made by sequentially activating the 3 LEDs .
DS50
In the special screens, search the screen beginning with [ Wireless (DCw) Clo]
For an DCw perfectly set and connected we have the following screen:

 



 



 


If the connection is correct the symbol ‘’ appears on
the second line.
If the symbol '' is displayed instead of a symbol '' it
means that the Wireless communication does not, or
more. In this case check the position of the display
compared to APw
The third line shows the power of communication.
The fourth shows the percentage of charging the
battery.
Sensor
SCw
After having opened the domain on the access point:
Insert the battery, paying attention to the polarity.
Check that LED (A) comes on for a few seconds.
Press the button located on the rear of the sensor (B) once.
The LED on the sensor (A) remains on until the device is connected to the access point.
Note:
If the LED flashes once rather than remain on steady, it means that it has already been associated with another access
point. In this case, reinitialise the sensor.
The access point indicates that the connection has been made by sequentially activating the 3 LEDs .
CHECK: The sensor will be correctly associated if each time the button is pressed once the LED flashes once.
DS50
In the special screens, search the screen beginning with [ Wireless (SCw 1) Clo] or several
For an SCw perfectly set and connected we have the following screen:
 
 


 
 


 
 


If the connection is correct the symbol ‘
’ appears on
the second line.
If the symbol '
' is displayed instead of a symbol '' it
means that the Wireless communication does not, or
more. In this case check the position of the sensor
compared to APw
The third line shows the power of communication.
The fourth shows the percentage of charging the
battery.
Reset devices
To reinitialise the devices to the initial purchase status, proceed as follows.
Access point
APw
Important: All the devices previously associated will be removed from the access point/repeater (no devices connected =
0).
Press the button, 10 seconds, until the 3 LEDs remain on steady (not flashing).
Release the button.
The LEDs will start flashing quickly;
The device is reinitialised if after a few seconds the LED on the left remains on steady.
