13
TERMINAL DCw
This chapter describes the functional characteristics of the terminal.

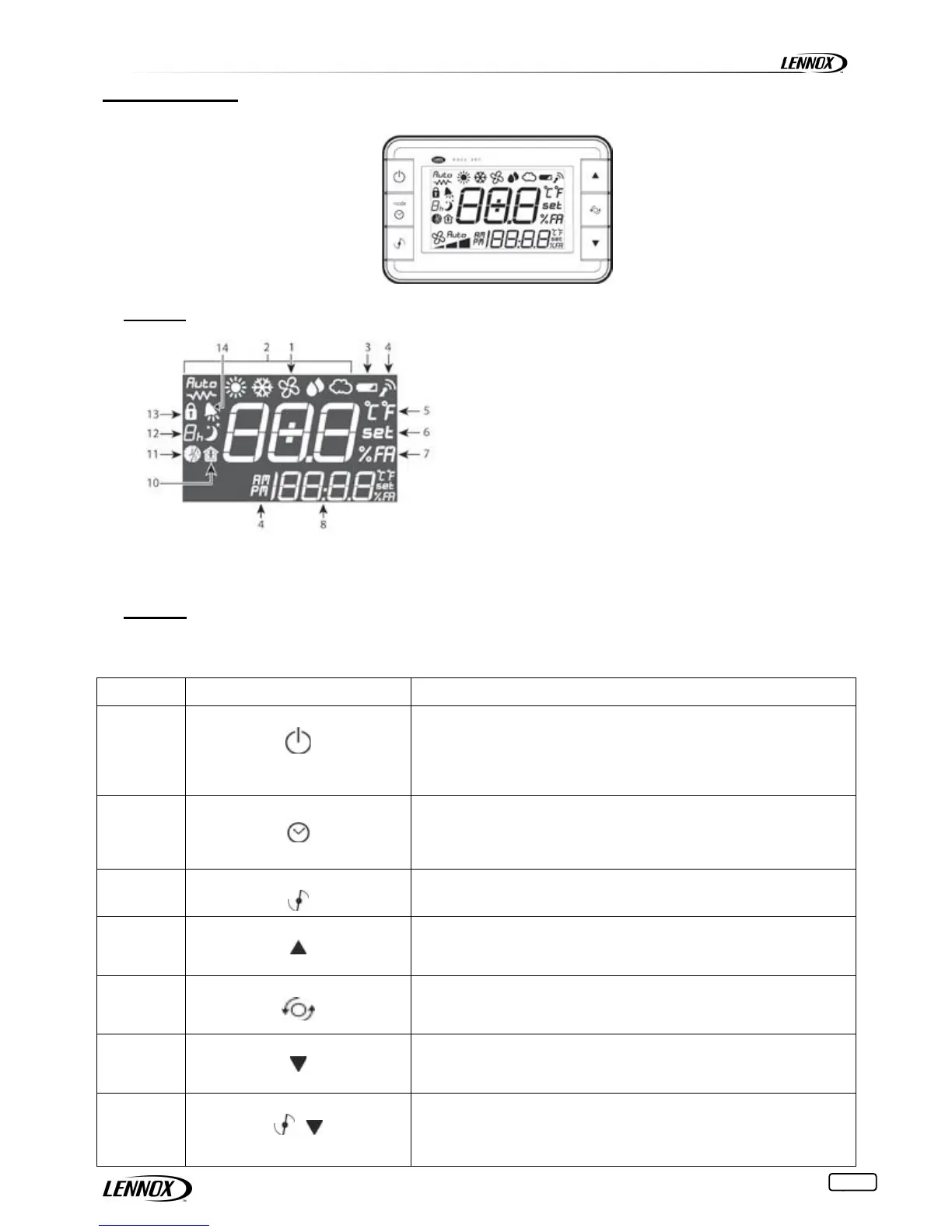

Display
Key:
1 Main field.
2 Operating mode indicator
3 Flat battery indicator
4 Wireless connection active with the APw
5 Display in °C/°F indicator
6 Set mode for the value of field 1
7 Fresh Air display indicator
8 Secondary field.
9 Time in 12/24 h mode indicator
10 Occupancy mode active
11 Time band active (1 or 2) indicator
12 Sleep mode indicator. The digit shows the hours
remaining
13 Lock button/function active
14 Active alarm. Field 8 shows “E” + alarm code 1 to 255
Keypad
Front buttons
(Numbered from 1 to 6, from top to bottom, left to right)
n. Button meaning
1 Mode ON/OFF
Pressed briefly:
• Terminal ON if the instrument is OFF.
• Return to the main screen.
Pressed and held (3 s):
• Terminal OFF.
2 Time Bands
Pressed briefly:
• Enter time band setting mode.
Pressed and held (5 s):
• Enter clock setting mode.
3 Fresh Air
Pressed briefly:
• Change percentage of Fresh Air (UP/DOWN buttons to change value).
4 Up
From the main menu increase the value of the set point displayed in the
large field. From the other menus display the variables or the parameters
or set the value if first pressing the multifunction button.
5 Multifunction
Each time the button is pressed displays the menu set for parameters loc
7, 8, 13, 14, and 15. To change, if available, the values displayed in the
menus, press the up/down buttons.
6 Down
From the main menu decrease the value of the set point displayed in the
field. From the other menus display the variables or the parameters or set
the value if first pressing the multifunction button
3 & 6 Fresh Air + Down
+
Pressing Fresh Air/DOWN together accesses the parameters menu.
Press the UP/DOWN buttons to access the desired parameter and the
multifunction button to set the value, again using the UP / DOWN buttons.
Press the multifunction button again
