Start -Up
In event of power failure —The thermostat will reboot after power is
restored. When the reboot is complete, the HOME screen will return.
WHAT THE HOME SCREEN TELLS YOU...
After the thermostat and the
system have been fully connected
and powered on, the
thermostat's Home screen is
displayed. Figure 1 shows a
display and describes what the
thermostat is telling you.
When the system mode is set to
heat or cool, the system
is operating in manual
mode;
When a particular program
has
been selected, program name will
be displayed on the system mode
button (e.g., summer program is on).
OTHER INFORMATION...
The system will run until the indoor
temperature is within the range specified
by the selected cooling and heating
setpoints (70 to 75 degrees in this
example).
The “Wi-Fi” button in the bottom left corner provides access
to the Wi-Fi setting screen. Wi-Fi with a
beneath it indicates
a prior connection to the server has been lost. When the Wi-Fi
connection is re-established, the triangle goes away.
Away Mode sets the thermostat for energy-saving system operation
while you are gone for an extended period of time. In this mode, the
system will only come on if the indoor temperature falls below 62 degrees (for
heating), or if the indoor temperature rises above 85 degrees (for cooling).
WHAT YOU CAN DO FROM THE HOME SCREEN...
The Home Screen provides you with convenient
access to adjust heating and cooling setpoints,
as well as humidity levels in your home.
From this screen you may:
- adjust temperature
settings
- access menus to change the
program mode
- change how the
fan operates
- access the “Features screen”
(fig. 3) by touching
- access and view active
service alerts by touching the
icon
- access help screen by
touching the “?” icon
Temperature adjustment and system mode of
operation selection are described fully
beginning on Page 15.
If the installer has activated the indoor humidity feature,
you will be able to set the desired humidity level in your home
even if no physical humidifier or dehumidifier is present.
See Page 17 for details on humidity control.
Fan is set
to AUTO
Internet
weather
forecast
indoor temperature
indoor humidity is 41%
cool-to
set temp
75
heat to
70
heat
or
cool
outdoor
temperature
80
touch to go
to Features
use arrows
to change
temperature
Current indoor
temperature
Indoor
humidity
Outdoor
temperature
Cooling
setpoint
Heating
setpoint
System
mode
System
status
Service
alerts are
present
Time, month, day, year
(touch to change)
(if feature is
turned on)

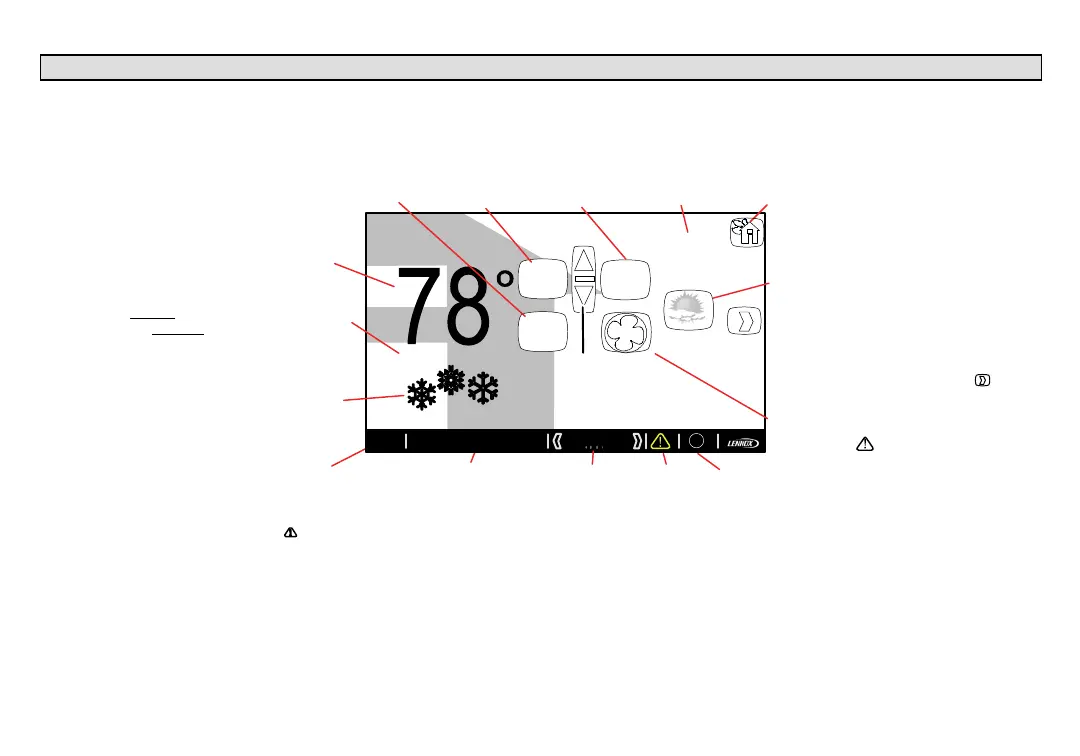

Figure 1. Home Screen (Typical)
system is cooling
9:39 am May 23, 2012Wi-Fi
?
enter
away
Zone 1
Zoning
(if installed
and enabled)
Help screen
Away Mode
fan is
OFF
fan is
AUTO
forecast
Hi 85
Lo 60
Wi-Fi setup
button
