User Features and Help (?) Screens
From the Home screen, touch the button to access the Features screen.
The Features screen (figure 3) allows you access to edit programs, system
settings, display settings, zoning settings, alerts, reminders, service and
help (?).
FEATURES
press any button for access to more features and controls
system
settings
zone
settings
display
settings
service
edit
programs
alerts reminders
9:39 am May 23, 2012 ?
Wi-Fi
Only
appears if
zoning is
installed.

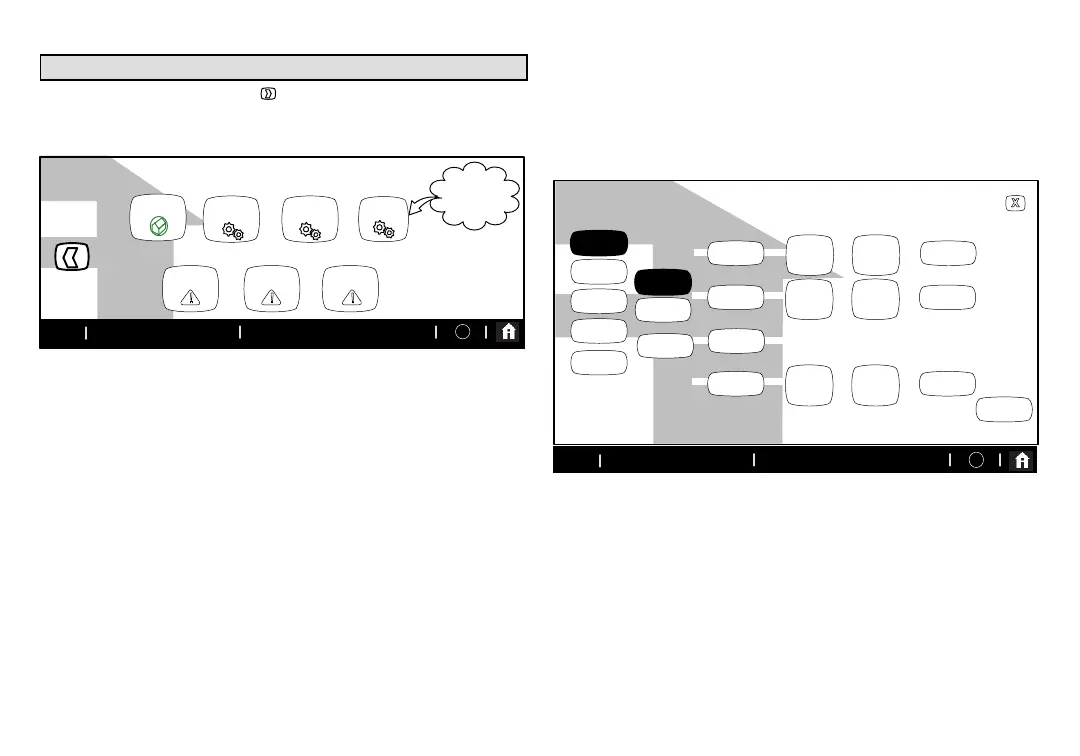

Figure 3. Features Screen - Indoor Settings
EDIT PROGRAMS (SCHEDULE)
Touch edit programs button (see fig. 3). Figure 4 shows the EDIT
PROGRAMS screen.
Edit the “season programs” to reflect your preferences. (The Save energy
program uses high-efficiency Energy Star settings to promote energy
conservation.)
select programs - Select a preset program; or touch and hold any
button to enable the keyboard to change program names to suit your
preferences.
select days - Select week/weekend, individual days, all 7 days.
time - Use up/down arrows to change time in 15 minute increments.
cool- and heat-to - Use up/down arrows to change temperature in 1
degree increments.
fan mode - Select on, auto, or circulate.
In the example in Figure 4, the evening time has been disabled by touching
and holding the time button for that time period un time is replaced with add
setting. To re-enable, touch add setting that time period. Use the restore
button to restore defaults for the preset programs. It no additional
adjustment are made to any programs, touch ”X“ button to exit. If changes
are made to any programs then touch the save button and then touch X to
exit this screen and return to the FEATURES screen.
EDIT PROGRAMS
summer
select
programs
summer
program will follow these settings on mon-fri
winter
spring fall
save energy
custom
06:00 am
78 70
AUTO
select
days
time cool-to heat-to fan mode
85 62
08:00 am AUTO
82 62
10:00 pm AUTO
sat-sun
mon-fri
add setting
change
days
press and hold any time to enable or disable for the time period
save
touch/hold
program
button to
rename
9:39 am May 23, 2012
?
Wi-Fi
Figure 4. EDIT PROGRAMS Screen
TURN PROGRAMMING ON
If the programming is OFF, touch the system mode button (shown in figure 5,
labeled heat or cool) to open the manual settings menu. Programs is the
final selection in this menu. Select programs to display the program
settings menu. (The menu will disappear if you don't make a selection within
a few seconds). Select an option (e.g. spring/fall). The system mode button
will display the selected program (e.g. spring...program is ON).
