1160 LCD unit
For access, remove these FRUs in order:
v “1010 Battery pack” on page 78
v “1030 Optical drive or travel cover” on page 80
v “1090 Wireless WAN slot cover and PCI Express Mini Card for wireless WAN”
on page 90
v “1100 Palm rest assembly with cables” on page 93
v “1110 PCI Express Mini Card for wireless LAN” on page 96
v “1140 Keyboard” on page 100
v “1150 Keyboard bezel” on page 103

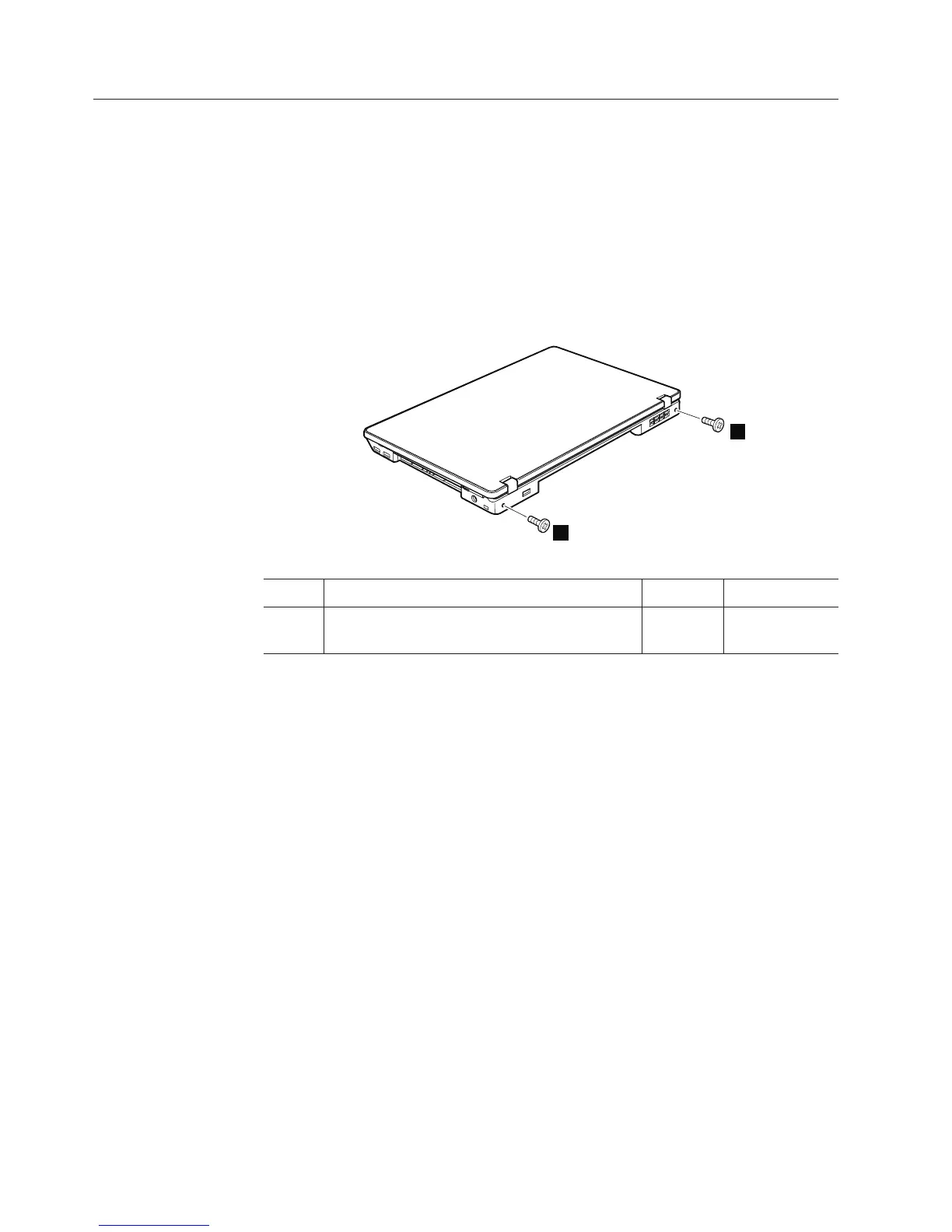

Table 26. Removal steps of LCD unit
1
1
Step Screw (quantity) Color Torque
1 M2.5 × 6.5 mm, wafter-head, nylon-coated
(2)
Black 0.392 Nm
(4 kgfcm)
106 ThinkPad Edge 14″, Edge 15″, E40, and E50 Hardware Maintenance Manual
