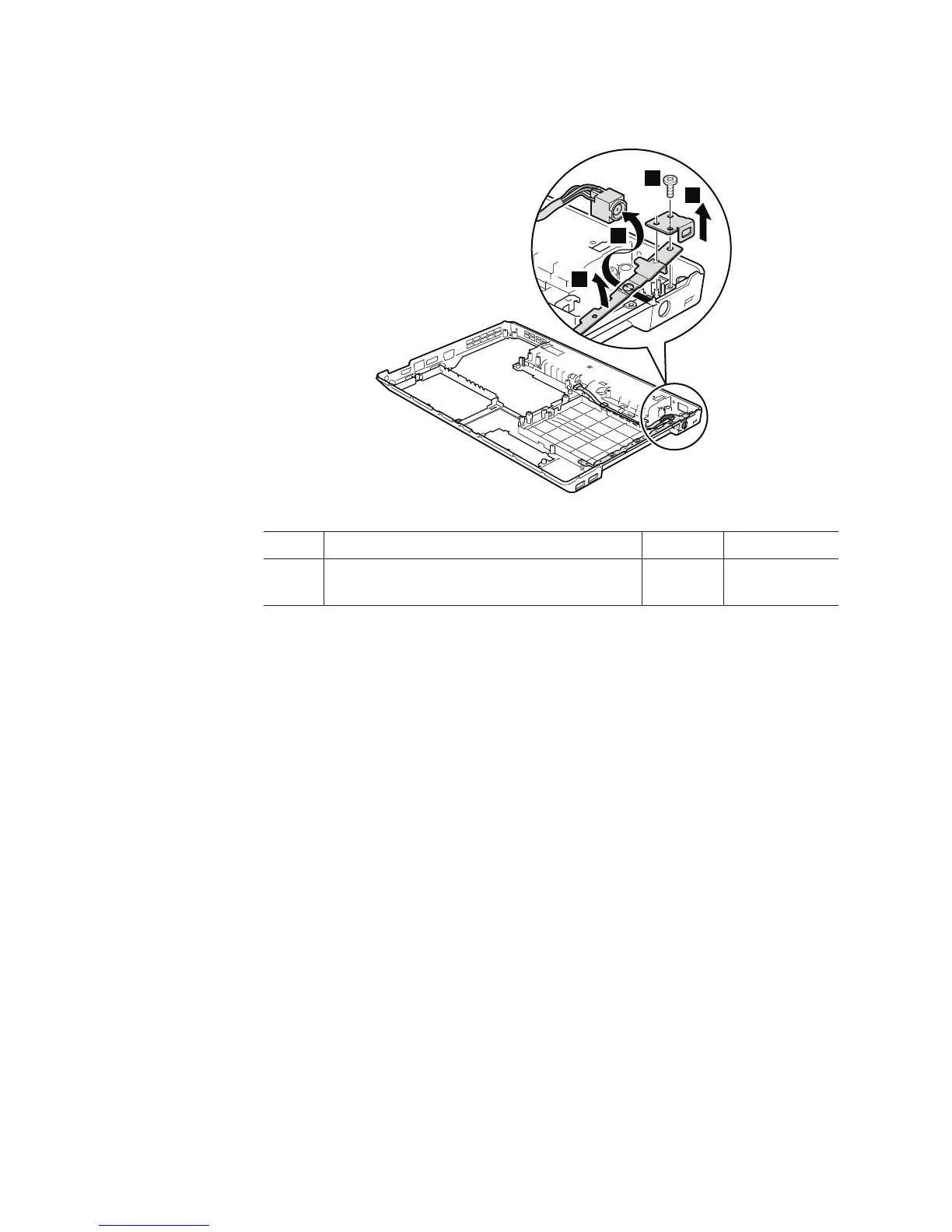

31.
Removal
steps
of
DC-in
cable
and
base
cover
(continued)
For
ThinkPad
Edge
14
″
and
E40:
1
2
3
4
Step
Screw
(quantity)
Color
T
orque
1
M2
×
5
mm,
wafer-head,
nylon-coated
(1)
Black
0.181
Nm
(1.85
kgfcm)
120
ThinkPad
Edge
14
″
,
Edge
15
″
,
E40,
and
E50
Hardware
Maintenance
Manual
127
129
