1080 CPU
For access, remove these FRUs in order:
v “1010 Battery pack” on page 78
v “1040 Thermal cover” on page 81
v “1070 Fan assembly” on page 85
Attention: CPU is extremely sensitive. When you service the CPU, avoid any
kind of rough handling.
Table 15. Removal steps of CPU

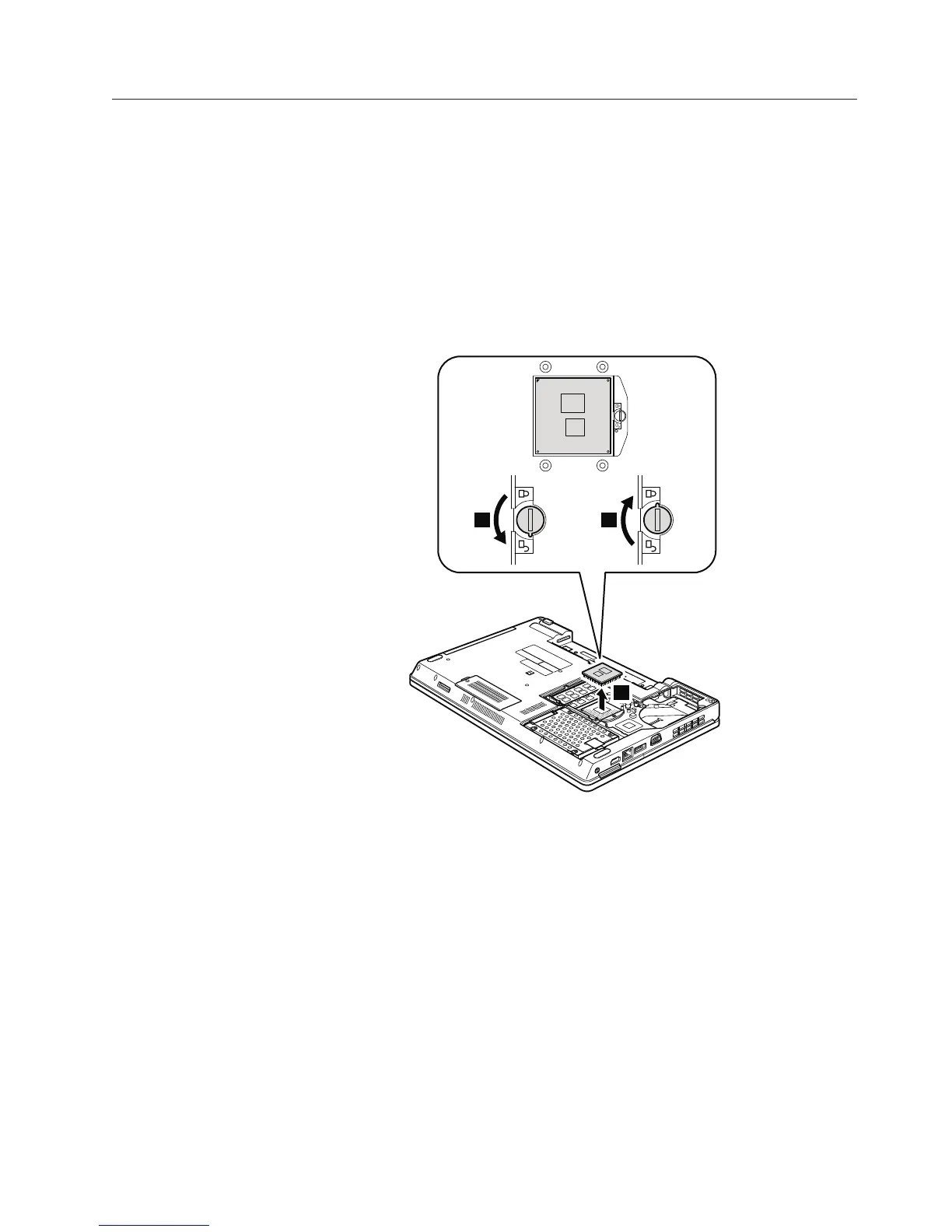

Rotate the head of the screw in the direction shown by arrow 1 to release the
lock; then remove the CPU 2.
1
2
a
When installing: Place the CPU on the CPU socket, and then rotate the head of
the screw in the direction shown by arrow a to secure the CPU.
Removing and replacing a FRU 89
