1190 USB connector board and USB cable assembly
For access, remove these FRUs in order:
v “1010 Battery pack” on page 78
v “1040 Thermal cover” on page 81
v “1050 Hard disk drive (HDD) assembly” on page 82
v “1090 Wireless WAN slot cover and PCI Express Mini Card for wireless WAN”
on page 90
v “1100 Palm rest assembly with cables” on page 93
v “1110 PCI Express Mini Card for wireless LAN” on page 96
v “1140 Keyboard” on page 100
v “1150 Keyboard bezel” on page 103
v “1160 LCD unit” on page 106
v “1170 Top shielding assembly” on page 110

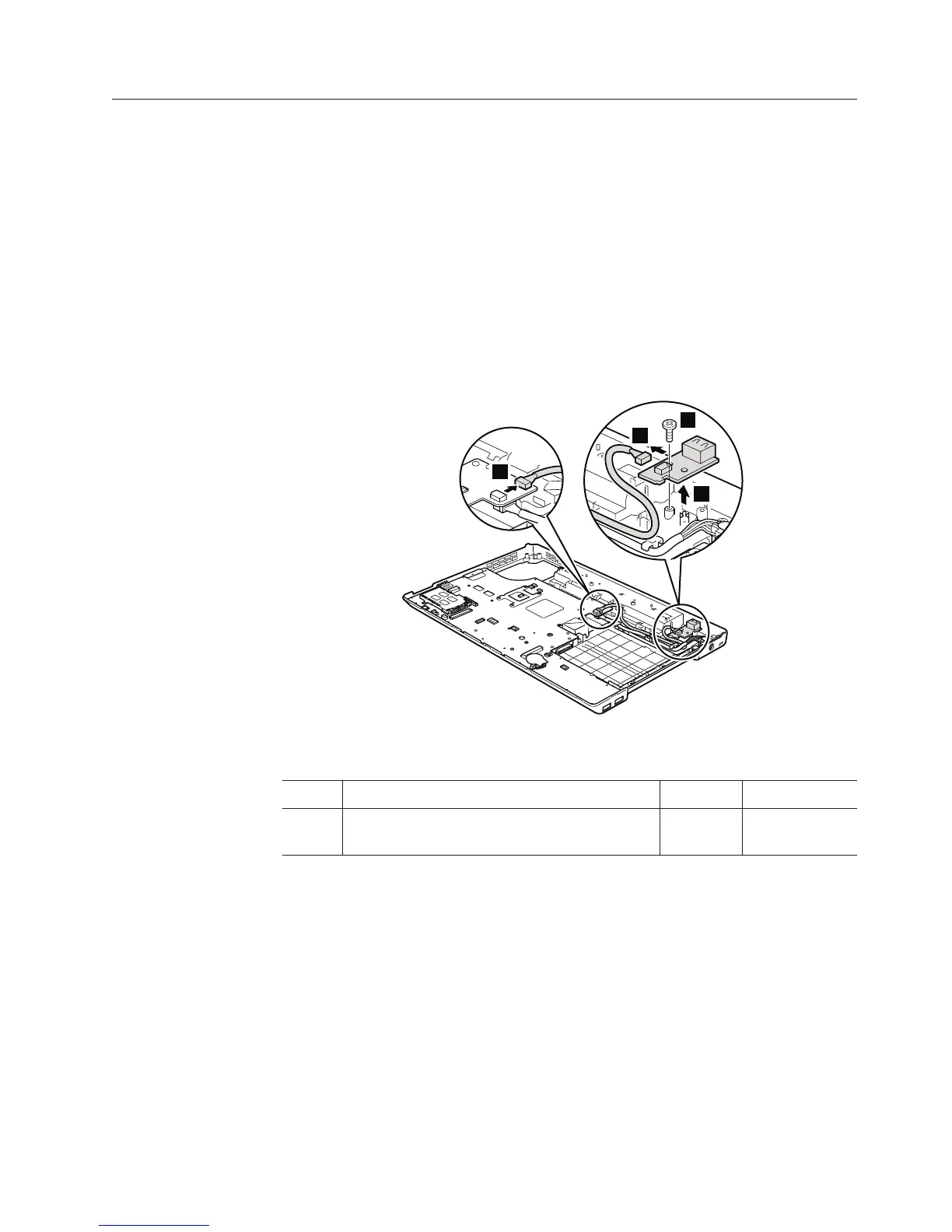

Table 30. Removal steps of USB connector board and USB cable assembly
3
2
4
1
When installing: Make sure that the connectors are attached firmly.
Step Screw (quantity) Color Torque
2 M2 × 3 mm, wafer-head, nylon-coated (1) Black 0.181 Nm
(1.85 kgfcm)
Removing and replacing a FRU 117
