Lenovo V530-24ICB User Manual

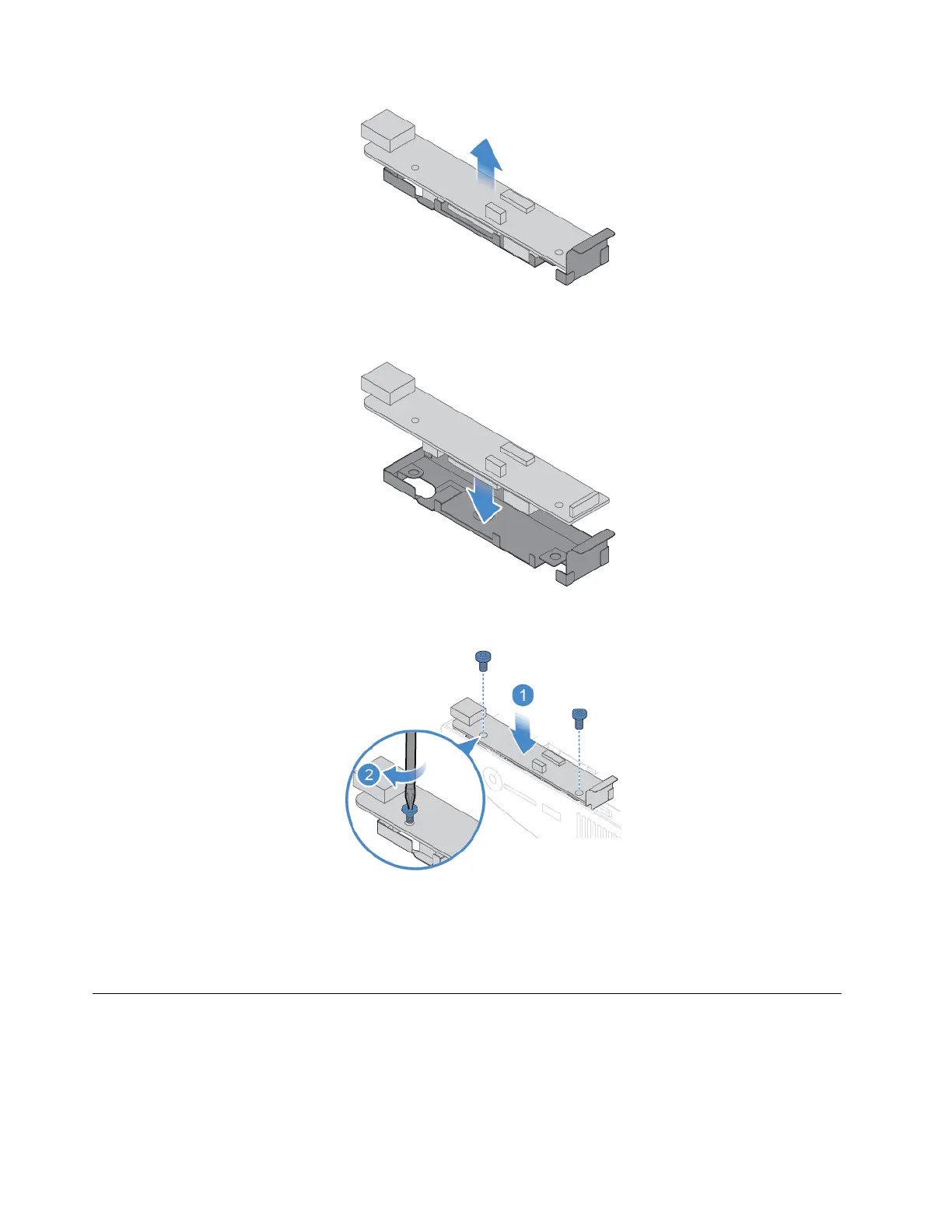

Figure 63. Removing the I/O board
Figure 64. Installing the I/O board
Figure 65. Installing the I/O board bracket
5. Connect the I/O board cables to the system board.
6. Complete the replacement. See “Completing the parts replacement” on page 58.
Replacing the system fan
Attention: Do not open your computer or attempt any repairs before reading the Important Product
Information Guide.
1. Remove the monitor stand. See “Replacing the monitor stand” on page 20.
2. Remove the LCD panel. See “Removing the LCD panel” on page 22.
38
V530-24ICB AIO User Guide and Hardware Maintenance Manual

Lenovo V530-24ICB Specifications

General

Memory	Up to 32GB DDR4
Operating System	Windows 10 Pro
Form Factor	All-in-One
Weight	6.4 kg (14.1 lbs)
Graphics	Integrated Intel UHD Graphics 630
Display	23.8" FHD (1920 x 1080)
Optical Drive	DVD-RW
Audio	2 x 3W Internal Speakers
Connectivity	Wi-Fi 802.11ac, Bluetooth 4.0
Camera	720p
Ports	2 x USB 2.0, 2 x USB 3.1 Gen 1, HDMI-out, Audio combo jack
