Lenovo V530-24ICB User Manual

3. Disconnect the system fan cable from the system board.
4. Replace the system fan.

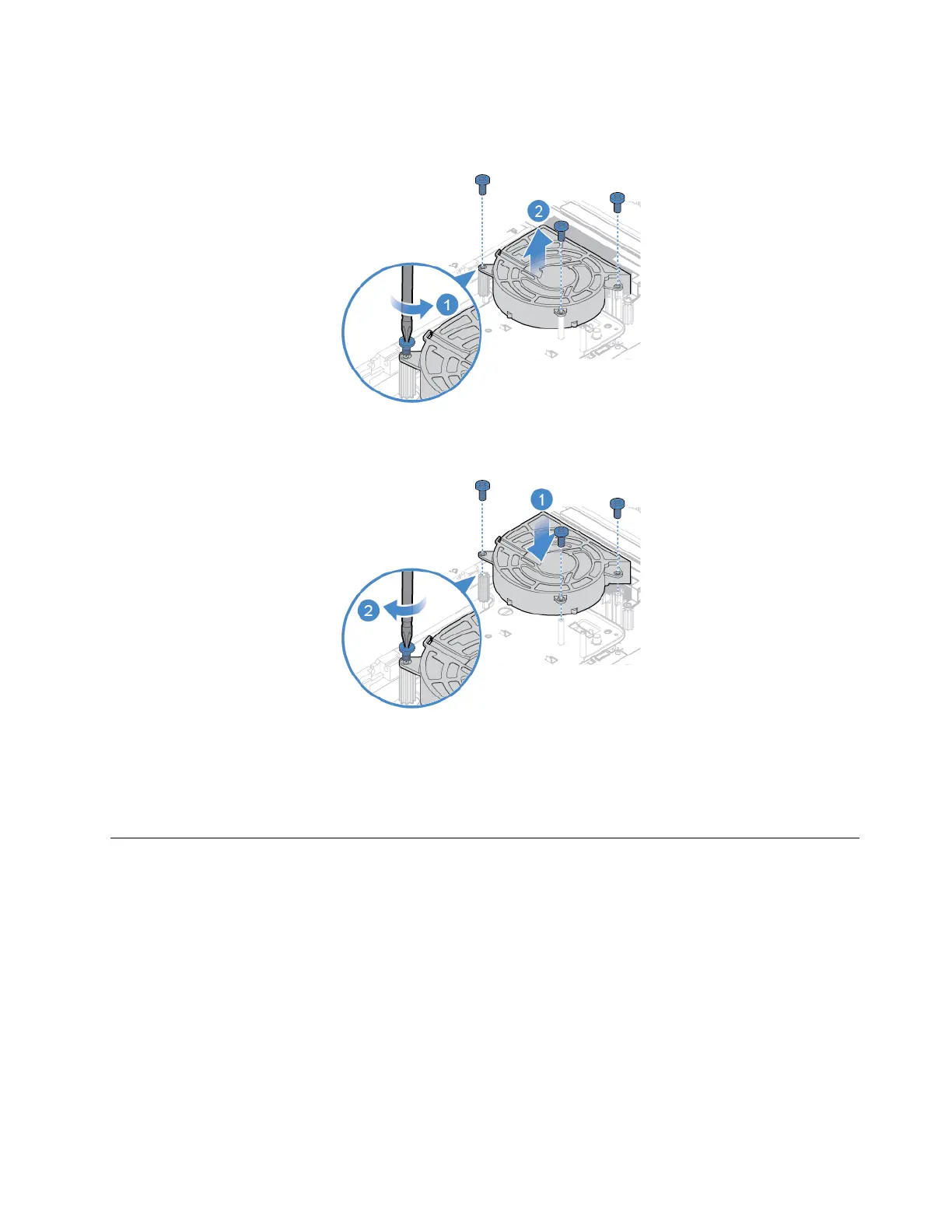

Figure 66. Removing the system fan
Figure 67. Installing the system fan
5. Connect the system fan cable to the system board.
6. Complete the replacement. See “Completing the parts replacement” on page 58.
Replacing the heat sink
Attention: Do not open your computer or attempt any repairs before reading the Important Product
Information Guide.
1. Remove the monitor stand. See “Replacing the monitor stand” on page 20.
2. Remove the LCD panel. See “Removing the LCD panel” on page 22.
3. Depending on the computer model, refer to one of the following to replace the heat sink.
• Type 1
Chapter 4. Replacing hardware 39

Lenovo V530-24ICB Specifications

General

Memory	Up to 32GB DDR4
Operating System	Windows 10 Pro
Form Factor	All-in-One
Weight	6.4 kg (14.1 lbs)
Graphics	Integrated Intel UHD Graphics 630
Display	23.8" FHD (1920 x 1080)
Optical Drive	DVD-RW
Audio	2 x 3W Internal Speakers
Connectivity	Wi-Fi 802.11ac, Bluetooth 4.0
Camera	720p
Ports	2 x USB 2.0, 2 x USB 3.1 Gen 1, HDMI-out, Audio combo jack
