7. Remove the Wi-Fi card. See “Replacing the Wi-Fi card” on page 50.
8. Remove the M.2 solid-state drive. See “Replacing the M.2 solid-state drive” on page 43.
9. Remove the system board. See “Replacing the system board” on page 53.
10. Remove the system board frame. See “Replacing the system board frame” on page 56.
11. Replace the VESA mount bracket.

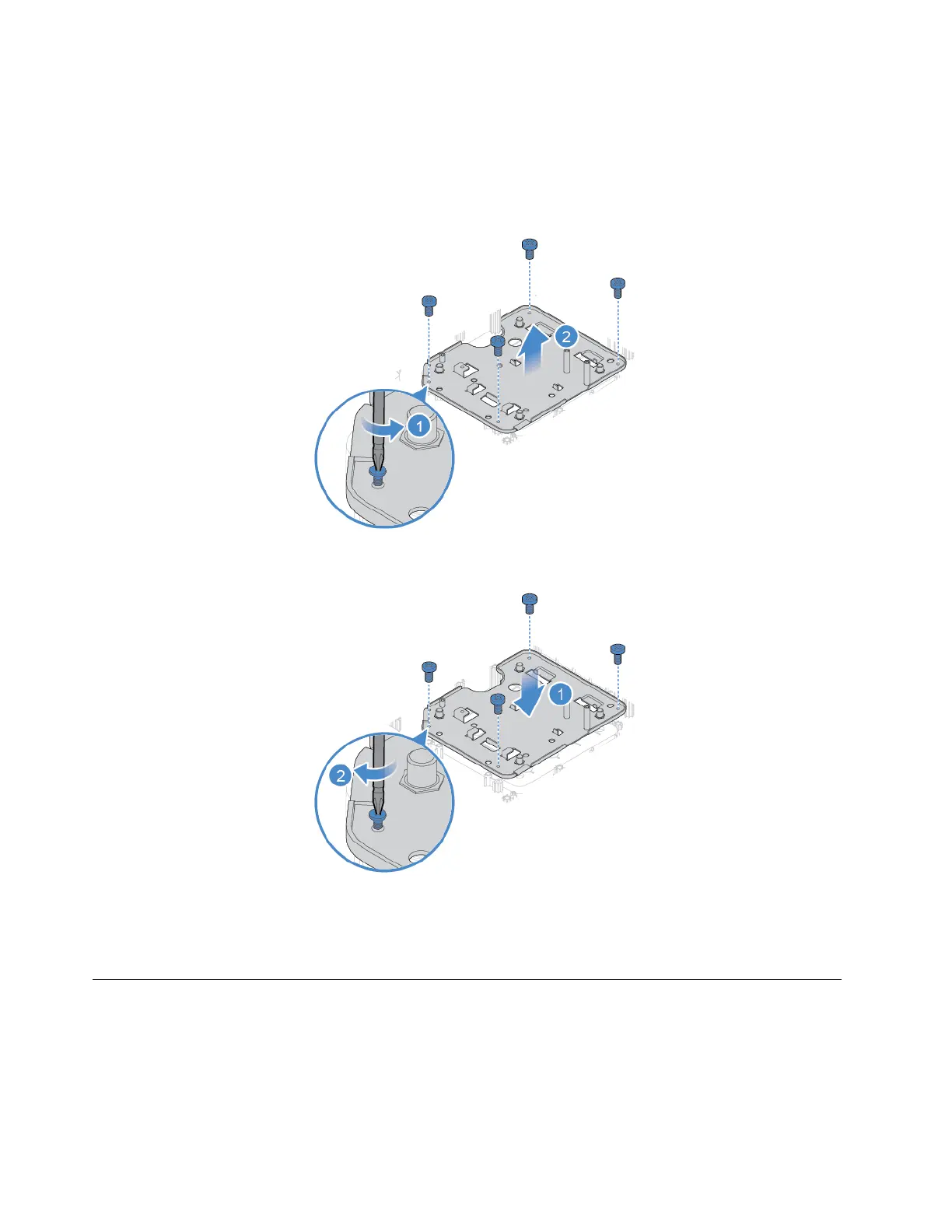

Figure 109. Removing the VESA mount bracket
Figure 110. Installing the VESA mount bracket
12. Complete the replacement. See “Completing the parts replacement” on page 58.
Completing the parts replacement
After completing the installation or replacement for all parts, reinstall the computer cover and reconnect the
cables.
To reinstall the computer cover and reconnect the cables to your computer, do the following:
58
V530-24ICB AIO User Guide and Hardware Maintenance Manual

Lenovo V530-24ICB Specifications

General

Memory	Up to 32GB DDR4
Operating System	Windows 10 Pro
Form Factor	All-in-One
Weight	6.4 kg (14.1 lbs)
Graphics	Integrated Intel UHD Graphics 630
Display	23.8" FHD (1920 x 1080)
Optical Drive	DVD-RW
Audio	2 x 3W Internal Speakers
Connectivity	Wi-Fi 802.11ac, Bluetooth 4.0
Camera	720p
Ports	2 x USB 2.0, 2 x USB 3.1 Gen 1, HDMI-out, Audio combo jack
