Lenovo V530-24ICB User Manual

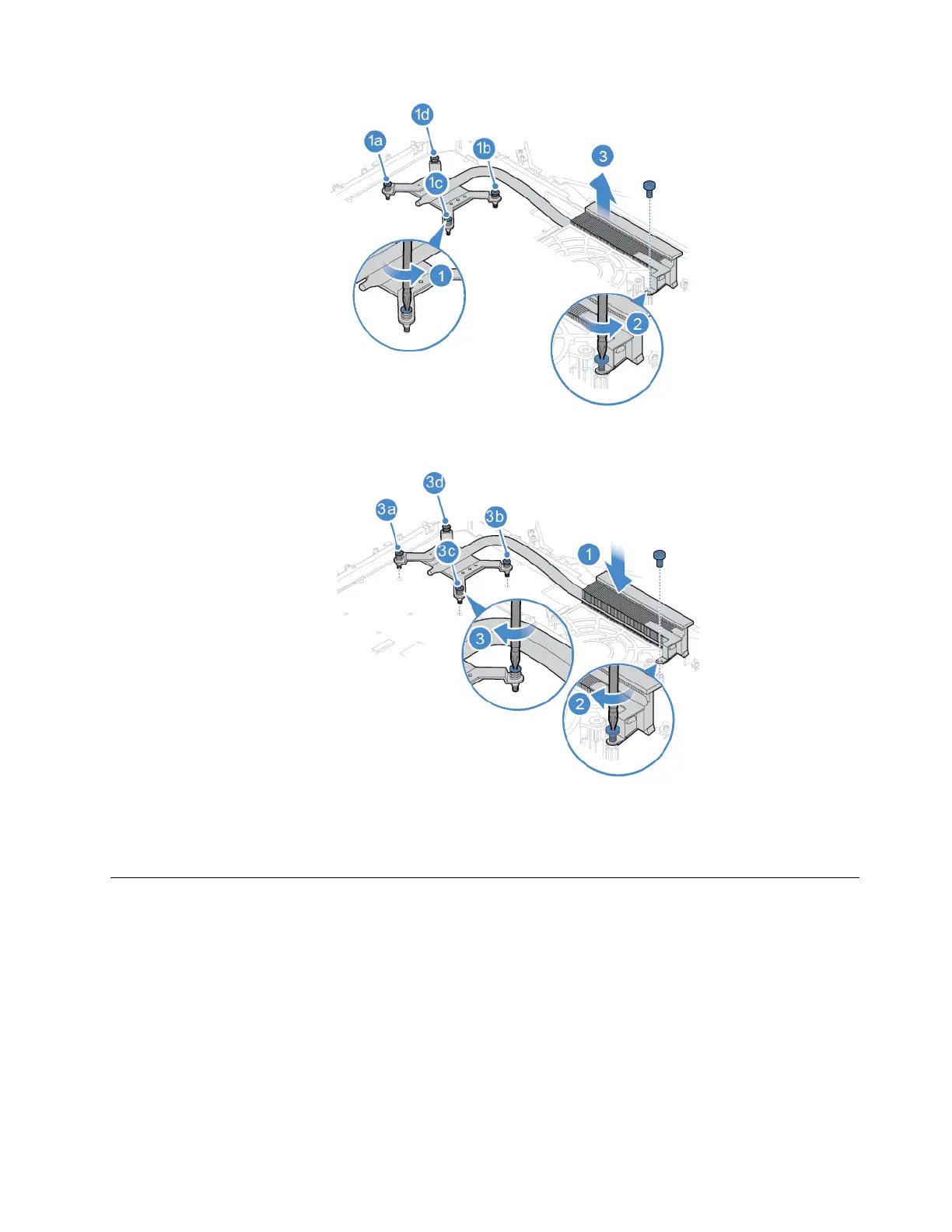

Figure 70. Removing the heat sink
Figure 71. Installing the heat sink
4. Complete the replacement. See “Completing the parts replacement” on page 58.
Replacing the memory module
Attention: Do not open your computer or attempt any repairs before reading the Important Product
Information Guide.
If your computer supports one memory module, install the module into the DIMM 1 slot. If your computer
supports two memory modules, install one memory module into the DIMM 1 slot first and then install the
other into the DIMM 2 slot.
1. Remove the monitor stand. See “Replacing the monitor stand” on page 20.
2. Remove the LCD panel. See “Removing the LCD panel” on page 22.
3. Replace the memory module.
Chapter 4. Replacing hardware 41

Lenovo V530-24ICB Specifications

General

Memory	Up to 32GB DDR4
Operating System	Windows 10 Pro
Form Factor	All-in-One
Weight	6.4 kg (14.1 lbs)
Graphics	Integrated Intel UHD Graphics 630
Display	23.8" FHD (1920 x 1080)
Optical Drive	DVD-RW
Audio	2 x 3W Internal Speakers
Connectivity	Wi-Fi 802.11ac, Bluetooth 4.0
Camera	720p
Ports	2 x USB 2.0, 2 x USB 3.1 Gen 1, HDMI-out, Audio combo jack
