Lenovo V530-24ICB User Manual

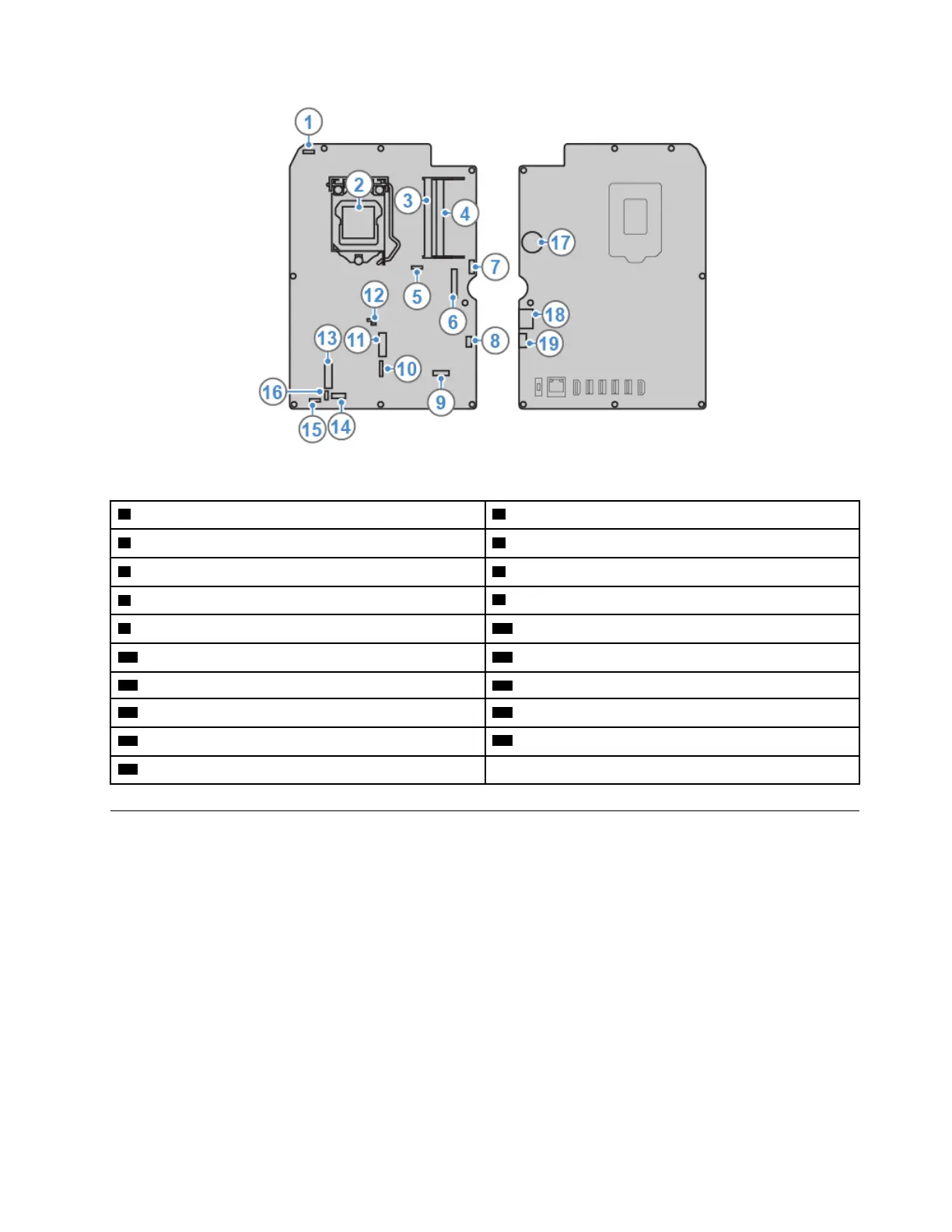

Figure 3. System board
1 Integrated camera connector 2 Microprocessor socket
3 Memory slot 1 (DIMM1) 4 Memory slot 2 (DIMM2)
5 System fan connector 6 LVDS connector
7 Optical drive connector
8 Power button board connector
9 LCD backlight connector 10 IO board connector 3
11 M.2 solid-state drive slot
12 JCRIS1 pads
13 M.2 Wi-Fi card slot
14 I/O board connector 1
15 Internal speaker connector
16 I/O board connector 2
17 Coin-cell battery 18 SATA connector for storage drive
19 Power connector for storage drive
Machine type and model label
The machine type and model label identifies the computer. When you contact Lenovo for help, the machine
type and model information helps support technicians to identify the computer and provide faster service.
The machine type and model label is attached on the computer as shown.
Chapter 1. Overview 5

Lenovo V530-24ICB Specifications

General

Memory	Up to 32GB DDR4
Operating System	Windows 10 Pro
Form Factor	All-in-One
Weight	6.4 kg (14.1 lbs)
Graphics	Integrated Intel UHD Graphics 630
Display	23.8" FHD (1920 x 1080)
Optical Drive	DVD-RW
Audio	2 x 3W Internal Speakers
Connectivity	Wi-Fi 802.11ac, Bluetooth 4.0
Camera	720p
Ports	2 x USB 2.0, 2 x USB 3.1 Gen 1, HDMI-out, Audio combo jack
