Montage Extension Board (Option)
6
MA DrivePLC DE/EN/FR 1.1
13

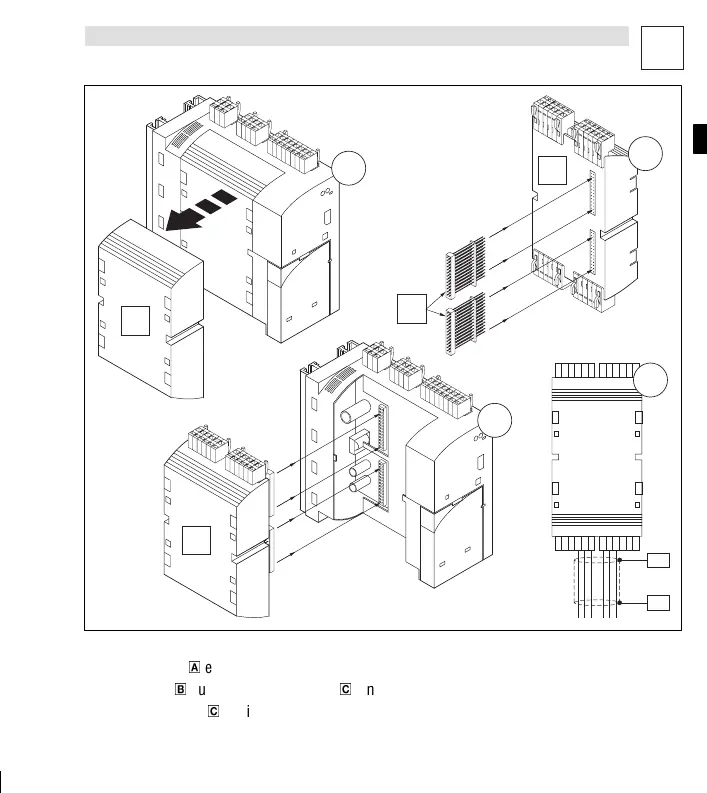

Abb. 1-10
PES
PES
1
4
A
B
C
C
2
3
plc015
1. Schutzkappe
0
entfernen und aufbewahren.
2. Stiftleisten
1
auf das Extension Board
2
einsetzen.
3. Extension Board
2
in die Drive PLC einsetzen.
4. Verdrahtung: siehe Montageanleitung des Extension Board.
