Installation according to EMC
3
MA DrivePLC DE/EN/FR 1.0
5
PES
PES
PE
PE
PE
1
3
0
120
2

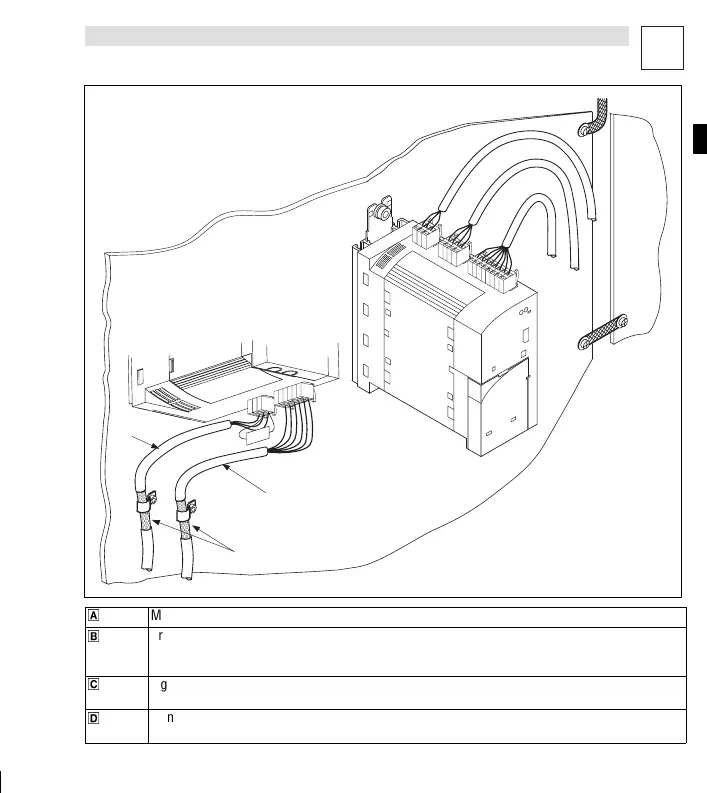

Abb. 1-15
plc013
0
Mounting plate with electrically conductive surface.
1
Ground the cable screen with a large-area connection to PE (PES: HF screen connection via PE
connection).
Use the enclosed fixing brackets.
2
Signal cable for analog input and output signals.
Always use a screened cable.
3
Signal cable for the system bus (CAN), with bus termination resistor (120
Ω
).
Always use a screened cable.
