Extension Board mounting (option)
6
MA DrivePLC DE/EN/FR 1.0
13
Abb. 1-22
PES
PES
1
4
A
B
C
C
2
3
plc015

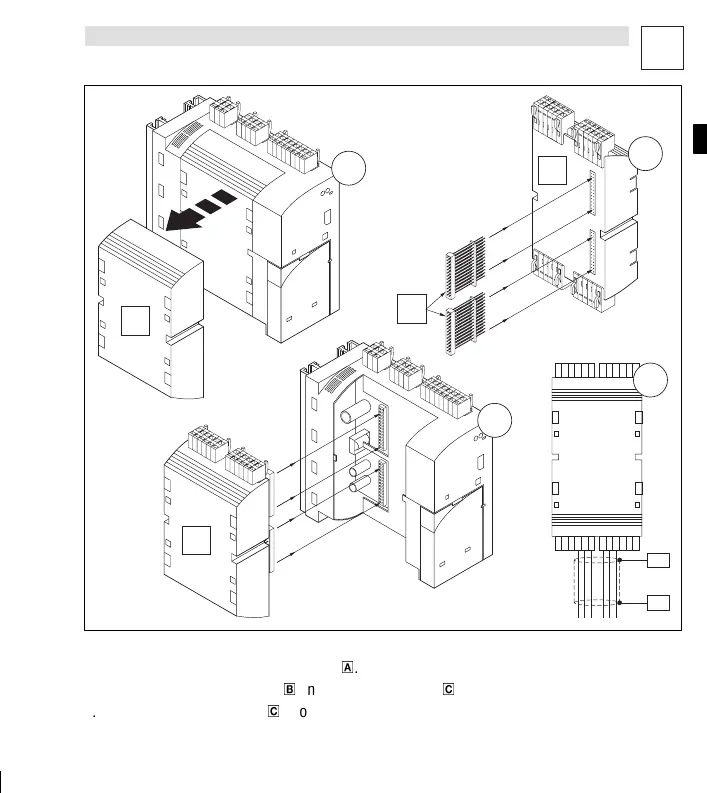

1. Remove and store the protective cover
0
.
2. Insert the pin connector strip
1
on the Extension Board
2
.
3. Insert the Extension Board
2
into the Drive PLC.
4. Wiring: See Mounting Instructions for the Extension Board.
