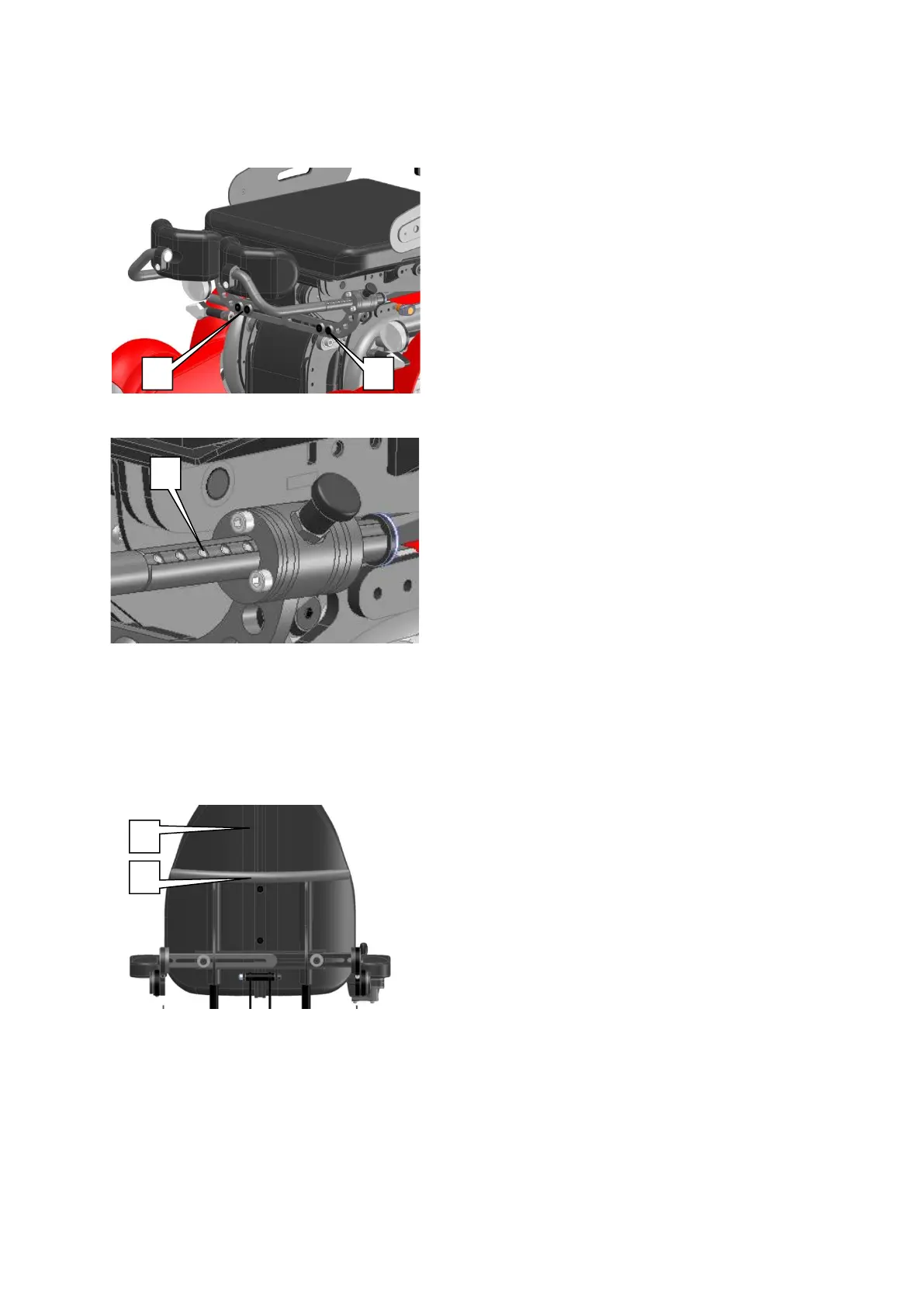

Adjusting the depth of the knee
support:
Check in which hole, the quick
release bolt has to lock, turn the set
screw (H) counterclockwise
downwards, that the quick release
bolt can lock into the hole.
Check the hole that was used before,
turn this set screw clockwise that the
hole is blocked.
11.9.2. Knee support „Integral“
11.10. Adjustment of the backrest height
Adjusting the distance between
the knee pads:
Untighten the 4 screws (G), adjust
the knee support to the necessary
width and tighten the screws (G).
Height adjustable knee pads are
available.
You can adjust the height of the
backrest by loosening the two screws
(I). You are then able to shift the
backrest up and down. Once in the
required position, tighten the screws
(I).
Please double check the adjustment in
standing position. The back must have
space so that the seat cushion and
back must not touch the seat plate in
the full standing position.
