Accessing the controller board
CAUTION—SHOCK HAZARD: If you are accessing the controller board or installing optional hardware or
memory devices sometime after setting up the printer, then turn the printer off, and unplug the power cord
from the electrical outlet before continuing. If you have any other devices attached to the printer, then turn
them off as well, and unplug any cables going into the printer.
Note: This task requires a flathead screw driver.

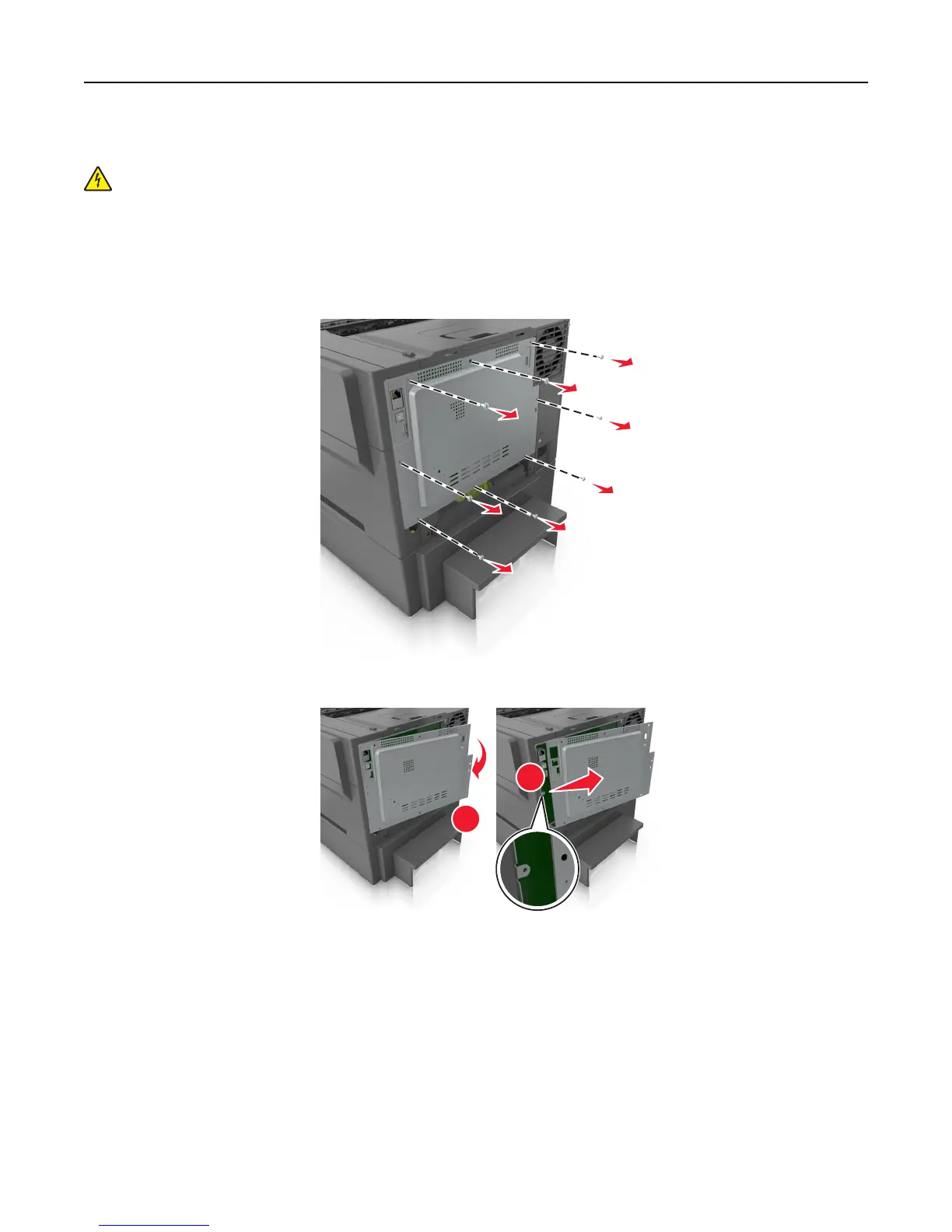

1 At the back of the printer, turn the screws counterclockwise to remove them.
2 Slightly open the controller board access cover, and then shift it to the right to remove it.
1
2
3 Locate the appropriate connector on the controller board.
Warning—Potential Damage: Controller board electronic components are easily damaged by static electricity.
Touch something metal on the printer before touching any controller board electronic components or
connectors.
Additional printer setup 26
