37
EXTERNAL EQUIPMENT SETUP

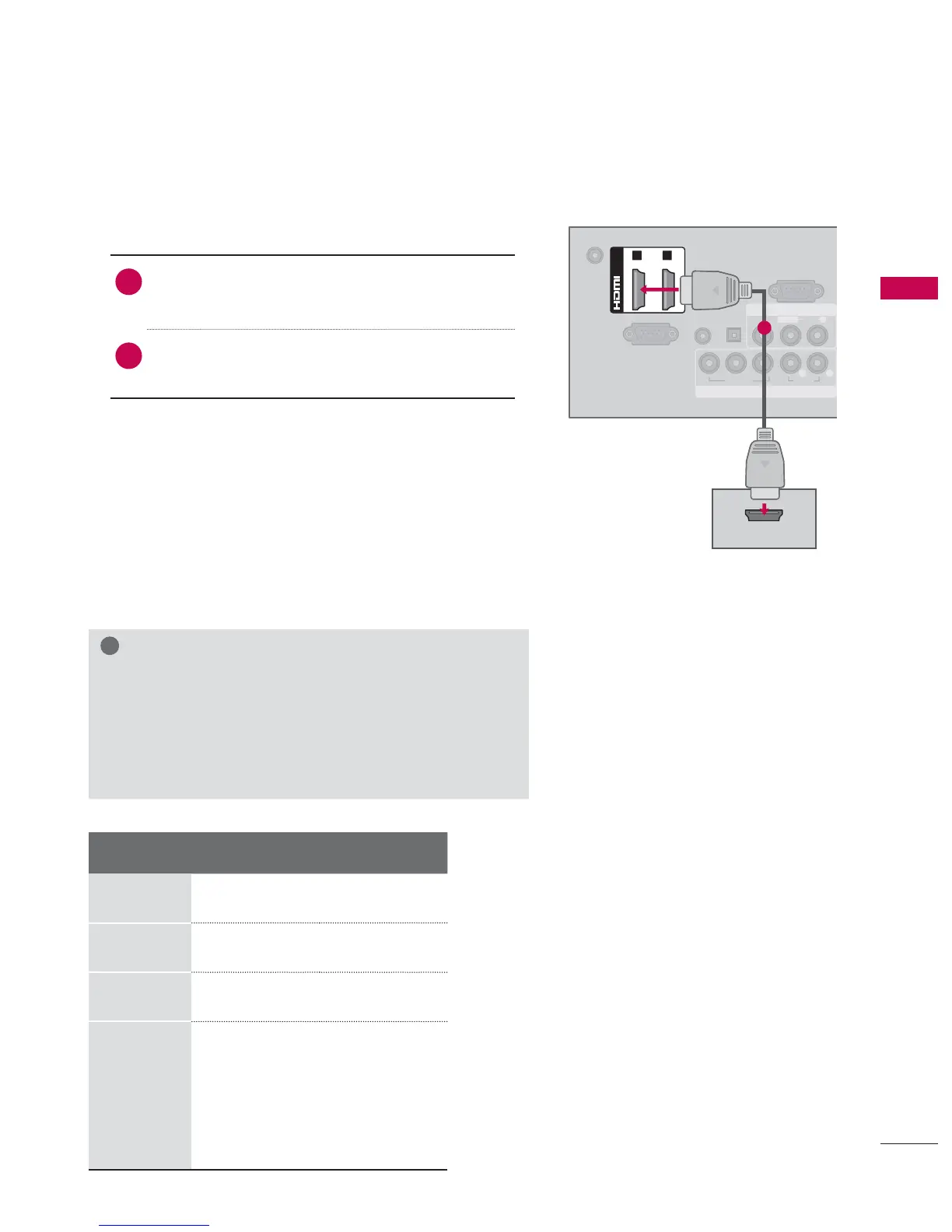

HDMI Connection
1. How to connect
1
Connect the digital set-top box to HDMI/DVI IN
1, 2, or 3* jack on the TV.
2
No separate audio connection is necessary.
HDMI supports both audio and video.
2. How to use
ᯫ
Turn on the digital set-top box.
(
Refer to the owner’s manual for the digital set-
top box.
)
ᯫ
Select the HDMI1, HDMI2, or HDMI3* input source
on the TV using the
INPUT
button on the remote
control.
!
NOTE
Check HDMI cable over version 1.3.
If the HDMI cables don’t support HDMI version 1.3, it
can cause flickers or no screen display. In this case use
the latest cables that support HDMI version 1.3.
HDMI Audio Supported Format: Dolby Digital (32 KHz, 44.1
KHz, 48 KHz), Linear PCM (32 KHz, 44.1 KHz, 48 KHz)
HDMI-DTV
* HDMI3: For 26LE5300
Resolution
Horizontal
Frequency
(
KHz
)
Vertical
Frequency
(
KHz
)
720x480p
31.47 59.94
31.50 60.00
1280x720p
44.96 59.94
45.00 60.00
1920x1080i
33.72 59.94
33.75 60.00
1920x1080p
26.97 23.976
27.00 24.00
33.71 29.97
33.75 30.00
67.432 59.94
67.50 60.00
DC-IN
RGB IN (PC)
AUDIO IN
RGB/DVI
OPTICAL
D GITAL
AUDIO OUT
COMPONENT IN
AV IN
RS-232C IN
(
CONTROL&SERVICE)
VID O
AUDIO
L(MONO)
R
VIDEO
AUDIO
YP
B
P
R
L R
(DVI)
/DVI IN
1 2
HDMI OUTPUT
1
To Next Page
