LG 32LD320 User Manual

39
EXTERNAL EQUIPMENT SETUP
DVD SETUP
Component Input ports
To get better picture quality, connect a DVD player to
the component input ports as shown below.
1. How to connect
1
Connect the video outputs
(
Y, P B, PR
)
of the
DVD to the COMPONENT IN VIDEO jacks on
the TV.
Match the jack colors
(
Y = green, P
B = blue, and
P
R = red
)
.
2
Connect the audio outputs of the DVD to the
COMPONENT IN AUDIO jacks on the TV.
2. How to use
ᯫ
Turn on the DVD player, insert a DVD.
ᯫ
Select the Component input source on the TV
using the INPUT button on the remote control.
ᯫ
Refer to the DVD player’s manual for operating
instructions.

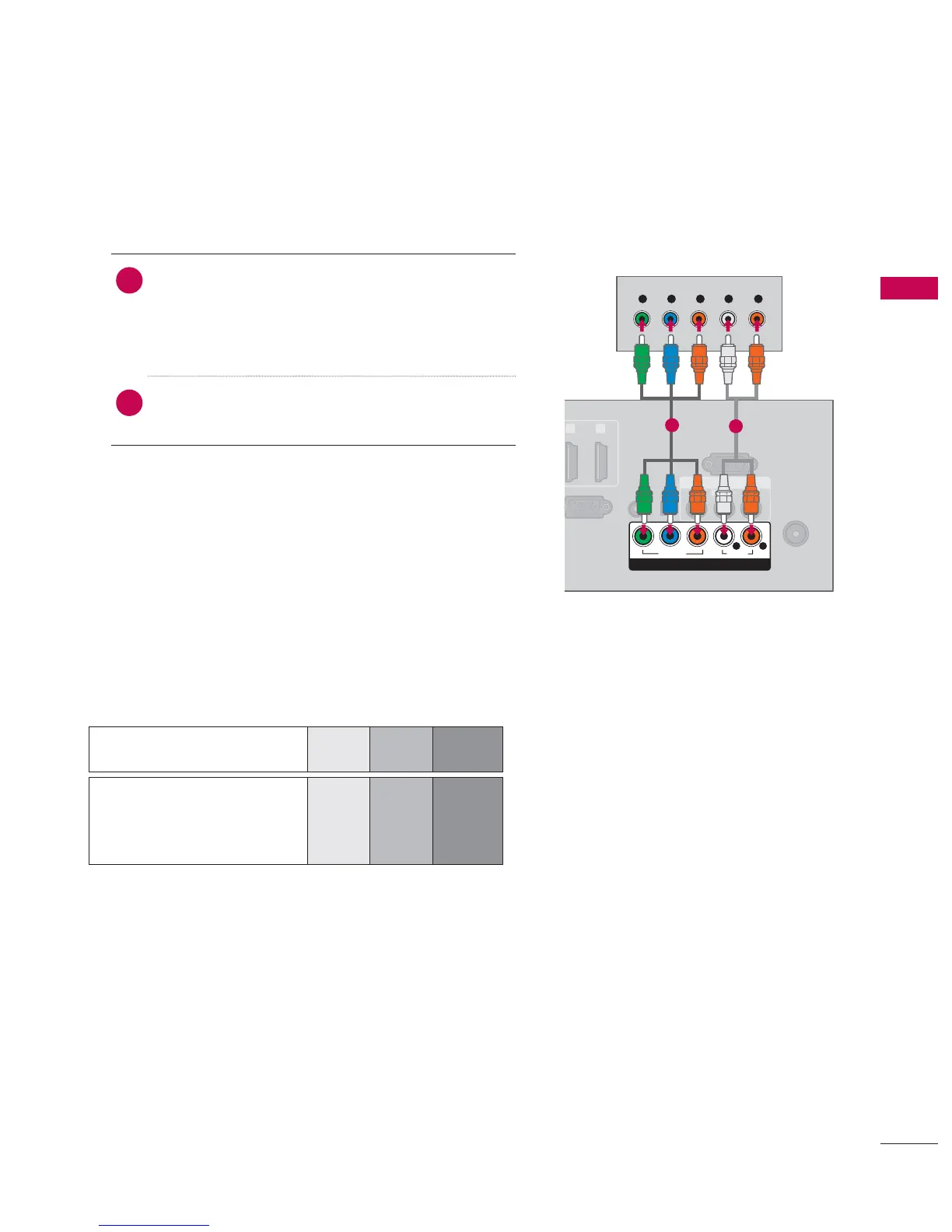

Component Connection
Component ports on the
TV
YPB PR
Video output ports
on DVD player
YPB PR
YB-YR-Y
YCbCr
YPbPr
ANTENNA/
CABLE IN
R
GB IN (PC)
AUDIO
RGB
(DV )
OPTI
DG
AUD T
A N
RS-232C IN
( CONTROL&SERVICE)
1 2
V AU
L(
VIDEO
AUDIO
YP B P R
L R
COMPONENT IN
Y L RP B P R
1
2

LG 32LD320 Specifications

General

Display diagonal	32 \
Progressive scan	Yes
Display technology	LCD
Native aspect ratio	16:9
Contrast ratio (dynamic)	30000:1
RS-232 ports	1
Product color	Black
Panel mounting interface	100 x 100 mm
Power consumption (standby)	0.5 W
Power consumption (typical)	94.3 W
RMS rated power	20 W

Weight and Dimensions

Depth (with stand)	224 mm
Width (with stand)	805 mm
Height (with stand)	583 mm
Weight (with stand)	11500 g
Depth (without stand)	79.9 mm
Height (without stand)	528 mm
Weight (without stand)	10400 g
