LG 32LD320 User Manual

41
EXTERNAL EQUIPMENT SETUP

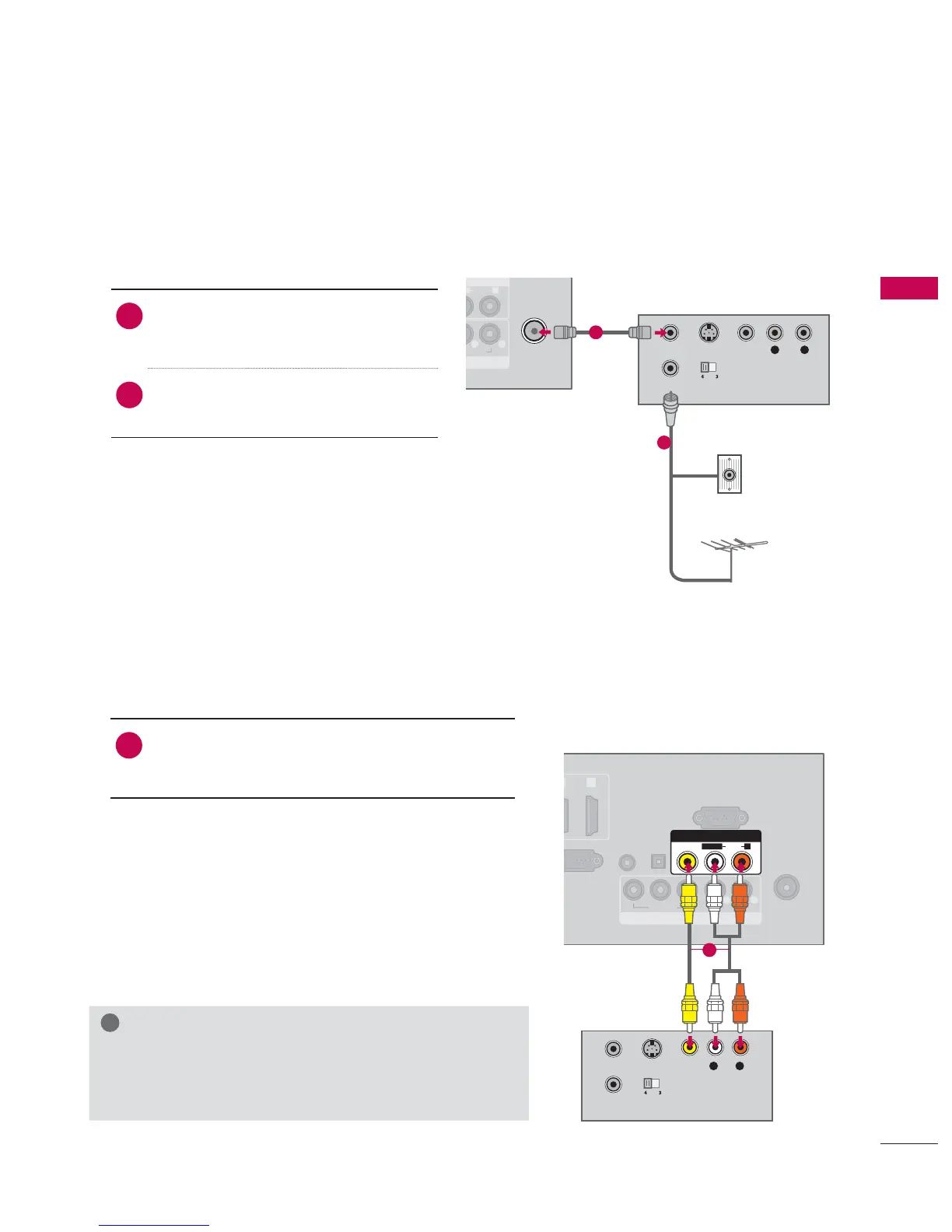

VCR SETUP
Antenna Connection
N
N
AUDIO
O
)
R
AUDIO
L R
ANTENNA/
CABLE IN
L R
S-VIDEO VIDEO
AUDIO
OUTPUT
SWITCH
ANT IN
ANT OUT
Wall Jack
Antenna
1. How to connect
1
Connect the RF antenna out socket
of the VCR to the ANTENNA/CABLE
IN socket on the TV.
2
Connect the antenna cable to the RF
antenna in socket of the VCR.
2. How to use
ᯫ
Set VCR output switch to 3 or 4 and
then tune TV to the same channel num-
ber.
ᯫ
Insert a video tape into the VCR and
press PLAY on the VCR (Refer to the
VCR owner’s manual).
1
2
Composite (RCA) Connection
ANTENNA/
CABLE IN
B
IN (PC)
AUDIO IN
RGB/DVI
)
OPTICAL
DIG TAL
AUDIO OUT
COMP NEN N
RS-232C IN
( CONTROL&SERVICE)
2
VIDEO
AUDI
YP B P R
L R
AV IN
VIDEO AUDIO
L(MONO)
R
S-VIDEO
OUTPUT
SWITCH
ANT IN
ANT OUT
L R
VIDEO
AUDIO
1. How to connect
1
Connect the AUDIO/VIDEO jacks between TV
and VCR. Match the jack colors (Video = yellow,
Audio Left = white, and Audio Right = red)
2. How to use
ᯫ
Insert a video tape into the VCR and press PLAY
on the VCR.
(
Refer to the VCR owner’s manual.
)
ᯫ
Select the AV or AV1/2* input source on the TV
using the INPUT button on the remote control.
!
NOTE
 If you have a mono VCR, connect the audio cable
from the VCR to the AUDIO L(MONO) jack of the TV.
1
* AV2: Except 19/22/26LE5300

LG 32LD320 Specifications

General

Display diagonal	32 \
Progressive scan	Yes
Display technology	LCD
Native aspect ratio	16:9
Contrast ratio (dynamic)	30000:1
RS-232 ports	1
Product color	Black
Panel mounting interface	100 x 100 mm
Power consumption (standby)	0.5 W
Power consumption (typical)	94.3 W
RMS rated power	20 W

Weight and Dimensions

Depth (with stand)	224 mm
Width (with stand)	805 mm
Height (with stand)	583 mm
Weight (with stand)	11500 g
Depth (without stand)	79.9 mm
Height (without stand)	528 mm
Weight (without stand)	10400 g
