EXTERNAL EQUIPMENT SETUP
EXTERNAL EQUIPMENT SETUP
44
ANTENNA
CABLE IN
RGB IN (PC)
AUDIO IN
RGB/DVI
(DV )
/DVI I
N
COMPONENT IN
AV IN
RS-232C IN
( CONTROL&SERVICE)
1 2
VIDEO AUDIO
L(MONO)
R
EO
AUDIO
YP B P R
L R
OPTICAL
D GITAL
AUDIO OUT
AUDIO OUT CONNECTION
Send the TV’s audio to external audio equipment via the Audio Output port.
If you want to enjoy digital broadcasting through 5.1-channel speakers, connect the OPTICAL DIGITAL
AUDIO OUT terminal on the back of TV to a Home Theater (or amp).
!
NOTE
 When connecting with external audio equipment, such
as amplifiers or speakers, you can turn the TV speakers
off in the menu. (
p.119)
CAUTION
 Do not look into the optical output port. Looking at
the laser beam may damage your vision.
 Audio with ACP (Audio Copy Protection) function may
block digital audio output
.

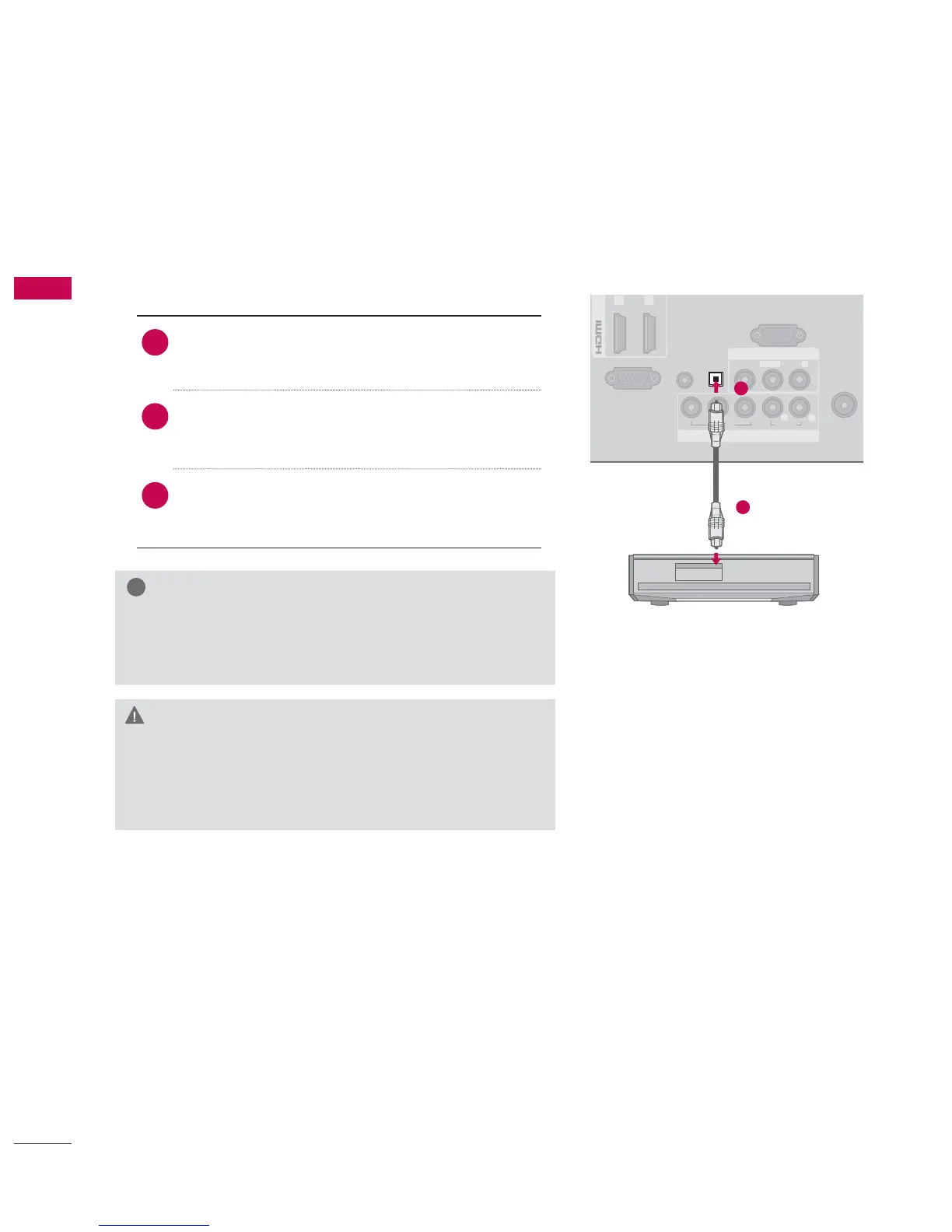

1. How to connect
1
Connect one end of the optical cable to the
TV port of OPTICAL DIGITAL AUDIO OUT.
2
Connect the other end of the optical cable to
the digital audio input on the audio equip-
ment.
3
Set the “TV Speaker option - Off” in the
AUDIO menu. (
p.119). See the external audio
equipment instruction manual for operation.
1
2

LG 32LD320 Specifications

General

Display diagonal	32 \
Progressive scan	Yes
Display technology	LCD
Native aspect ratio	16:9
Contrast ratio (dynamic)	30000:1
RS-232 ports	1
Product color	Black
Panel mounting interface	100 x 100 mm
Power consumption (standby)	0.5 W
Power consumption (typical)	94.3 W
RMS rated power	20 W

Weight and Dimensions

Depth (with stand)	224 mm
Width (with stand)	805 mm
Height (with stand)	583 mm
Weight (with stand)	11500 g
Depth (without stand)	79.9 mm
Height (without stand)	528 mm
Weight (without stand)	10400 g
