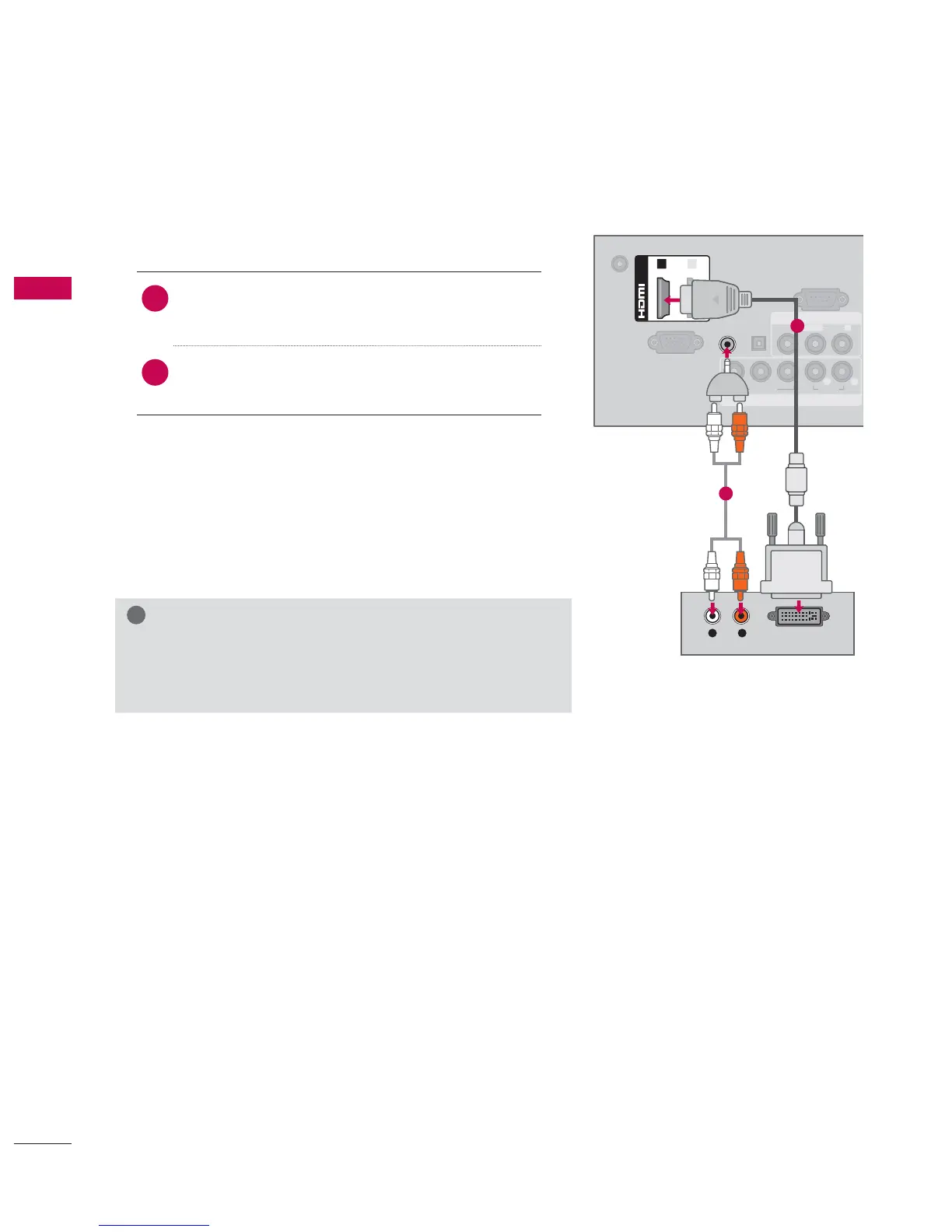

DVI to HDMI Connection
1. How to connect
1
Connect the DVI output of the digital set-top
box to the HDMI/DVI IN 1 jack on the TV.
2
Connect the digital set-top box audio output to
the AUDIO IN
(
RGB/DVI
)
jack on the TV.
2. How to use
ᯫ
Turn on the digital set-top box.
(
Refer to the owner’s manual for the digital set-
top box.
)
ᯫ
Select the HDMI1 input source on the TV using
the
INPUT
button on the remote control.
!
NOTE
 A DVI to HDMI cable or adapter is required for this con-
nection. DVI doesn't support audio, so a separate audio
connection is necessary.
DC-IN
RGB IN (PC)
AUDIO IN
RGB/DVI
OPTICAL
DIGITAL
AUDIO OUT
COMPO ENT IN
AV IN
RS-232C IN
( CONTROL&SERVICE)
VIDE AUDIO
L(MONO)
R
VIDEO
AUDIO
YP B P R
L R
(DVI)
/DVI IN
1 2
L R
DVI OUTPUT
AUDIO
1
2

LG 32LD320 Specifications

General

Display diagonal	32 \
Progressive scan	Yes
Display technology	LCD
Native aspect ratio	16:9
Contrast ratio (dynamic)	30000:1
RS-232 ports	1
Product color	Black
Panel mounting interface	100 x 100 mm
Power consumption (standby)	0.5 W
Power consumption (typical)	94.3 W
RMS rated power	20 W

Weight and Dimensions

Depth (with stand)	224 mm
Width (with stand)	805 mm
Height (with stand)	583 mm
Weight (with stand)	11500 g
Depth (without stand)	79.9 mm
Height (without stand)	528 mm
Weight (without stand)	10400 g
