PREPARATION
PREPARATION
22

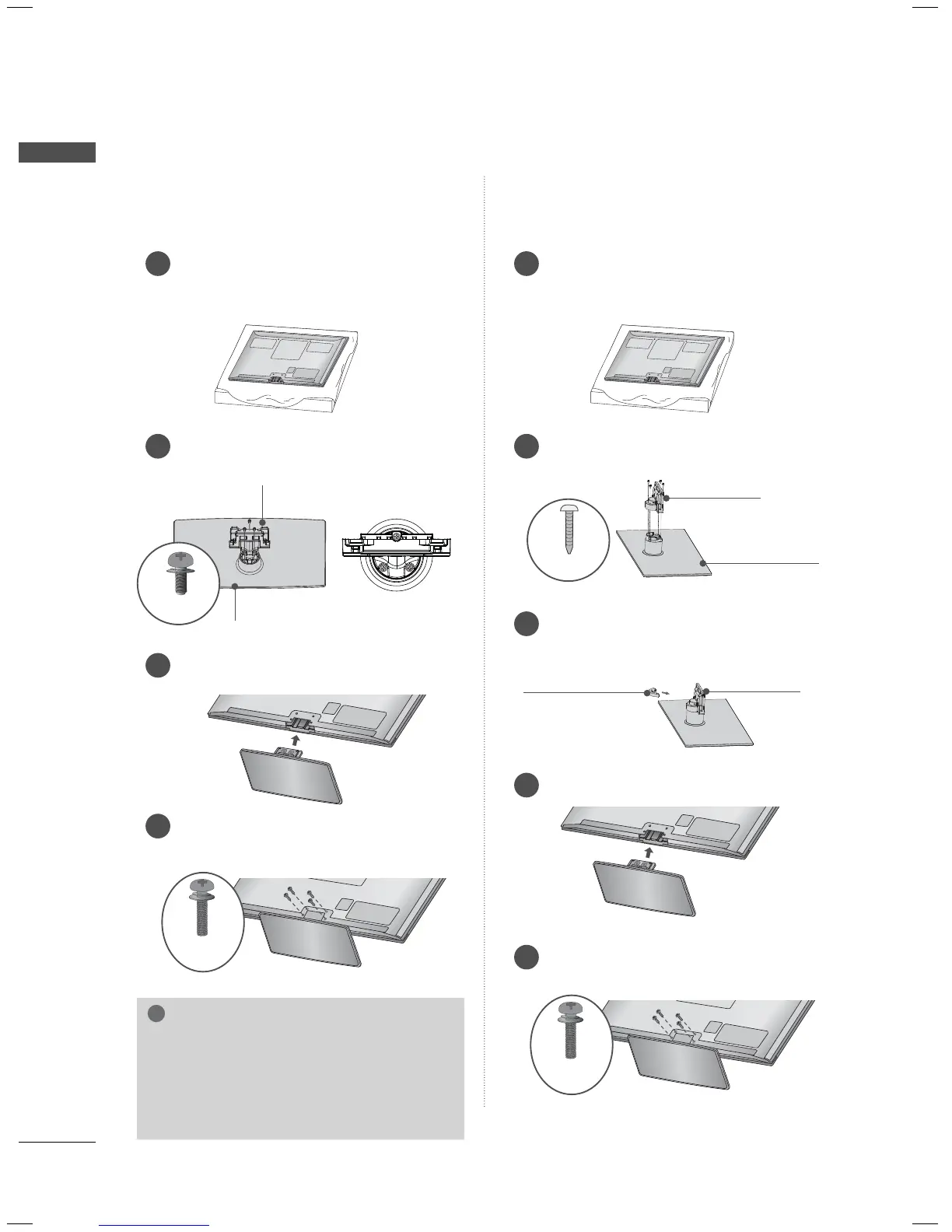

STAND INSTRUCTIONS
(For 50/60PK550, 50/60PK950, 50/60PX950)
ꔛ
Image shown may differ from your TV.
INSTALLATION (For 50PK550)
INSTALLATION (For 50PK950, 50PX950)
NOTE
► When assembling the desk type stand,
make sure the screws are fully tightened (If
not tightened fully, the TV can tilt forward
after the product installation). Do not over
tighten.
1
Carefully place the TV screen side down on
a cushioned surface to protect the screen
from damage.
1
Carefully place the TV screen side down on
a cushioned surface to protect the screen
from damage.
2
Assemble the parts of the STAND BODY
with the STAND BASE of the TV.
2
Assemble the parts of the STAND BODY
with the STAND BASE of the TV.
3
Assemble the parts of the CABLE
MANAGEMENT CLIP with the STAND
BODY.
3
Assemble the TV as shown.
4
Assemble the TV as shown.
4
Fix the 4 screws securely using the holes
in the back of the TV.
5
Fix the 4 screws securely using the holes
in the back of the TV.
STAND BASE
STAND BASE
STAND BODY
STAND BODY
STAND BODY
CABLE
MANAGEMENT
CLIP
M5 x 14
M4 x 14
M4 x 28
M4 x 28
To Next Page
