LG 42LE5400 User Manual

39
EXTERNAL EQUIPMENT SETUP
DVD SETUP
Component Input ports
To get better picture quality, connect a DVD player to
the component input ports as shown below.

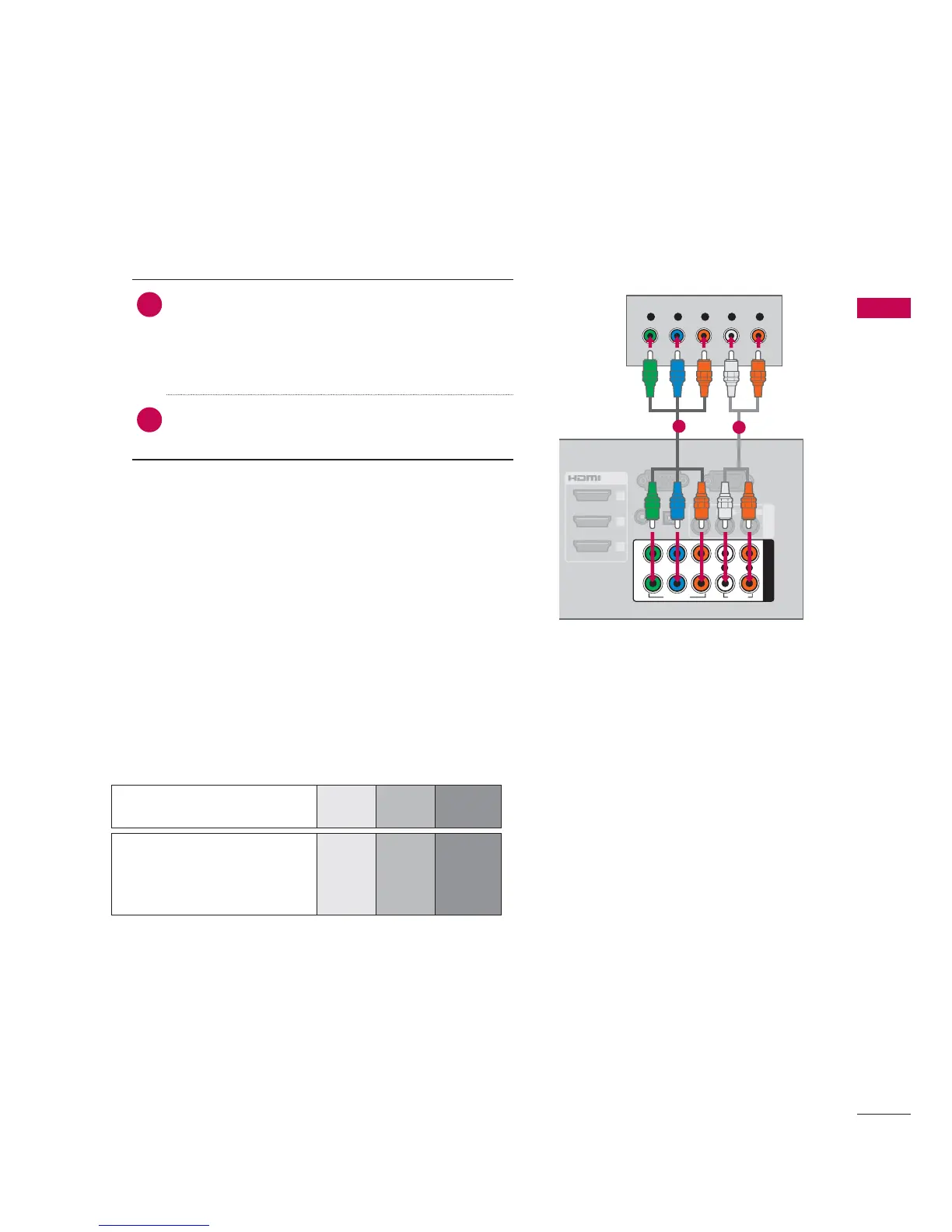

1. How to connect
1
Connect the video outputs
(
Y, P B, PR
)
of the
DVD to the COMPONENT IN VIDEO 1 or 2 jacks
on the TV.
Match the jack colors
(
Y = green, P
B = blue, and
P
R = red
)
.
2
Connect the audio outputs of the DVD to the
COMPONENT IN AUDIO 1 or 2 jacks on the TV.
2. How to use
󰪗
Turn on the DVD player, insert a DVD.
󰪗
Select the Component1 or Component2 input
source on the TV using the
INPUT button on the
remote control.
󰪗
Refer to the DVD player’s manual for operating
instructions.
Component Connection
Component ports on the
TV
YPB PR
Video output ports
on DVD player
YPB PR
YB-YR-Y
YCbCr
YPbPr
RGB IN (PC)
(RGB/DVI)
RS-232C IN
( CONTROL&SERVICE)
OPTICAL
DIGITAL
/DVI IN
2
3
1
VIDEO AUDIO
L(MONO)
R
AV IN 1
AUDIO IN AUDIO OUT
VIDEO
AUDIO
COMPONENT IN
YP B P R
L R
2
1
Y L RP B P R
1
2

LG 42LE5400 Specifications

General

Display diagonal	42 \
Contrast ratio (dynamic)	4000000:1
Viewing angle, horizontal	78 °
Product color	Black
Panel mounting interface	200 x 200 mm
Auto channel search	Yes
Audio system	2 Way 4 Speakers
RMS rated power	20 W
Number of speakers	2
HDMI ports quantity	4
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Digital audio optical out	1

Weight and Dimensions

Depth (with stand)	- mm
Height (with stand)	690.9 mm
Weight (with stand)	19500 g
Depth (without stand)	30.48 mm
Width (without stand)	1016 mm
Height (without stand)	629.9 mm
Weight (without stand)	16690 g
