EXTERNAL CONTROL DEVICE SETUP
EXTERNAL CONTROL DEVICE SETUP

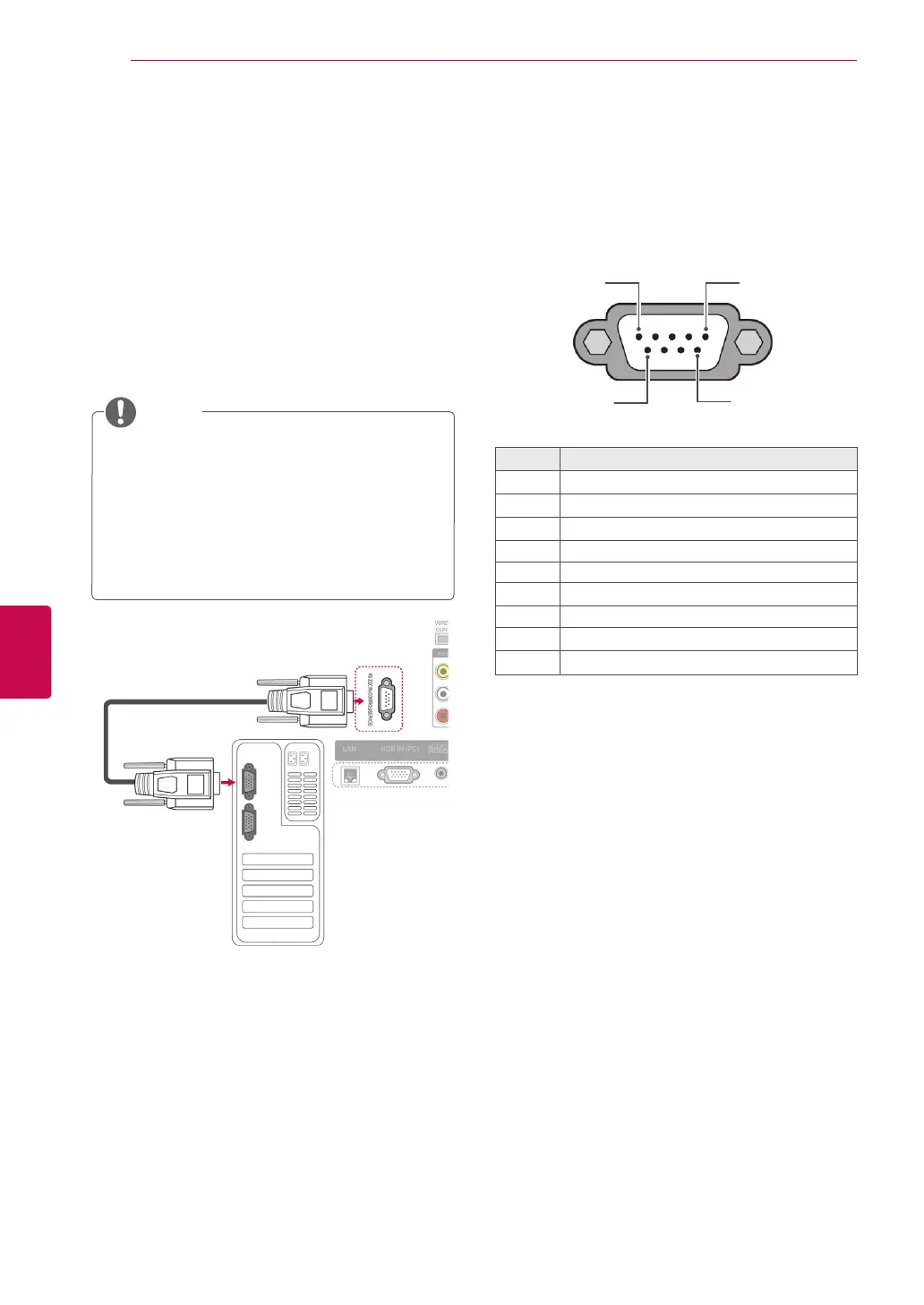

RS-232C Setup
Connect the RS-232C (serial port) input jack to an
external control device (such as a computer or an
A/V control system) to control the product’s func-
tions externally.
Connect the serial port of the control device to the
RS-232C jack on the product back panel.
Type of connector;
D-Sub 9-Pin Male
1 5
6
9
No. Pin name
1 No connection
2 RXD (Receive data)
3 TXD (Transmit data)
4 DTR (DTE side ready)
5 GND
6 DSR (DCE side ready)
7 RTS (Ready to send)
8 CTS (Clear to send)
9 No Connection
y RS-232C on this TV is intended to be used
with third party RS-232C control hardware
and software. The instructions below are
provided to help with programming software
or to test functionality using telenet software.
y RS-232C connection cables are not supplied
with the product.
NOTE

LG 42LW650T Specifications

General

Display diagonal	42 \
Display brightness	400 cd/m²
Native aspect ratio	16:9
LED backlighting type	-
Supported video modes	1080i, 1080p, 720p
Contrast ratio (dynamic)	9000000:1
3D	Yes
Number of speakers	2
DVI port	No
HDMI ports quantity	4
DVI-D ports quantity	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Component video (YPbPr/YCbCr) in	1
Smart modes	Cinema, Game
Panel mounting interface	400 x 400 mm
Power consumption (standby)	0.2 W
Power consumption (typical)	89 W

Weight and Dimensions

Depth (with stand)	255 mm
Height (with stand)	686 mm
Weight (with stand)	16200 g
Depth (without stand)	29.9 mm
Width (without stand)	1009 mm
Height (without stand)	622 mm
Weight (without stand)	13400 g
