111
APPENDIX

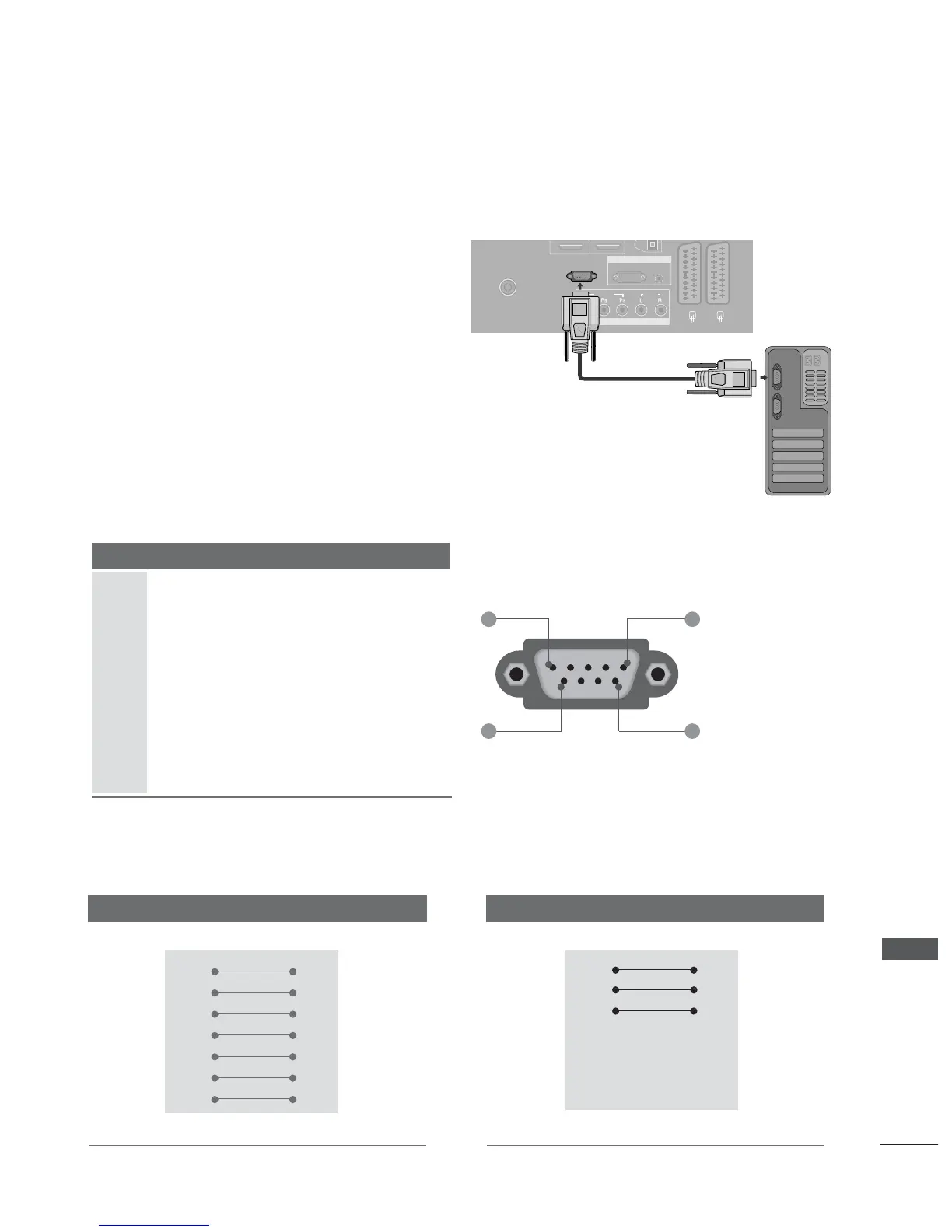

EXTERNAL CONTROL DEVICE SETUP
RS-232C Setup
Connect the RS-232C (serial port) input jack to an
external control device (such as a computer or an A/V
control system) to control the product’s functions
externally.
Connect the serial port of the control device to the
RS-232C jack on the product back panel.
Note: RS-232C connection cables are not supplied
with the product.
Type of Connector; D-Sub 9-Pin Male
No. Pin Name
1 No connection
2 RXD
(
Receive data
)
3TXD
(
Transmit data
)
4DTR
(
DTE side ready
)
5 GND
6 DSR
(
DCE side ready
)
7RTS
(
Ready to send
)
8 CTS
(
Clear to send
)
9No Connection
To Next Page
