EXTERNAL EQUIPMENT SETUP
EXTERNAL EQUIPMENT SETUP

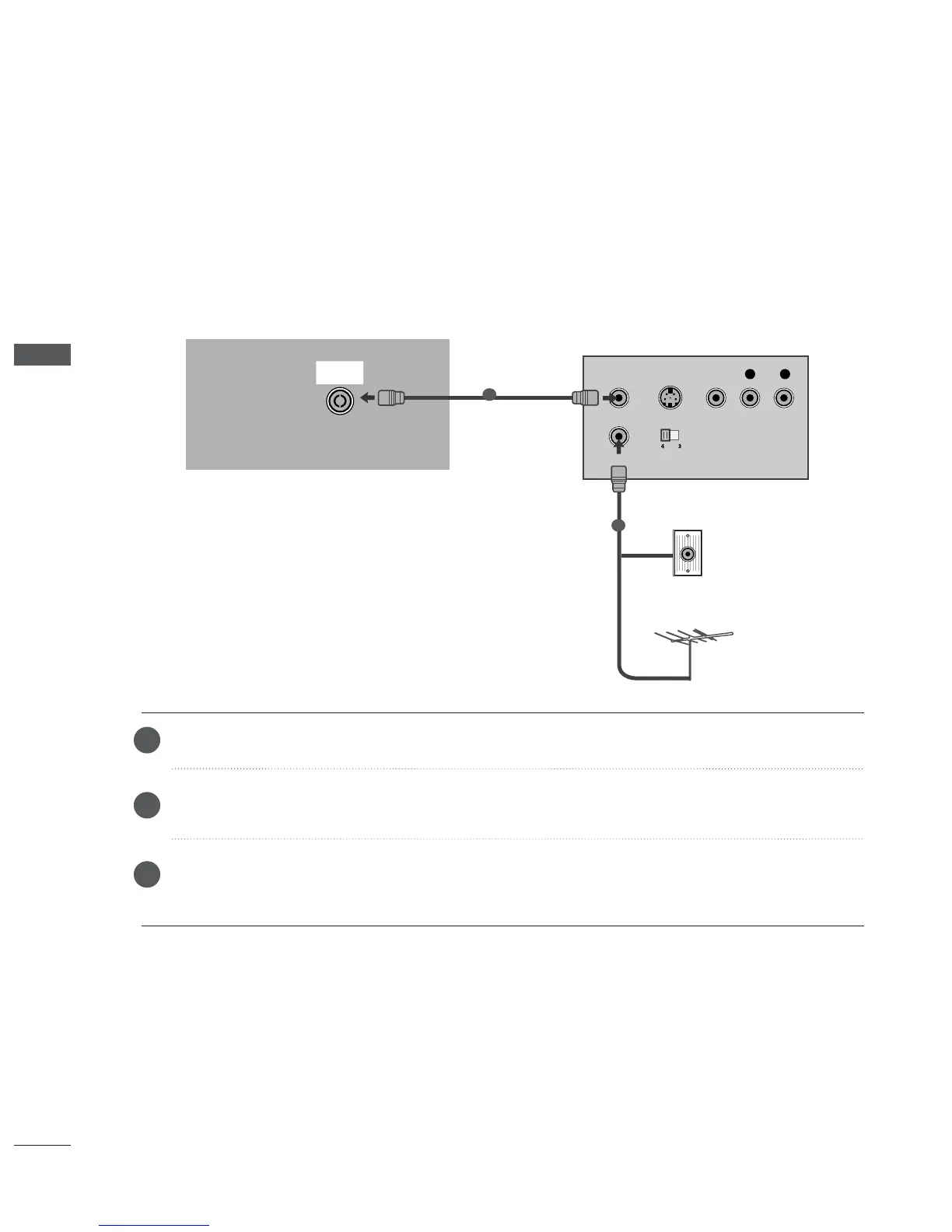

When connecting with an antenna
■
To avoid picture noise (interference), leave an adequate distance between the VCR and TV.
■
If the 4:3 picture format keeps for a long time the fixed images on the sides of the screen may remain visible
on the screen. (Only Plasma TV models)
VIDEOVIDEO
EJECT
PCMCIA
CARD SLOT
RS-232C INRS-232C IN
(CONTROL & SERVICE)
AUDIOAUDIO
OUTPUT
SWITCH
ANT IN
R
S-VIDEO VIDEO
ANT OUT
L
AV 1 AV 2
EJECT
PCMCIA
CARD SLOT
RS-232C IN
ANTENNA
IN
AUDIO
VIDEO
AV IN 3
L/MONO
R
AUDIO
VIDEO
S-VIDEO
AV IN 3
L/MONO
R
AUDIO
VIDEO
S-VIDEO
ANTENNA
IN
Wall Jack
Antenna
Connect the
AANNTT OOUUTT
socket of the VCR to the
AANNTTEENNNNAA IINN
socket on the set.
Connect the antenna cable to the
AANNTT IINN
socket of the VCR.
Press the
PPLLAAYY
button on the VCR and match the appropriate programme between the TV and VCR for
viewing.
VCR SETUP
1
2
2
3
1
