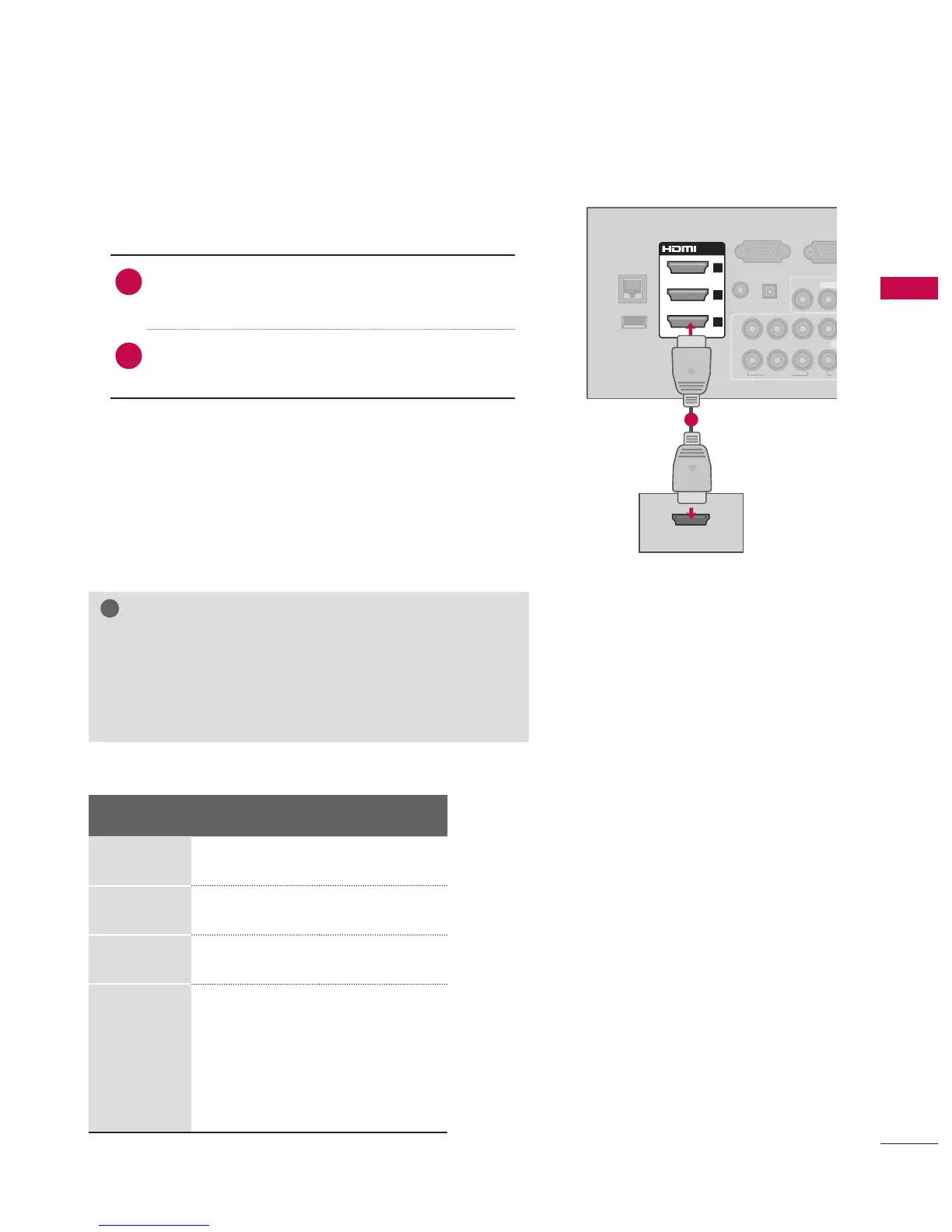

EXTERNAL EQUIPMENT SETUP
HDMI Connection
1. How to connect
1
Connect the digital set-top box to HDMI/DVI IN
1, 2, 3, or 4 jack on the TV.
2
No separate audio connection is necessary.
HDMI supports both audio and video.
2. How to use
󰮌
Turn on the digital set-top box.
(
Refer to the owner’s manual for the digital set-
top box.
)
󰮌
Select the HDMI1, HDMI2, HDMI3, or HDMI4 input
source on the TV using the INPUT button on the
remote control.
!
?
!
?
NOTE
► If an HDMI cable doesn’t support High Speed HDMI,
it can cause flickers or no screen display. In this case
use the latest cables that support High Speed HDMI.
► HDMI Audio Supported Format: Dolby Digital (32 KHz, 44.1
KHz, 48 KHz), Linear PCM (32 KHz, 44.1 KHz, 48 KHz)
HDMI-DTV
Resolution
Horizontal
Frequency
(
KHz
)
Vertical
Frequency
(
Hz
)
720x480p
31.47 59.94
31.50 60.00
1280x720p
44.96 59.94
45.00 60.00
1920x1080i
33.72 59.94
33.75 60.00
1920x1080p
26.97 23.976
27.00 24.00
33.71 29.97
33.75 30.00
67.432 59.94
67.50 60.00
L R
DVI OUTPUT
AUDIO
HDMI OUTPUT
RGB IN (PC)
LAN
WIRELESS
CONTROL
(RGB/DVI)
RS-232C IN
( SERVICE ONLY)
OPTICAL
DIGITAL
/DVI IN
2
3
1
VIDEO AUDIO
L(MONO)
R
AV IN 1
AUDIO IN AUDIO OUT
RGB IN (PC)
LAN
WIRELESS
CONTROL
(RGB/DVI)
VIDEO
AUDIO
L(MONO
)
R
VIDEO
AUDIO
COMPONENT INAV IN 1
AUDIO IN AUDIO OUT
2
1
VIDEO
AUDIO
COMPONENT IN
Y P
B
P
R
L R
2
1
Y L RPB PR
/DVI IN
2
3
1
RGB IN (PC)
LAN
WIRELESS
CONTROL
RS-232C IN
( SERVICE ONLY)
VIDEO AUDIO
L(MONO)
R
VIDEO
AUDIO
COMPONENT INAV IN 1
Y PB PR
L R
AUDIO OUT
2
1
/DVI IN
2
3
1
(RGB/DVI)
AUDIO IN
OPTICAL DIGITAL
ꔡ
Y PB PR
L
R
OPTICAL DIGITAL
RS-232C IN
( SER
VICE ONLY)
ꔡ
ꔡ
1

LG 55LD520 Specifications

General

Screen Size	55 inches
Display Type	LCD
Refresh Rate	60 Hz
Aspect Ratio	16:9
HDMI Ports	3
USB Ports	1
Component Video Input	1
Composite Video Input	1
Resolution	1920 x 1080 pixels
Inputs	HDMI, USB, Component, Composite
