47
EXTERNAL EQUIPMENT SETUP
RGB IN (PC)
LAN
WIRELESS
CONTRO
L
(RGB/DVI)
/DVI IN
2
3
1
VIDEO AUDIO
L(MONO)
R
VIDEO
AUDIO
COMPONENT INAV IN 1
AUDIO IN
2
1
AUDIO OUT
Y P
B
P
R
L R
OPTICAL DIGITAL
RS-232C IN
( SERVICE ONLY)
ꔡ
AUDIO OUT CONNECTION
Send the TV’s audio to external audio equipment via the Audio Output port.
If you want to enjoy digital broadcasting through 5.1-channel speakers, connect the OPTICAL DIGITAL
AUDIO OUT terminal on the back of TV to a Home Theater (or amp).
!
?
!
?
NOTE
► When connecting with external audio equipment, such
as amplifiers or speakers, you can turn the TV speakers
off in the menu. (►p.150)
!
?
!
?
CAUTION
► Do not look into the optical output port. Looking at
the laser beam may damage your vision.
► Audio with ACP (Audio Copy Protection) function may
block digital audio output.

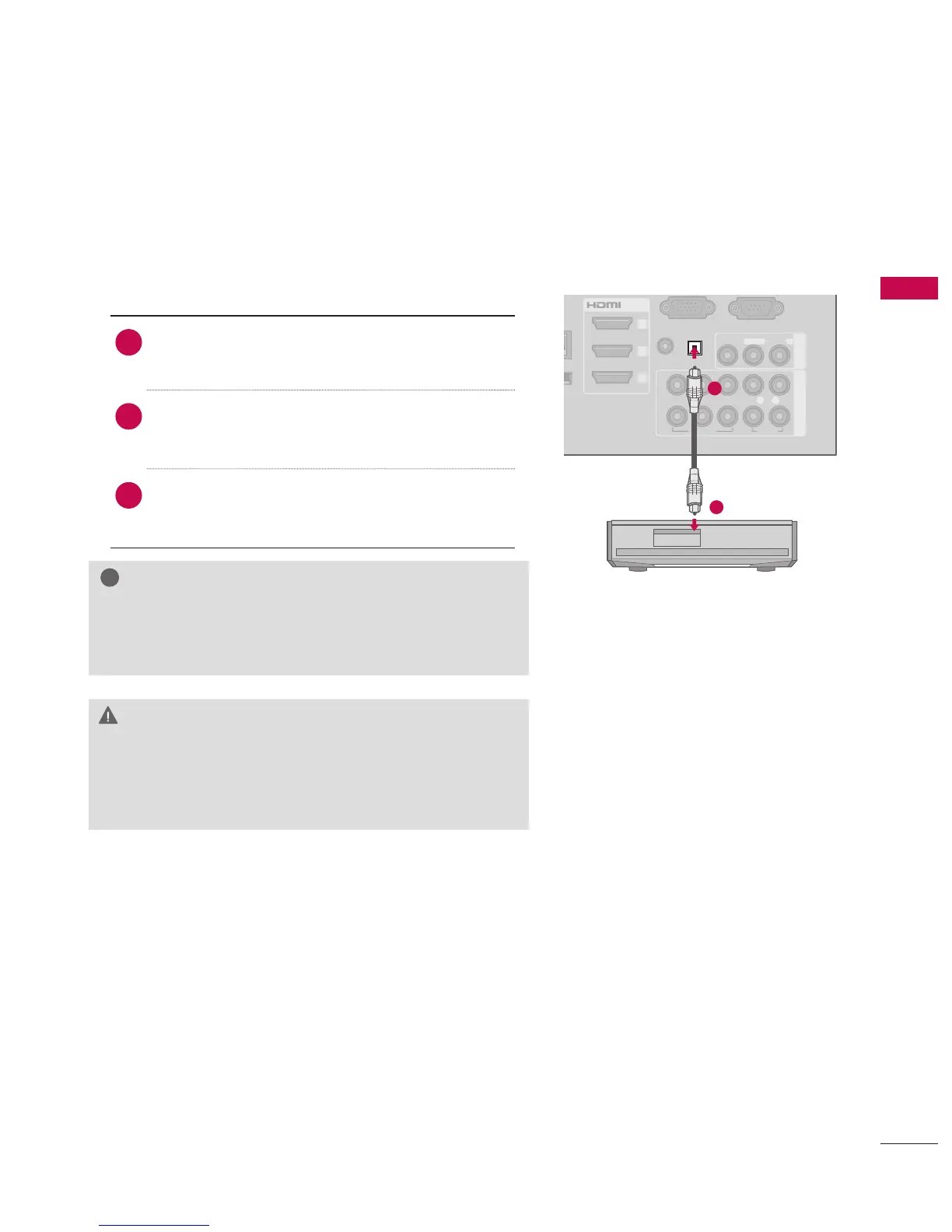

1. How to connect
1
Connect one end of the optical cable to the
TV port of OPTICAL DIGITAL AUDIO OUT.
2
Connect the other end of the optical cable to
the digital audio input on the audio equip-
ment.
3
Set the “TV Speaker option - Off” in the
AUDIO menu. (►p.150). See the external audio
equipment instruction manual for operation.
1
2
