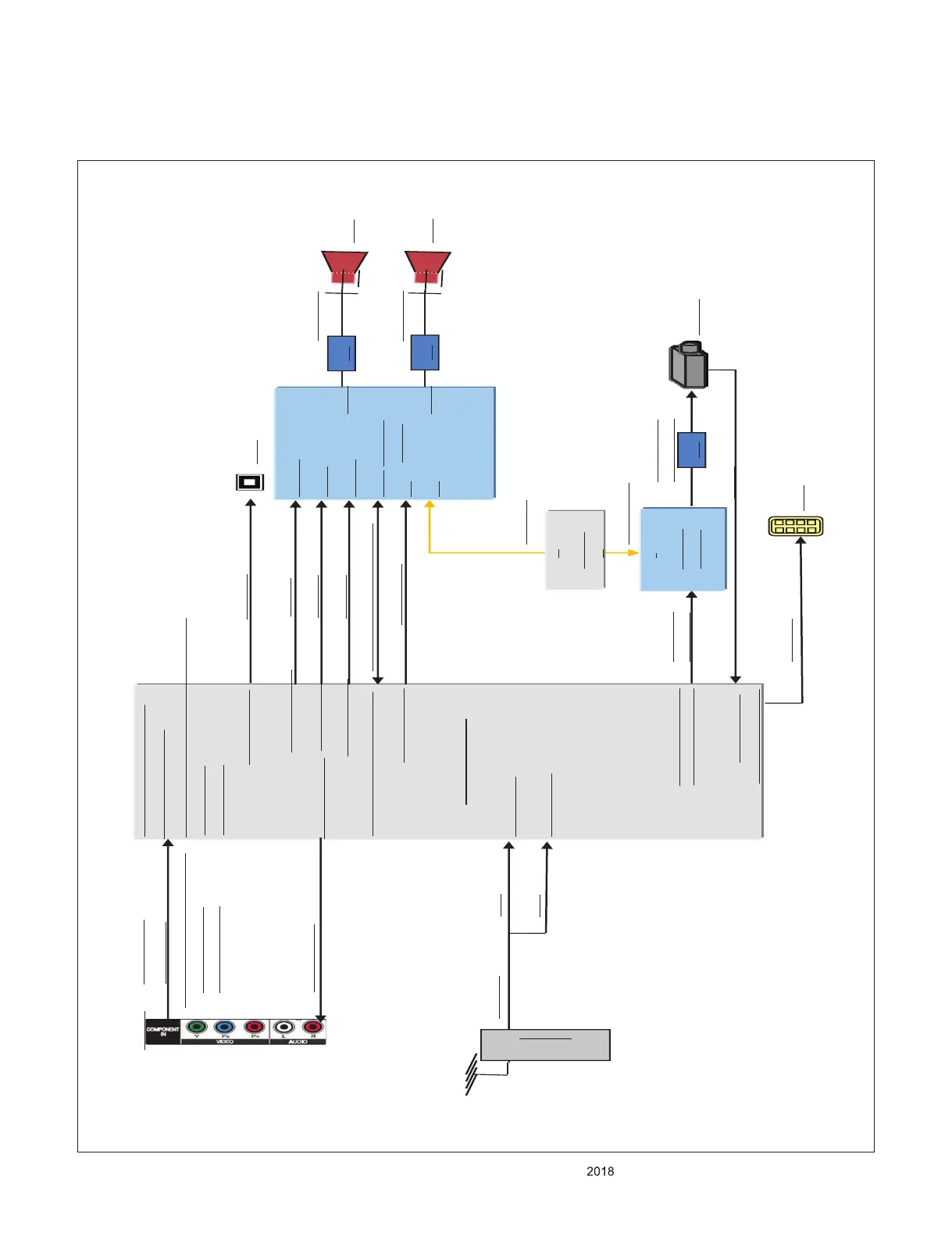

5. Video / Audio IN/OUT
HDMI_ARC
ST_GPIO_23_H0_ARC[AD8]
[AL12] PAD_SIFP
I2C_SDA_0_AMP1 / I2C_SCL_0_AMP1
AUD_SCK
AMP_RESET_N
AUDA_OUTR
AUDA_OUTL
H/P Jack
SIDE_HP_MUTE
[M3]PAD_EARPHONE_OUTR
[M2]PAD_EARPHONE_OUTL
TU_SIF_TU
H/P AMP
(IC6300)
LPF
[E10]PAD_GPIO7_PM
SPDIF_OUT
HP_LOUT_JACK
HP_ROUT_JACK
LPF
LPF
Main
IC
Tuner
AUD_LRCH
AUD_LRCK
AMP_MUTE
SPK_R+ / R-
SPK_L+ / L-
MAIN AMP
(IC5800)
MICOM
SPK L
SPK R
22
26
[38] CLK_I
[8] WCK
[7] SDATA
[10,11]
[36]
[12]
[30, 33]
[18, 21]
AV/COMP
HDMI2
SPDIF
HP_DET
[AL15]PAD_GPIO21
[
Y3]PADA_CVBS_OUT1
SIF_P
SIF_N
[AM12] PAD_SIFM
DTV/MNT_V_OUT
COMP1_Y/CVBS
[V2]PADA_GIN1P / [Y1] PADA_CVBS1
AV1_CVBS_DET
[
D3]PAD_I2S_OUT_SD2(GPIO
)
COMP1_Pb / COMP1_Pr / COMP1_DET
[W2]PADA_RIN1P / [v3]PADA_BIN1P / [C1] PAD_I2S_OUT_SD1
COMP1/AV1/DVI_L_IN
COMP1/AV1/DVI_R_IN
[
L2]PAD_LINEIN_L0
[
L1]PAD_LINEIN_R0
[
E5]PAD_SPDIF_OUT
[E2]PAD_I2S_OUT_WS
[D1]PAD_I2S_OUT_SD
[D2]PAD_I2S_OUT_BCK
[F2]PAD_DDCR_DA / [F3]PAD_DDCR_CK
5
