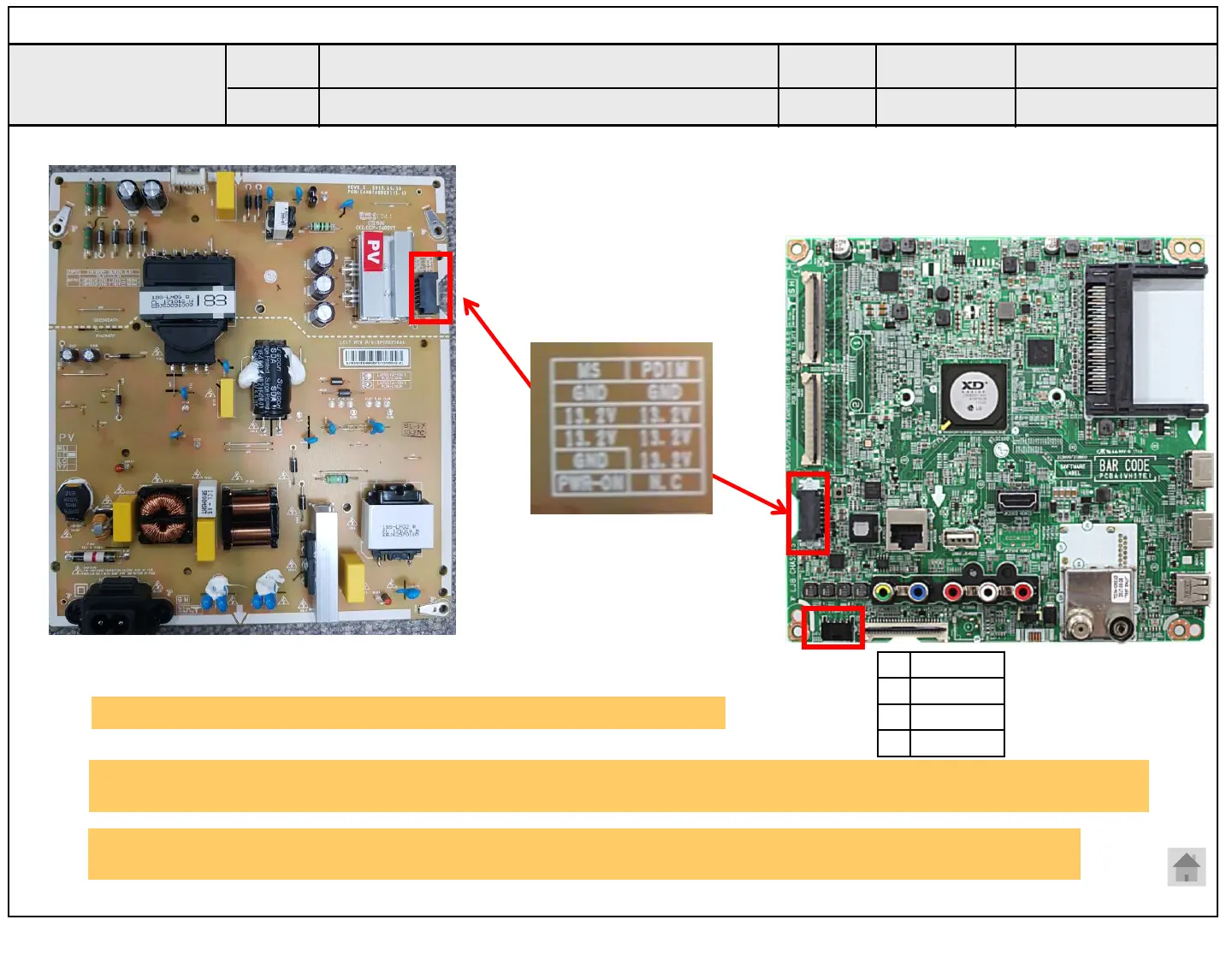

Checking order when there is no audio
1.Check the contact condition of or 13.2V connector of Main Board
2. Measure the 13.2V input voltage supplied from Power Board
(If there is no input voltage, remove and check the connector)
3.Connect the tester RX1 to the speaker terminal and if you hear the Chik Chik sound when you touch the
GND and output terminal, the speaker is normal.
Standard Repair Process Detail Technical Manual
Voltage and speaker checking method
when there is no audio
C. Audio error_No audio/Normal video
A22
Established
date
Revised
date
Error
symptom
Content
A22
①
②
③
1 SPK_R-FT
2 SPK_R+FT
3 SPK_L-FT
4 SPK_L+FT
Copyright © 2018 LG Electronics Inc. All rights reserved.
Only for training and service purposes.
To Next Page
