- 16 -
Copyright © LG Electronics Inc. All rights reserved.
Only for training and service purposes.

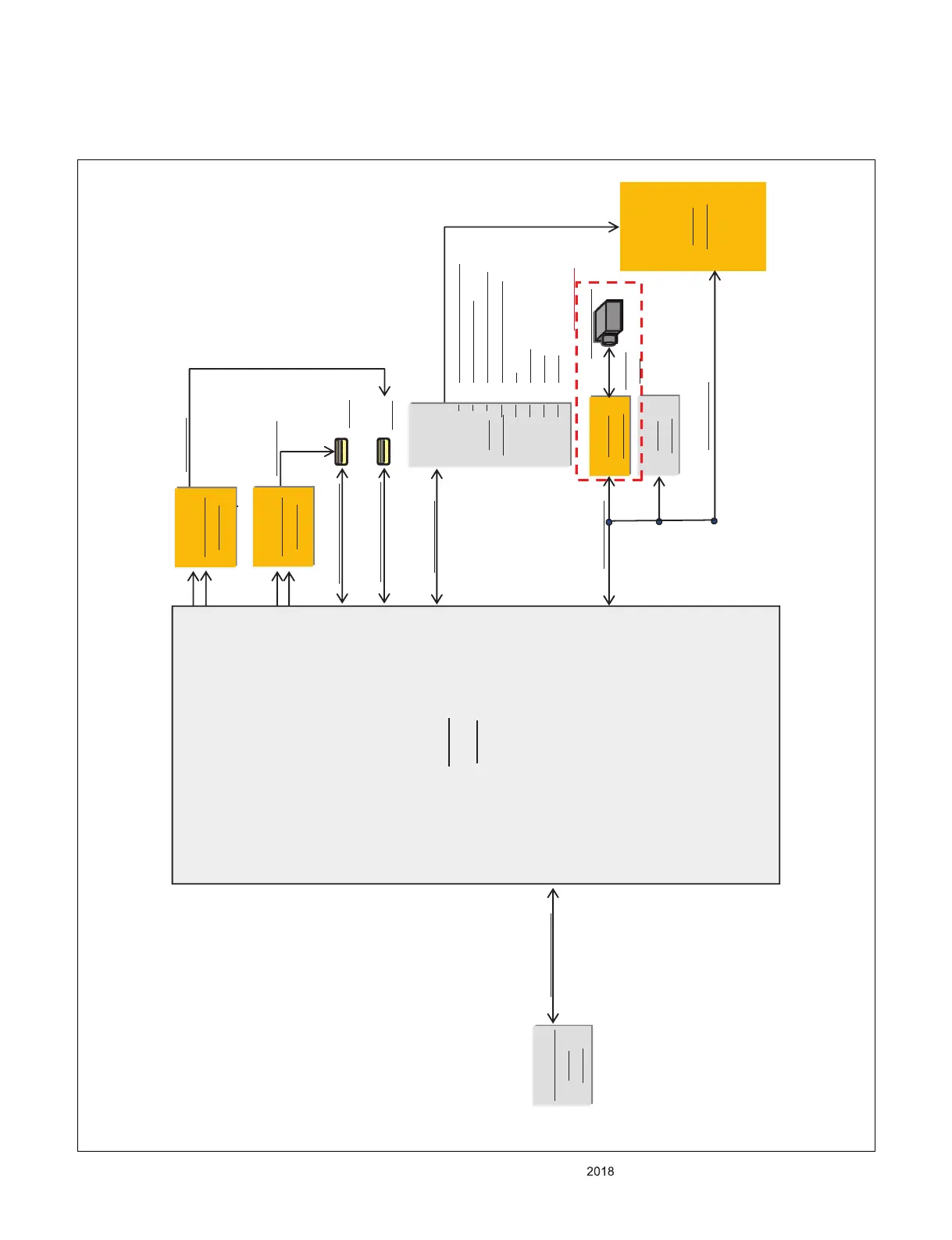

RS232C
(IC7200)
WIFI_DM / DP
SOC_RX / TX
USB2.0_2_DM / DP
USB3
DEBUG_RX / TX
Main
USB2
USB2.0_3_DM / DP
MICOM
(IC3000)
Wafer
(P200)
Wafer
(P4000)
DEBUG UART
Wafer
(P201)
5
7
9
10
15
16
19
20
SOC_RX / TX
DCDC OCP
(IC4501)
+5V_USB3
+5V_USB3
WOL/WIFI_POWER_ON
COMBO_RESET
BT_WAKEUP_DEVICE
BT_WAKEUP_HOST
IR
LED_R
KEY2
KEY1
DCDC OCP
(IC4700)
DOUT1
RIN1
PHONE JACK
US Only
IC
7. USB / WIFI / M-REMOTE / UART(Debug)
