`15Y OLED(EG96,EF95,EG92,EG93,EG94) Power Board Diagnostic method (1)

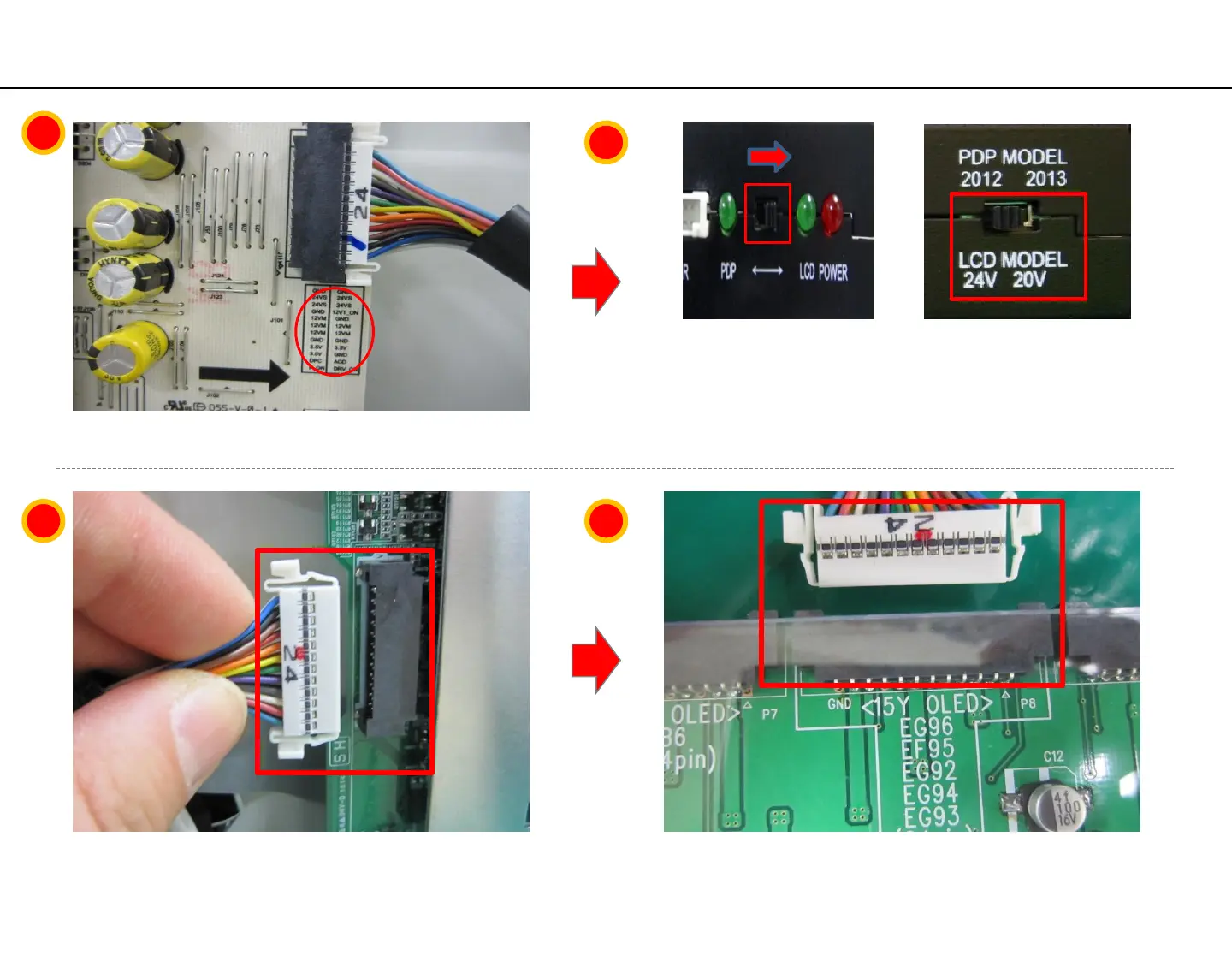

▶ Disconnect the Main Board 24Pin Power Cable connector.
▶ Connect the 24Pin Power Cable connector to the Muitl
Gender JIG 24Pin connector
3
1
2
▶ Check power board voltage.
▶ Switch the product S/W in JIG to LCD.
▶ LCD MODEL Check the power voltage
and switch(24V) to the correct voltage.
▶ Fix the LCD MODEL switch to 24V.(Smart JIG)
4
A30 (6/19)
Copyright © 2018 LG Electronics Inc. All rights reserved.
Only for training and service purposes.
