LG 55UK6500AUA Service Manual

- 17 -
Copyright © LG Electronics Inc. All rights reserved.
Only for training and service purposes.
I2C_SDA6
EPI PMIC
P7100
Vx1 51P
I2C_SCL6
1.8k Ω
I2C_SDA_1
I2C_SCL_1
Main IC
1.8k Ω
+3.3V_NOR
1.8k Ω
1.8k Ω
+3.3V_ST
MICOM
I2C_SDA4
I2C_SCL4
NVRAM
AMP
I2C_SDA2
I2C_SCL2
LNB
Tuner
1.8 k Ω
1.8 k Ω
+3.3V_NOR
1.8k Ω
1.8k Ω
+3.3V_NOR
33 Ω
33 Ω
TCON_I2C_EN
33 Ω
33 Ω
100Ω
33 Ω
EPI / CEDS only
Vx1 only

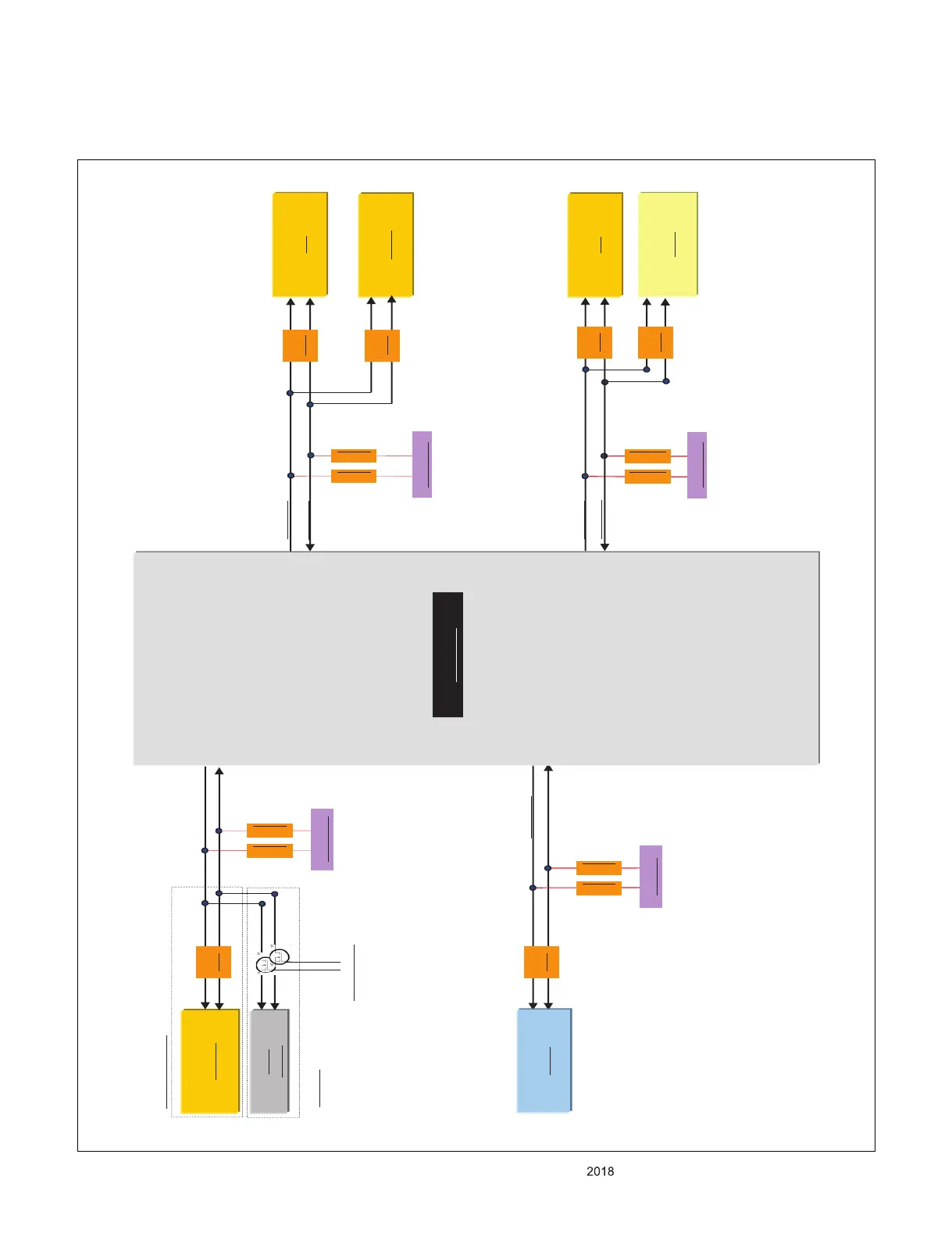

8. I2C Map
