LG 70UL3E-T Installation Manual

ENGLISH
27

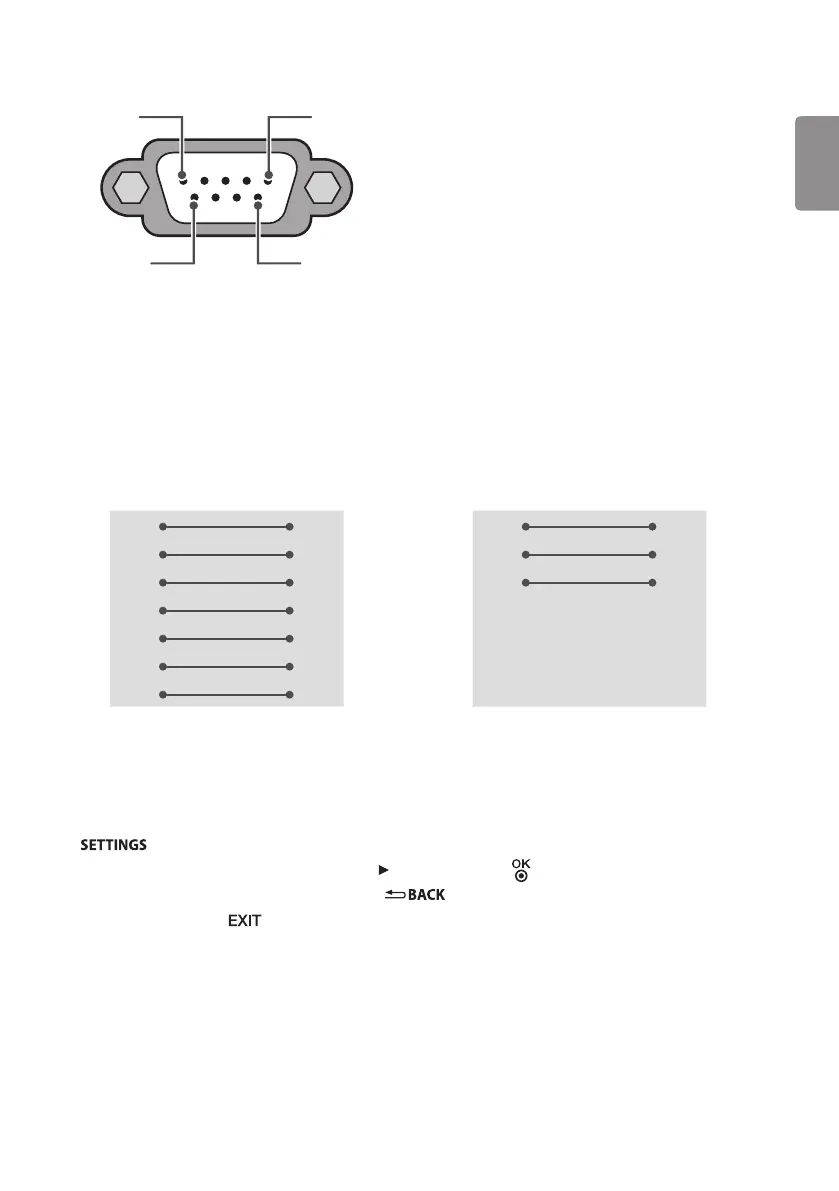

Connector type : D-Sub 9-pin male
1
6
5
9
RS-232C
(Serial port)
RS-232C congurations
7-Wire Congurations
(Standard RS-232C cable)
3-Wire Congurations
(Not standard)
PC Signage
RXD 2 3 TXD
TXD 3 2 RXD
GND 5 5 GND
DTR 4 6 DTR
DSR 6 4 DSR
RTS 7 8 RTS
CTS 8 7 CTS
D-Sub 9 D-Sub 9
PC Signage
RXD 2 3 TXD
TXD 3 2 RXD
GND 5 5 GND
DTR 4 6 DTR
DSR 6 4 DSR
RTS 7 8 RTS
CTS 8 7 CTS
D-Sub 9 D-Sub 9
Set ID
For Set ID number, see “Real data mapping (Hexadecimal : Decimal)”.
Press to access the main menus.
Press the Navigation buttons to scroll to (* [General] [Set ID]) and press .
Scroll left or right to select a set ID number and select . The adjustment range is 1-99.
When you are nished, press .
