3.11.8. Audio and Sound
3.11.8.1. Overview of Audio & Sound path
LGE Internal Use Only
Copyright © 2007 LG Electronics. Inc. All right reserved.
Only for training and service purposes
3. TECHNICAL BRIEF
- 65 -

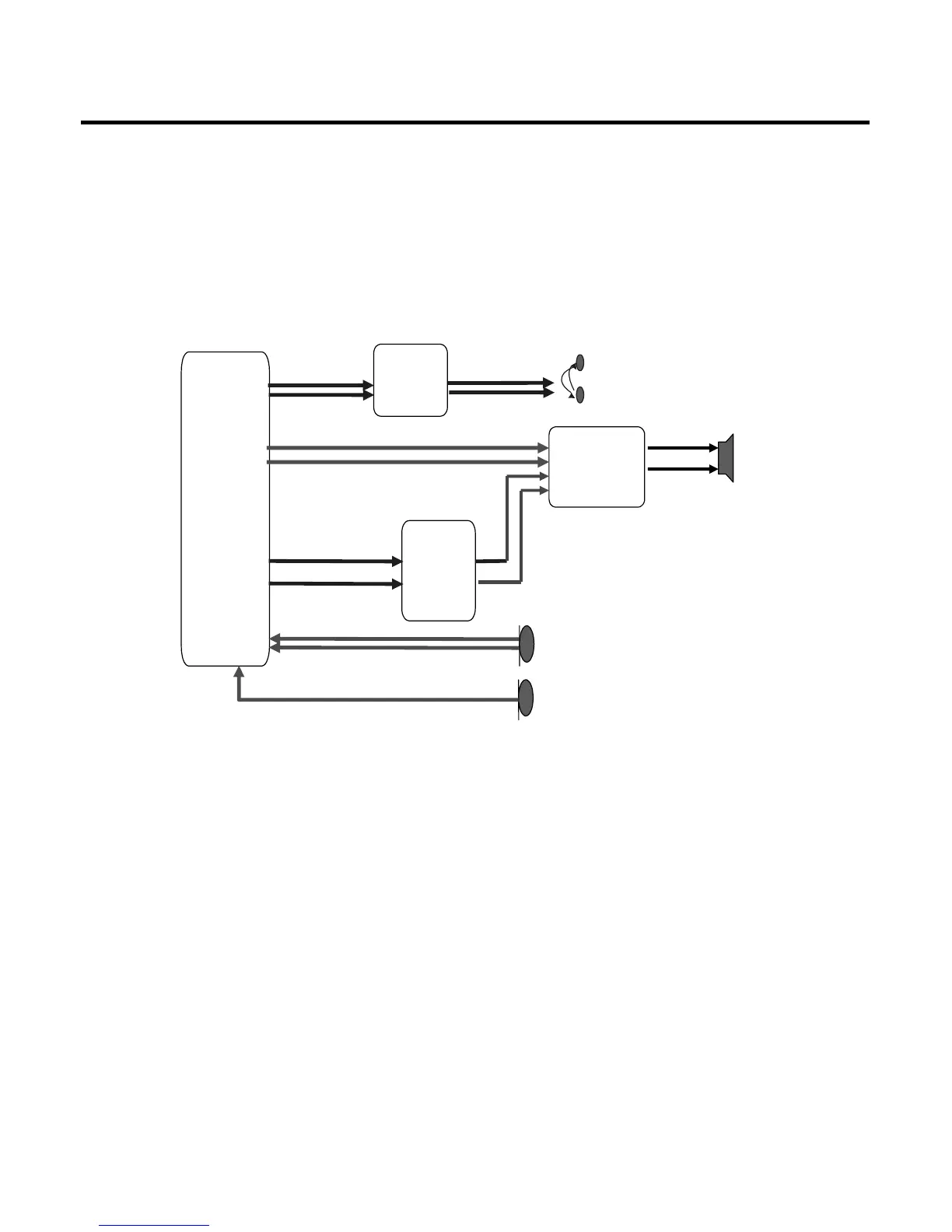

[Figure1.30] Audio Path Block Diagram
MSM7200
(U100-1)
SPK
AMP
(U401)
Head_Set
Loud Speaker
MIC
Head_set MIC
Receiver and
Analog
switch
(U400)
Headset
AMP
(U402)
