EXTERNAL EQUIPMENT SETUP

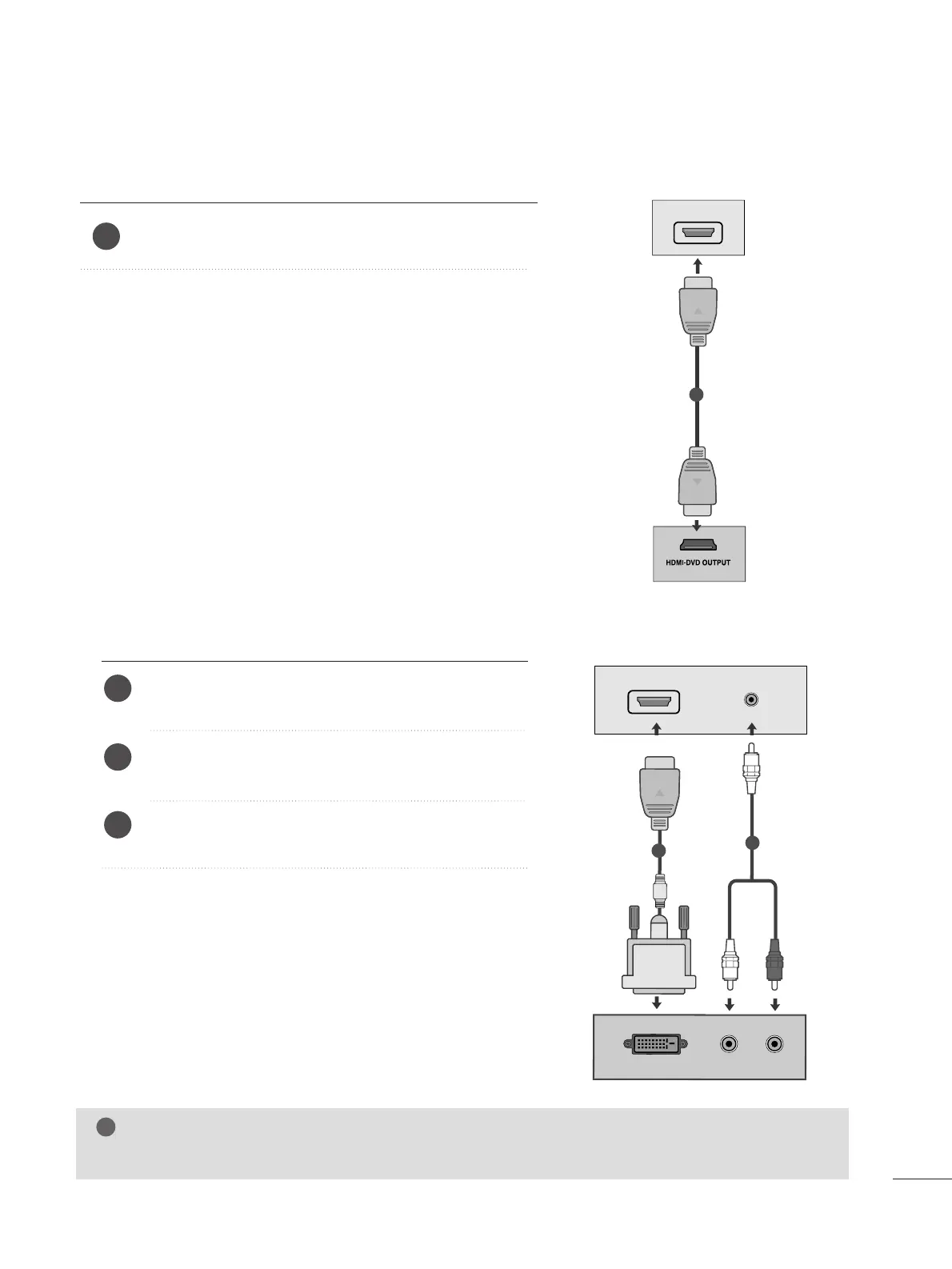

When connecting with a HDMI
Connect the HDMI output of the digital set-top box to the
HHDDMMII IINN
jack on the set.
1
Connect the digital set-top box to
HHDDMMII IINN
jack on
the set.
Connect the audio output of the digital set-top box to
the
AAUUDDIIOO IINN ((RRGGBB//DDVVII))
jack on the set.
Turn on the digital set-top box.
(
Refer to the owner’s
manual for the digital set-top box.
)
2
3
1
When connecting with a HDMI to DVI cable
NOTE
!
G HDMI Input does not support PC mode. If it is connected PC, the screen may not be displayed properly.
HDMI IN
AV 1 AV 2
1
AV 1 AV 2
DVI OUTPUT
AUDIO
RL
AUDIO IN
(RGB/DVI)
HDMI IN
1
2

LG M197WDP Specifications

General

Vertical scan range	56 - 75 Hz
Horizontal scan range	30 - 83 kHz
Annual energy consumption	44.8 kWh
Display diagonal	19 \
Display brightness	300 cd/m²
Display resolution	1366 x 768 pixels
Display technology	LCD
Native aspect ratio	16:10
Viewing angle, vertical	170 °
Contrast ratio (dynamic)	20000:1
Contrast ratio (typical)	1000:1
Viewing angle, horizontal	160 °
SCART ports quantity	1
Product color	Black
LED indicators	Stand-by
RMS rated power	6 W

Weight and Dimensions

Depth (without stand)	193.2 mm
Width (without stand)	454.7 mm
Height (without stand)	362.8 mm
Weight (without stand)	3820 g
