EXTERNAL EQUIPMENT SETUP
VCR SETUP
■
To avoid picture noise (interference), leave an adequate distance between the VCR and set.
■
Typically a still picture is shown on the VCR. If a user uses 4:3 picture format for a long time, an afterimage
may remain on the sides of the screen.
OUTPUT
SWITCH
ANT IN
R
S-VIDEO VIDEO
ANT OUT
L
AV 1 AV 2
ANTENNA/
CABLE IN
Wall Jack
Antenna
1
2

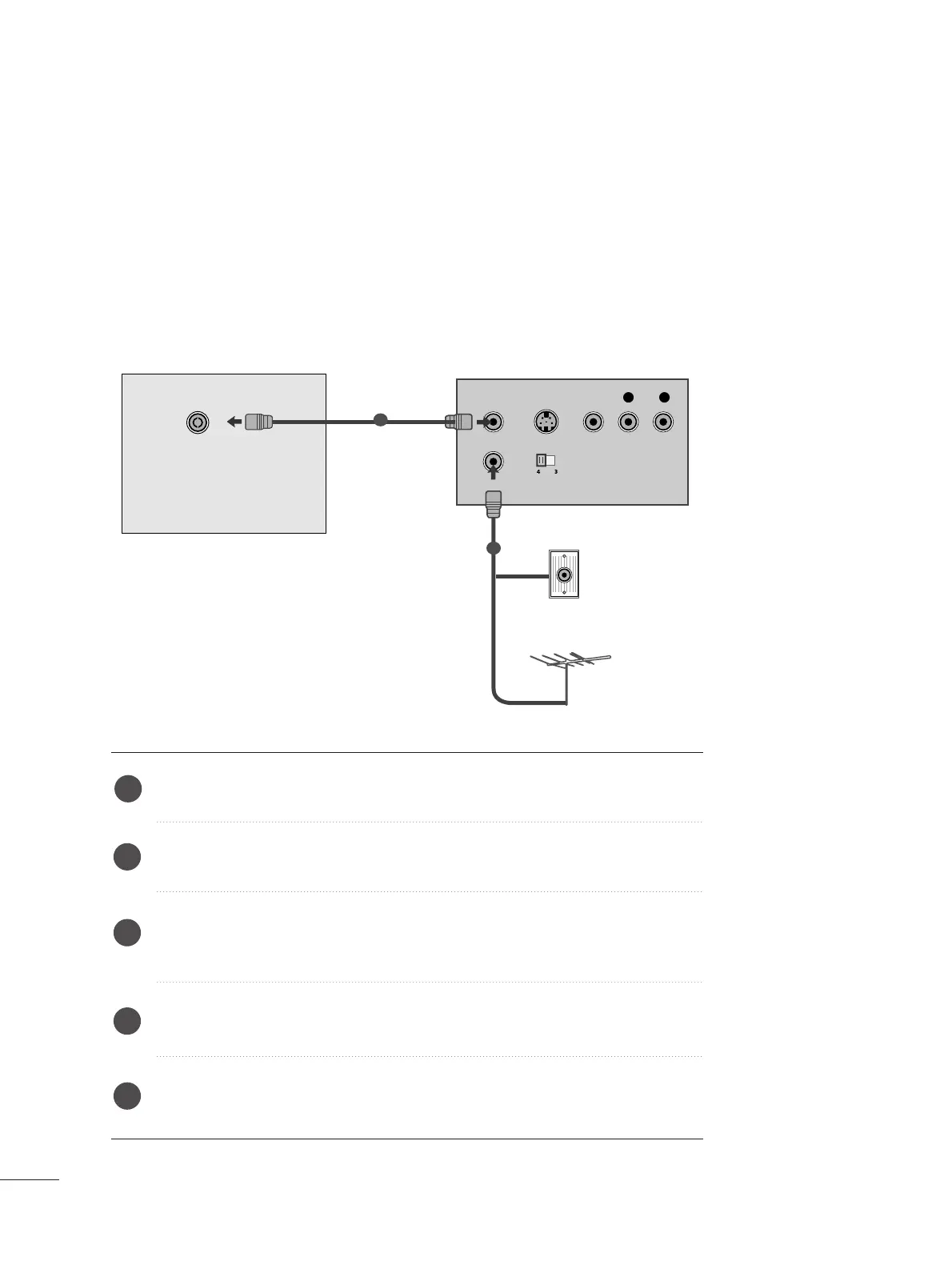

When connecting with an antenna
Connect the RF out socket of the VCR to the aerial socket of the set.
Connect the aerial cable to the RF aerial in socket of the VCR.
Store the VCR channel on a desired programme number using the ‘Manual
programme tuning’ section.
Select the programme number where the VCR channel is stored.
Press the
PPLLAAYY
button on the VCR.
1
2
3
4
5

LG M197WDP Specifications

General

Vertical scan range	56 - 75 Hz
Horizontal scan range	30 - 83 kHz
Annual energy consumption	44.8 kWh
Display diagonal	19 \
Display brightness	300 cd/m²
Display resolution	1366 x 768 pixels
Display technology	LCD
Native aspect ratio	16:10
Viewing angle, vertical	170 °
Contrast ratio (dynamic)	20000:1
Contrast ratio (typical)	1000:1
Viewing angle, horizontal	160 °
SCART ports quantity	1
Product color	Black
LED indicators	Stand-by
RMS rated power	6 W

Weight and Dimensions

Depth (without stand)	193.2 mm
Width (without stand)	454.7 mm
Height (without stand)	362.8 mm
Weight (without stand)	3820 g
