PREPARATION

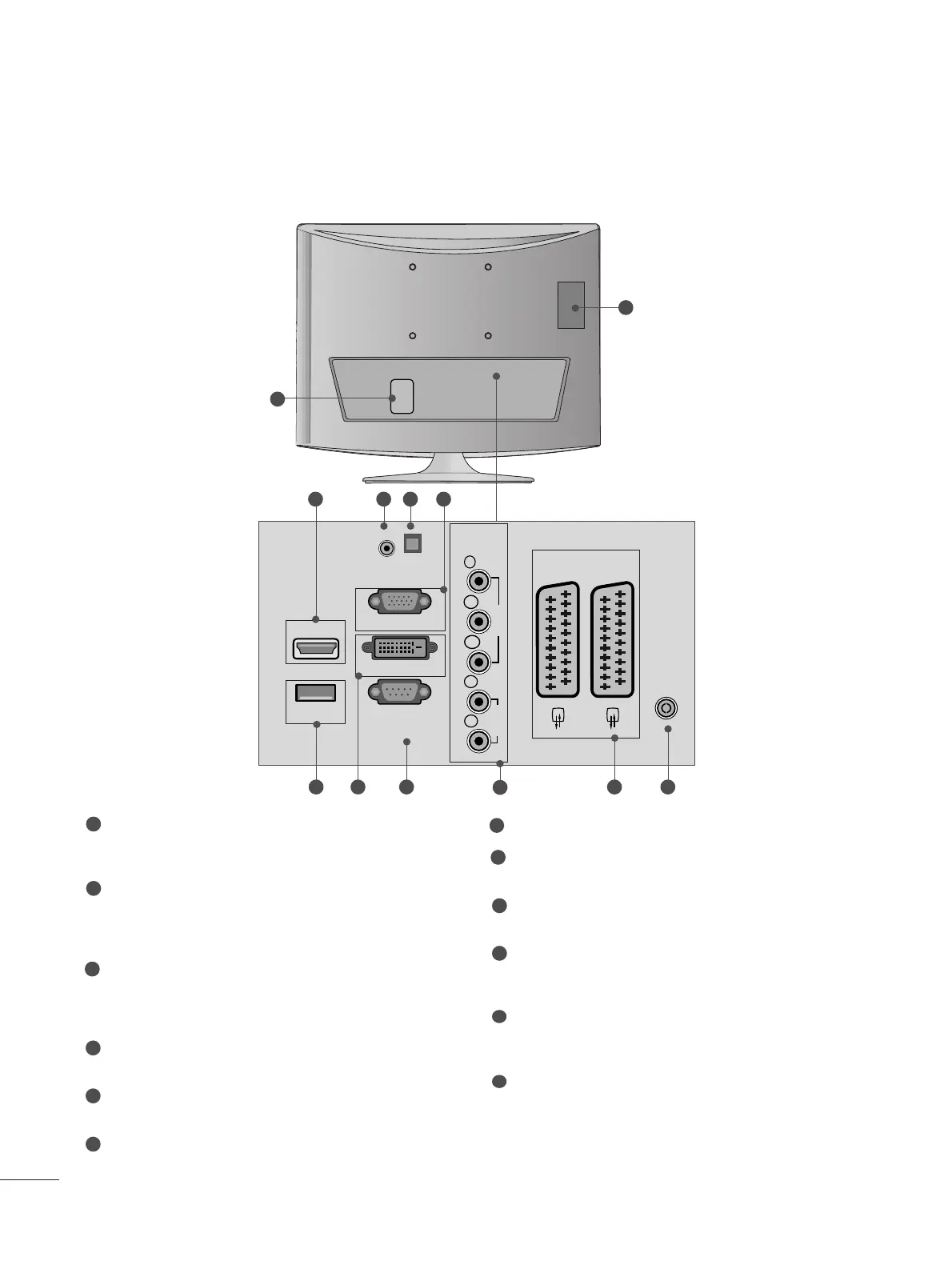

BACK PANEL INFORMATION
■
This is a simplified representation of the back panel. The image shown may be somewhat different from your set.
<M197WDP/M227WDP>
AV 1 AV 2
AC IN
AUDIO IN
(RGB/DVI)
OPTICAL
DIGITAL
AUDIO OUT
VIDEO
COMPONENT
IN
AUDIO
Y
P B
P R
L
R
RS-232C IN
(CONTROL & SERVICE)
USB IN
RGB IN (PC)
DVI-D (PC)
HDMI IN
AV 1
V 1
AV 2
V 2
AC IN
ANTENNA/
CABLE IN
3
9
10
2
1
87 1211
64 5
PPCCMMCCIIAA ((PPeerrssoonnaall CCoommppuutteerr MMeemmoorryy CCaarrdd
IInntteerrnnaattiioonnaall AAssssoocciiaattiioonn)) CCaarrdd SSlloott
This feature is not available in all countries.
PPoowweerr CCoorrdd SSoocckkeett
This set operates on AC power. The voltage is indicated
on the Specifications page. Never attempt to operate
the set on DC power.
HHDDMMII IInnppuutt((NNoott SSuuppppoorrtt PPCC))
Connect a HDMI signal to HDMI IN.
Or DVI (VIDEO) signal to HDMI IN with DVI to HDMI
cable.
RRGGBB//DDVVII AAuuddiioo IInnppuutt
Connect the audio from a PC.
OOppttiiccaall DDiiggiittaall AAuuddiioo OOuutt
Connect digital audio from various types of eguipment.
RRGGBB IINNPPUUTT ((PPCC))
Connect the output from a PC.
UUSSBB IINN
DDVVII--DD IInnppuutt
Connect the output from a PC.
RRSS--223322CC IINN ((CCOONNTTRROOLL && SSEERRVVIICCEE)) PPOORRTT
Connect to the RS-232C port on a PC.
CCoommppoonneenntt IInnppuutt
Connect a component video/audio device to these
jacks.
EEuurroo SSccaarrtt SSoocckkeett ((AAVV11//AAVV22))
Connect scart socket input or output from an external
device to these jacks.
AAnntteennnnaa IInnppuutt
Connect over-the-air signals to this jack.
1
2
3
4
5
6
7
8
9
10
11
12

LG M197WDP Specifications

General

Vertical scan range	56 - 75 Hz
Horizontal scan range	30 - 83 kHz
Annual energy consumption	44.8 kWh
Display diagonal	19 \
Display brightness	300 cd/m²
Display resolution	1366 x 768 pixels
Display technology	LCD
Native aspect ratio	16:10
Viewing angle, vertical	170 °
Contrast ratio (dynamic)	20000:1
Contrast ratio (typical)	1000:1
Viewing angle, horizontal	160 °
SCART ports quantity	1
Product color	Black
LED indicators	Stand-by
RMS rated power	6 W

Weight and Dimensions

Depth (without stand)	193.2 mm
Width (without stand)	454.7 mm
Height (without stand)	362.8 mm
Weight (without stand)	3820 g
